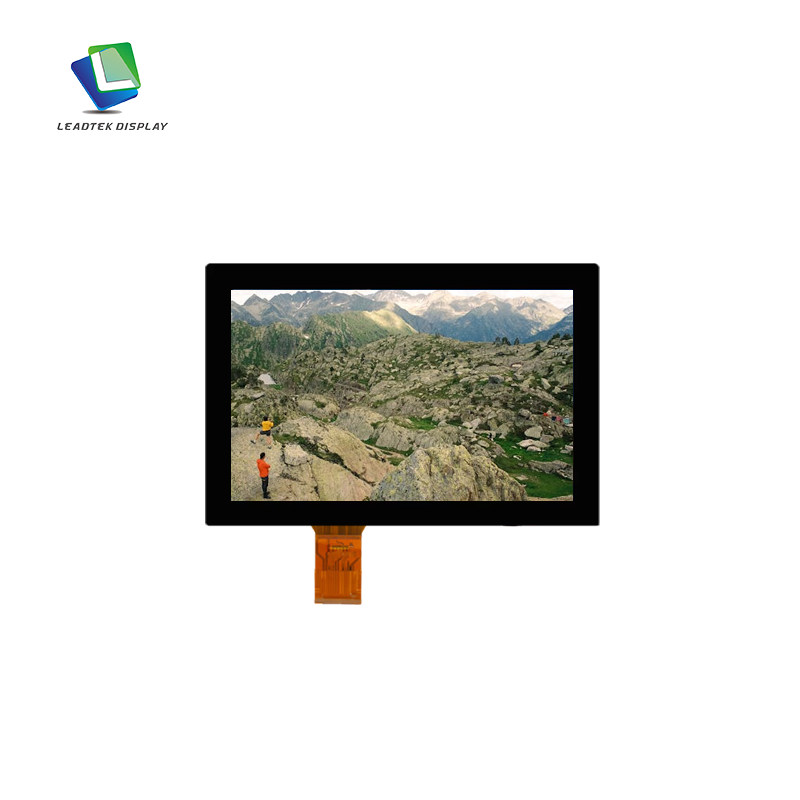

10.1" 1280*800 TFT LCD Display with Touch Screen
This LTK101FTBCT50-V0 IPS LCD module features a high-resolution display of 1280*800 pixels and operates via LVDS interface with a brightness of 250 cd/m². The active area measures 216.96*135.60 mm, and the overall dimensions are248.00*165.00*4.80mm. Equipped with a capacitive touch panel (CTP), it functions reliably in temperatures ranging from 0℃ to +50℃, with storage conditions from -20℃ to +60℃.It is designed for smart industrial applications to ensure clear, high-quality visuals and stable performance in a variety of industrial environments
- Product Details
| Size (inch) | 10.1 |
| Part Number. | LTK101FTBCT50-V0 |
| Display Mode | IPS |
| Resolution | 1280*800 |
| Interface | LVDS |
| Luminance (cd/m²) | 250 |
| Active Area (mm) | 216.96*135.60 |

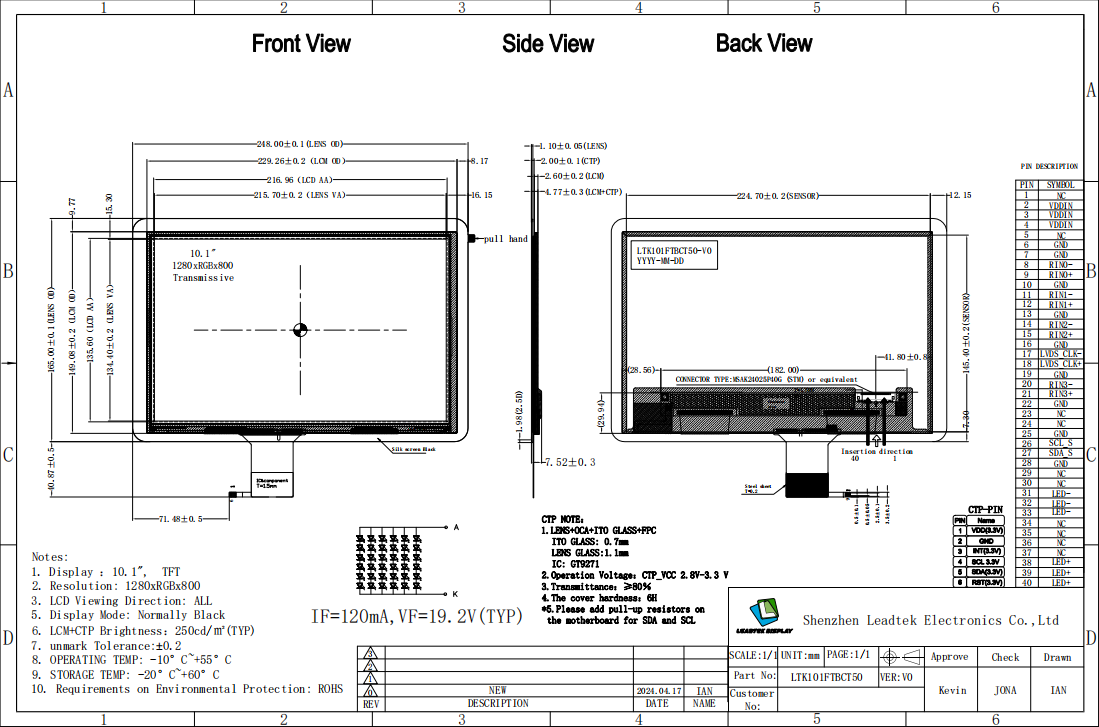

| Outline Dimension (mm) | 248.00*165.00*4.80 |
| Touch Screen | CTP |
|
CTP Type |
GG |
|
CTP Driver IC |
GT9271 |
|
CTP Interface |
IIC |
| Operating Temp | -0~+50℃ |
| Storage Temp | -20~+60℃ |
