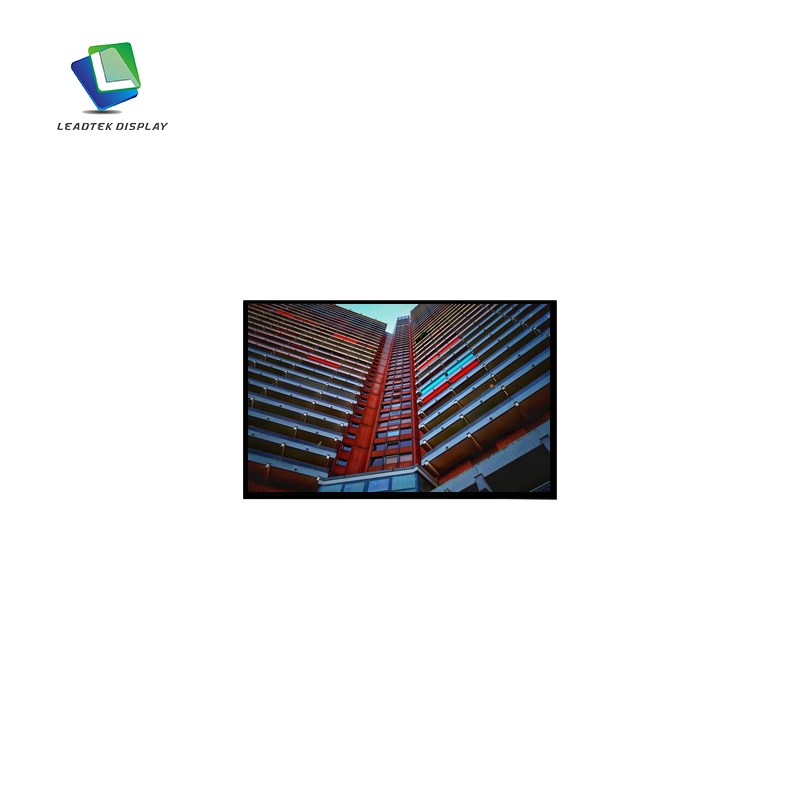

10.1" 1280*800 IPS TFT Color Module for Industrial Applications
Introducing a high-performance 10.1" IPS LCD module designed for rugged industrial applications. The module has a resolution of 1280*800 pixels, an LVDS interface, provides 300.0 cd/m² brightness, operates reliably in temperatures from -0℃ to +50℃, and has a storage capability of -20℃ to +60℃. The module ensures clear, reliable performance in demanding industrial environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 10.1 |
| Part Number. | LTK101FTBLM50-V0 |
| Display Mode | IPS |
| Resolution | 1280*800 |
| Interface | LVDS |
| Luminance (cd/m²) | 300 |
| Active Area (mm) | 216.96*135.60 |
| Outline Dimension (mm) | 229.26*149.08*2.60 |
| Touch Screen | CTP |
| Operating Temp | -0~+50℃ |
| Storage Temp | -20~+60℃ |

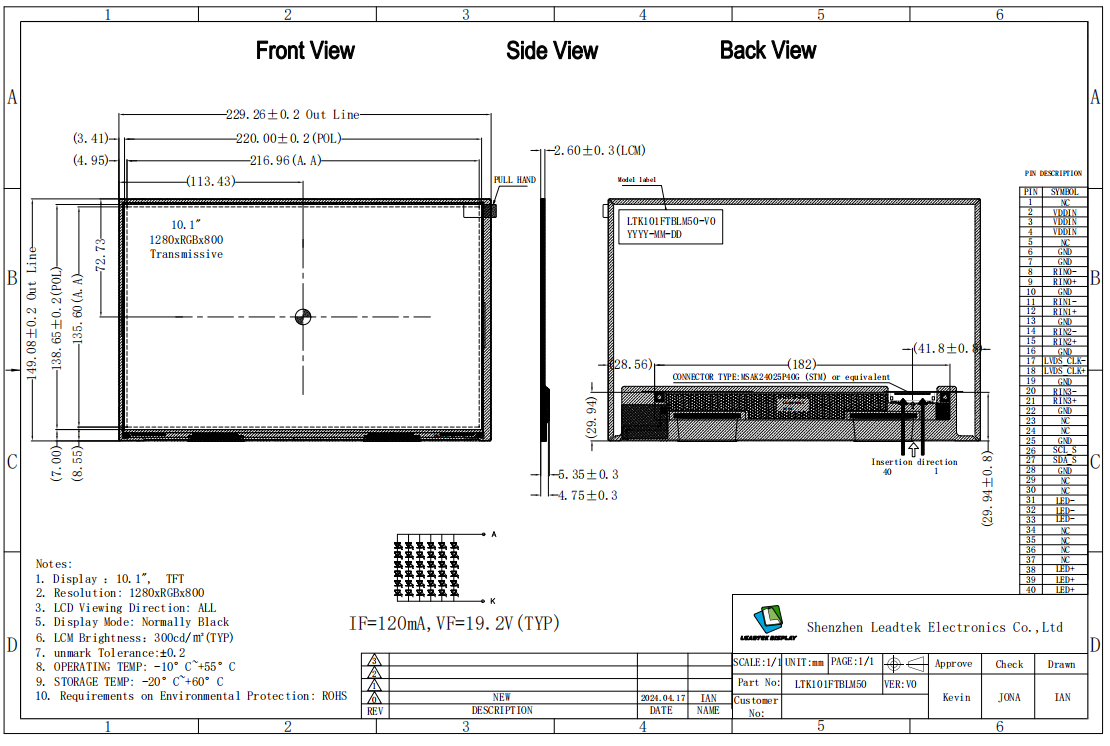

PRODUCT DRAWING
