10.1 inch 1024*600 resolution TN normally white RGB interface lcd module
LTK101H5029W is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 10.1 (16:9) inch diagonally measured active display area with (1024 horizontal by600vertical pixel) resolution.（C）
- Product Details
|
Model number: |
LTK101H5029W |
|
Display mode: |
Normally white |
|
Resolution: |
1024 RGB (H) x 600 (V) |
|
Interface: |
RGB |
|

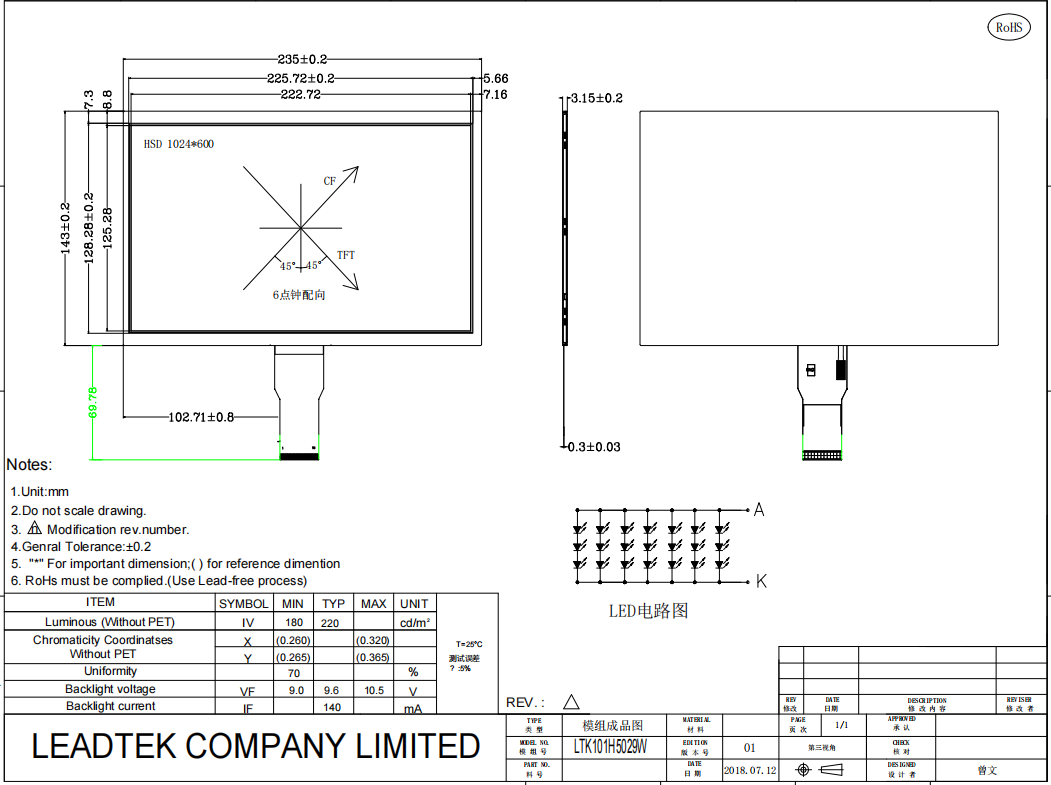

Outline dimensions: |
235 (H) x 143 (V) x3.15 (D) |
|
Active area: |
222.72 (H) x 125.28 (V) |
|
Operating Temperature: |
-10～60°C |
|
Storage Temperature: |
-20～70 °C |
|
Brightness: |
220 |
