10.1 INCH 1440*1920 Reflective LCD Display

we launch our latest 10.13" TFT LCD sunlight-readable display designed for outstanding outdoor performance. The screen features a reflective display mode, providing clear, vivid visuals even in direct sunlight.
With a wide 60/60/60/60 viewing angle, it ensures crisp images and consistent color accuracy. The display operates reliably in temperatures from -20°C to +60°C and consumes only 600 mW of power, making it energy-efficient and durable. This display is ideal for outdoor tablet and parking payment system applications.

Inquire Now

BackPrevious Next

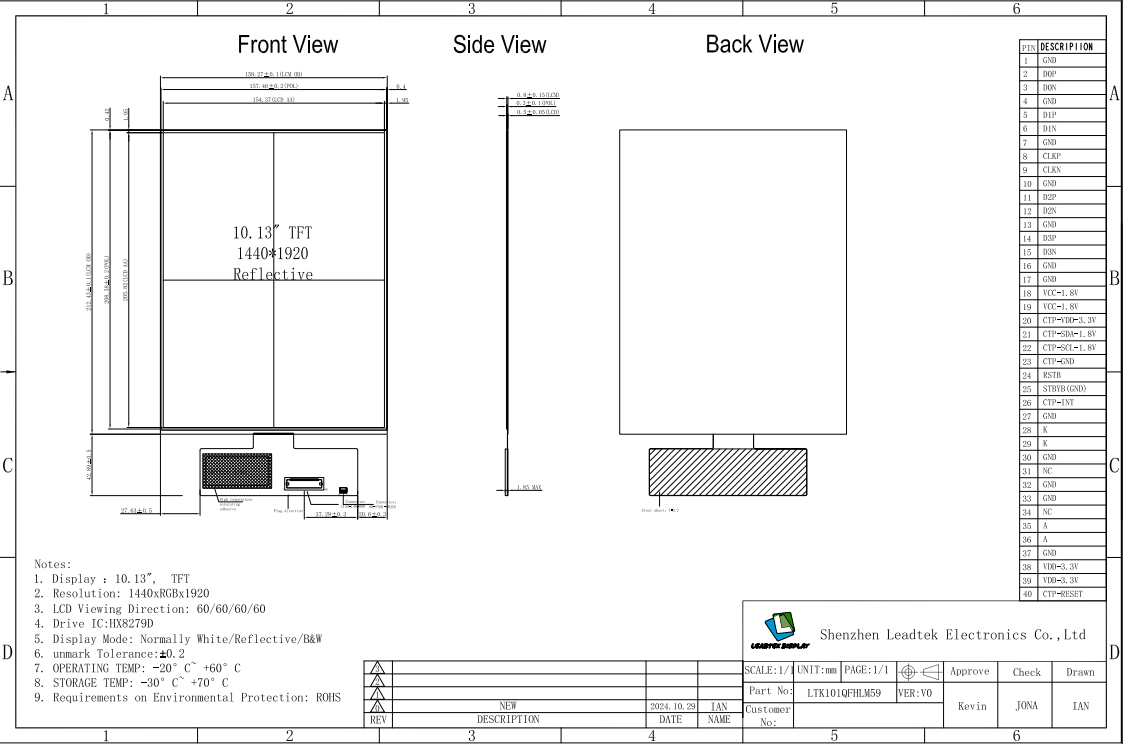

Product Details

Size(inch)	10.13
Part Number.	LTK101QFHLM59-V0
Display Type	Reflective
Resolution	1440*1920
Interface	MIPI 4 Lanes
Color	B/W, 2 color
Viewing Direction	60/60/60/60
Reflectivity	43.05%
Reflection Contrast	15:1
Power Consumption	600 mW
Driver IC	HX8279D
Active Area (mm)	154.37*205.82
CTP+LCM Module Size (mm)	158.27212.430.80
Operating Temp	-20~+60℃
Storage Temp	-30~+70℃
