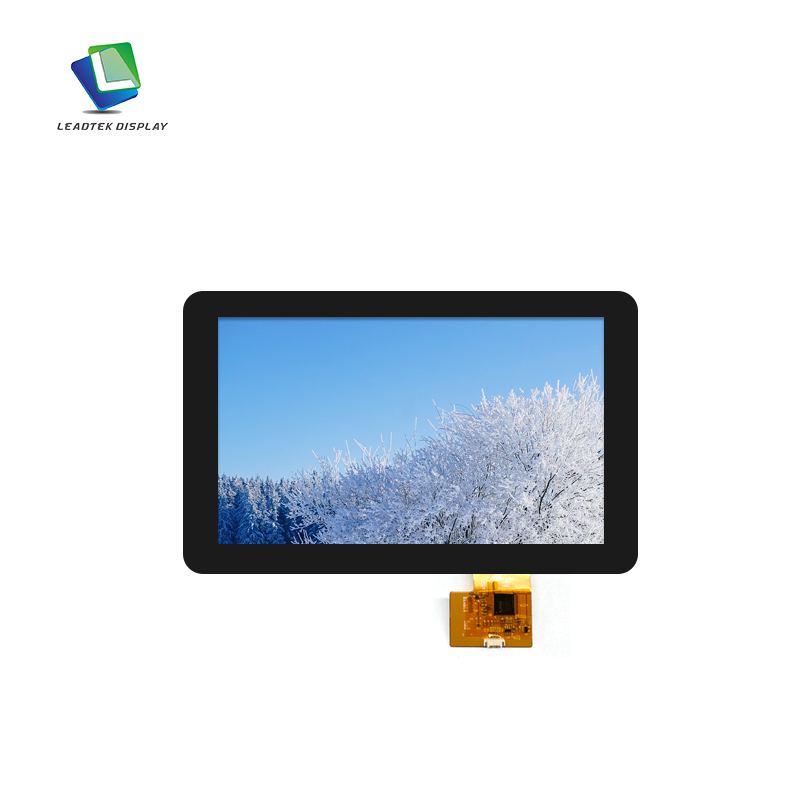

10.1 inch 1920*1200 LVDS IPS Stadnard Color Display
10.1-inch IPS Standard Color Display, model LTK101WUBCT42-V0. Features 19201200 resolution with LVDS interface. Landscape shape with an active area of 216.81135.50 mm and overall dimensions of 257.06170.206.50 mm. Ideal for Smart Transportation applications. Brightness at 800 cd/m².
- Product Details
PRODUCT PARAMETERS:
| Moudle no | LTK101WUBCT42-V0 |
| Resolution | 1920*1200 |
| Viewing Angle | IPS |
| Active Aera (mm) | 216.81*135.50 |
| TPM V.A (mm) | 217.56*136.20 |
| Outline Dimension (mm) | 229.46*149.10*4.40 |
| TPM O.D (mm) | 257.06*170.20*6.50 |
| TP Interface | USB |
| TPM Luminance | 800 |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |

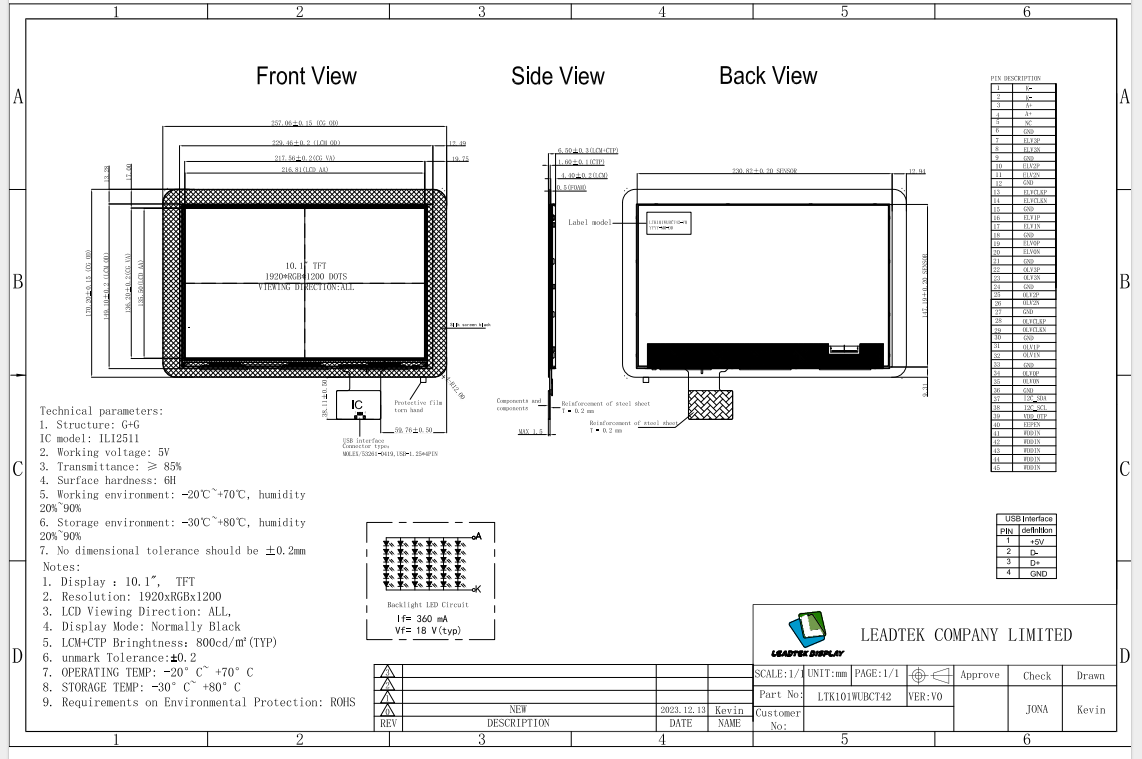

PRODUCT Drawing:
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
