10.1 inch FHD 1200*1920 resolution mipi interface TFT LCD display module for smart mirror
LTK101FHNLM19-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a Home control system device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 10.1 inch diagonally measured active display area with 1200 horizontal by 1920 vertical pixel) resolution. (Edward)
- Product Details
Product Parameters:
| Model number |
LTK101FHNLM19-V0 |
| Viewing Direction | IPS |
| Outline dimension(mm) |
143.0*228.6*2.65 |
| LCD AA(mm) |
135.36*216.57 |
| Interface | MIPI |
| Brightness | 350 |
|
Operating Temperature |
-20~60 degree |
| Storage Temperature | -30~70 degree |

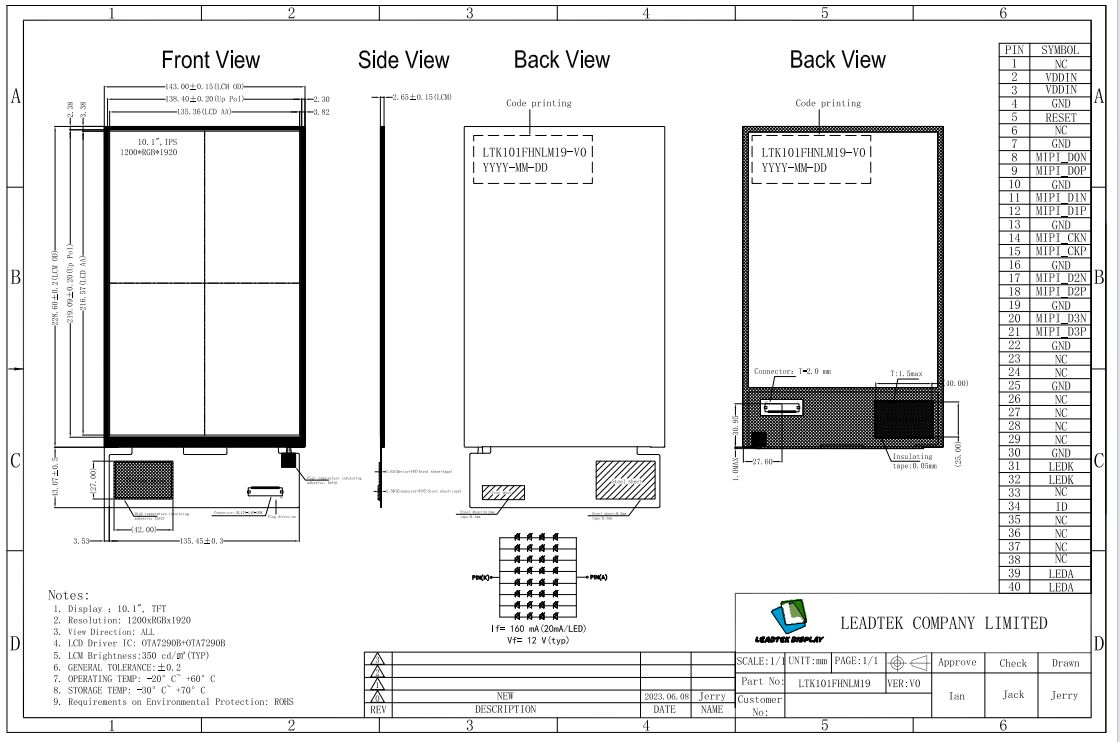

Product Drawing
