High-Brightness 10.1" IPS LCD Module for Industrial Applications
This LTK101FTNCT54-V0 IPS LCD module features a high-resolution display of 1024600 pixels and operates via LVDS interface with a luminance of 1000 cd/m². The active area measures 222.72125.28 mm, and the overall dimensions are 257.00159.607.50 mm. Equipped with a capacitive touch panel (CTP), it is designed to function reliably in temperatures ranging from -30℃ to +80℃, with storage conditions also from -30℃ to +80℃. Ideal for smart industrial environments, it provides clear, high-quality visuals and dependable performance in diverse conditions.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 10.1 |
| Part Number. | LTK101FTNCT54-V0 |
| Display Mode | IPS |
| Resolution | 1024*600 |
| Interface | LVDS |
| Luminance (cd/m²) | 1000 |
| Active Area (mm) | 222.72*125.28 |
| Outline Dimension (mm) | 257.00*159.60*7.50 |
| Touch Screen | CTP |
| Operating Temp | -30~+80℃ |
| Storage Temp | -30~+80℃ |

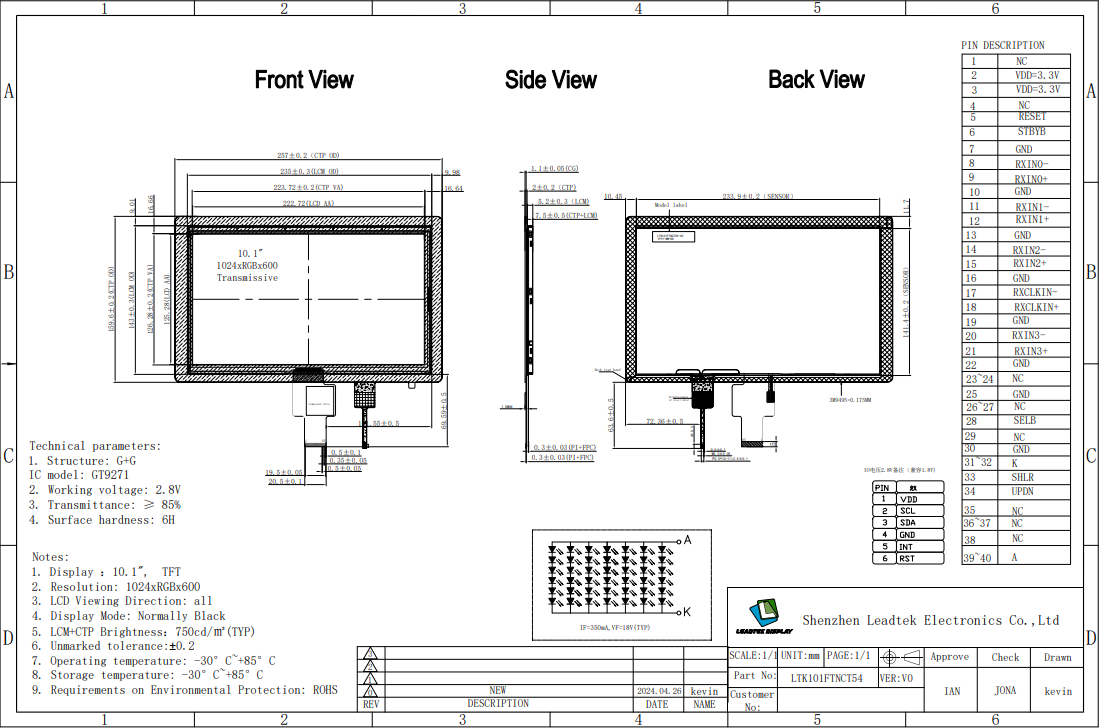

PRODUCT DRAWING
