10.1 inch TFT display module, 1200X1920 resolution,MIPI interface, 600cd/㎡

LTK101FHNLM16-V1 is a 10.1 inch stripe TFT display with normally black mode and 1200xRGBx1920 resolution. It has a MIPI 4-lane interface and a brightness of 600. The active area size is 135.36 (W) x 216.57 (L) mm and the overall dimensions are 143.00(W) x228.60(L) x2.65(H) mm. It is designed for smart transportation applications.

Inquire Now

BackPrevious

Product Details

Size(inch)	10.1
Mode	LTK101FHNLM16-V1
Display Mode	IPS
Resolution	1200*1920
Interface	MIPI 4Line
Brightness	600 cd/㎡
Display Colors	16.7M
Active Area(mm)	135.36x216.57

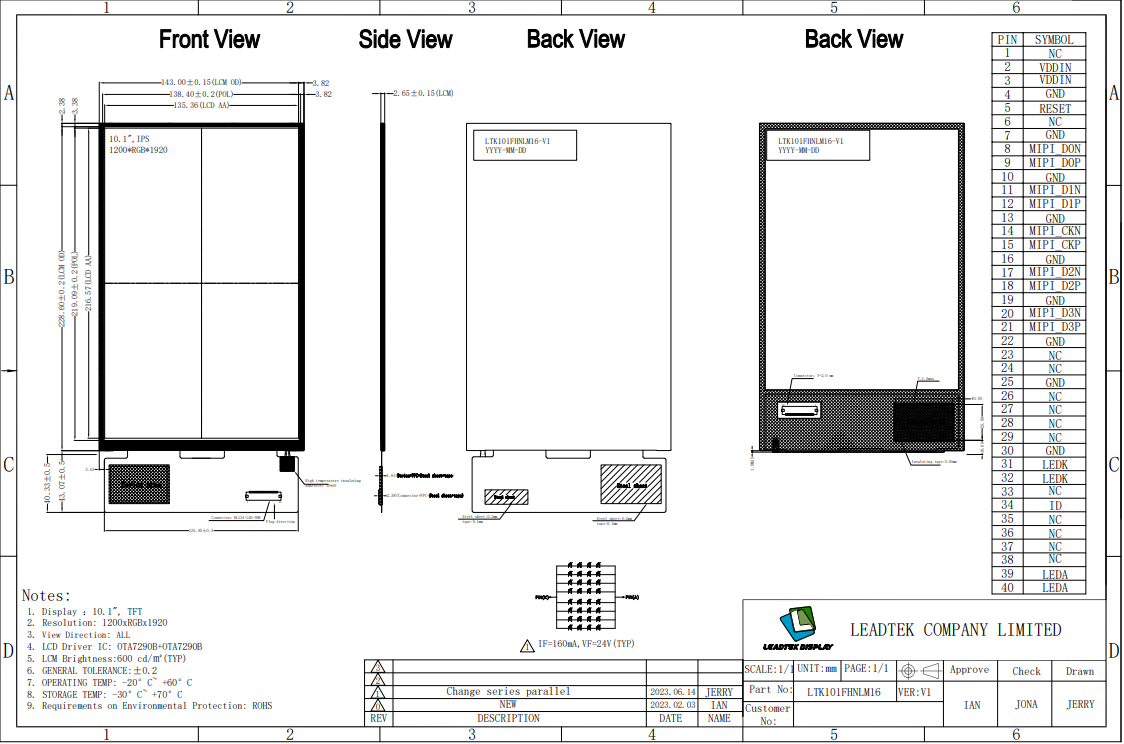

Outline Dimension(mm)	143.00x228.60x2.65
Driver IC	OTA7290B+OTA7290B
Driver IC RAM Size	RAMLESS
Operating Temp	-20~+60℃
Storage Temp	-30~+70℃
