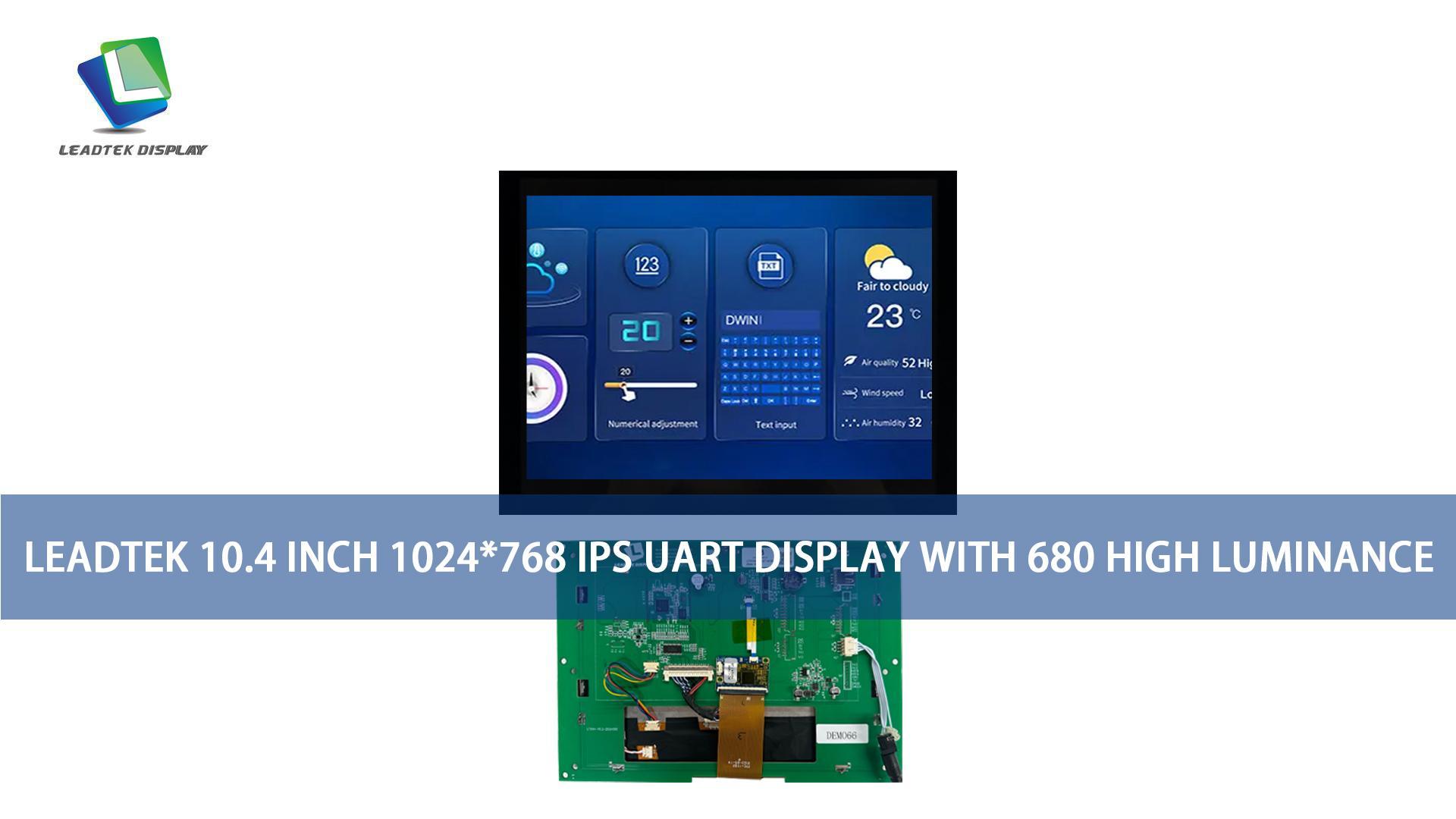

10.4 Inch 1024*768 IPS Smart Display with 680 High Luminance
The 10.4" LTK104XGHUT14-V0 display features a high resolution of 1024x768 and a brightness of 680 cd/m², providing clear visuals and is ideal for smart industrial applications. The display features an IPS panel and a TTL interface to ensure vivid colors and reliable performance. With an operating temperature range of -30°C to +85°C and a storage temperature of -30°C to +85°C, it provides stable performance for industrial applications. Equipped with a capacitive touch screen, the display is powered by a 21V/2A power supply and has a sensitive touch function to enhance the user experience.
- Product Details
|
Size (inch) |
10.4 |
|
Part Number. |
LTK104XGHUT14-V0 |
|
Display Mode |
IPS |
|
Resolution |
1024*768 |
|
Interface(System) |
UART TTL&232&485 |
|
Luminance (cd/m²) |
680 |
|
Active Area (mm) |
211.20*158.40 |
|
Outline Dimension (mm) |
248.60*192.00*12.36 |
|
Touch Screen |
CTP |
|
Power Supply |
21V/2A |
|
Operating Temp |
-30~+85℃ |
|
Storage Temp |
-30~+85℃ |
