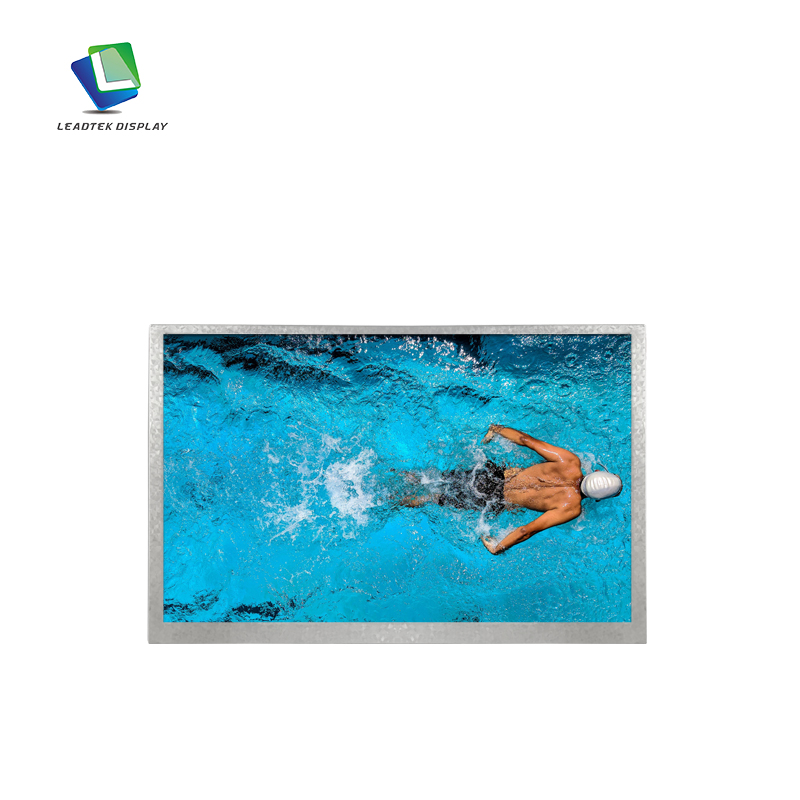

10.4" Display for Smart Industrial Applications
This 10.4" display with a resolution of 1024 x 768 is designed for smart industrial applications. The LVDS interface supports high-speed data transfer, and the screen brightness of 800 cd/m² ensures clear visibility even in bright environments. With an active area of 211.20(H) x 158.40(V) mm and dimensions of 230.00(W) x 173.00(H) x 9.56(T) mm, it fits well in industrial settings. The CTP touch panel enhances user interaction, and the wide operating temperature range of -30°C to +85°C makes it suitable for various industrial conditions.
- Product Details
PRODUCT PARAMETER
Size (inch) | 10.4 |
Part Number. | LTK104XGHLM14-V0 |
Display Mode | IPS |
Resolution | 1024*768 |
Interface | LVDS |
Luminance (cd/m²) | 800 |
Active Area (mm) | 211.20*158.40 |
Outline Dimension (mm) | 230.00*173.00*9.56 |
Touch Screen | CTP |
Operating Temp | -30~+85℃ |
Storage Temp | -30~+85℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
