10.4" 1024x768 IPS Display, 850 cd/m, LVDS Interface
The 10.4-inch LTK104XGNLM17-V0 display delivers a sharp 1024x768 resolution with an IPS panel, ensuring vibrant colors and wide viewing angles. With a high brightness of 850 cd/m², it is ideal for both indoor and outdoor applications. The LVDS interface supports high-speed data transmission, making it suitable for demanding applications. Designed for robust performance, it operates in a wide temperature range of -30°C to +80°C and has a storage range of -30°C to +80°C. The CTP (Capacitive Touch Panel) enhances user interaction, providing a smooth and responsive touch experience. This display is perfect for smart medical applications.
- Product Details
PRODUCT PARAMETER
Size (inch) | 10.4 |
Part Number. | LTK104XGNLM17-V0 |
Display Mode | IPS |
Resolution | 1024*768 |
Interface | LVDS |
Luminance (cd/m²) | 850 |
Active Area (mm) | 210.43*157.82 |
Outline Dimension (mm) | 234.65*173.10*8.72 |
Touch Screen | CTP |
Operating Temp | -30~+80℃ |
Storage Temp | -30~+80℃ |

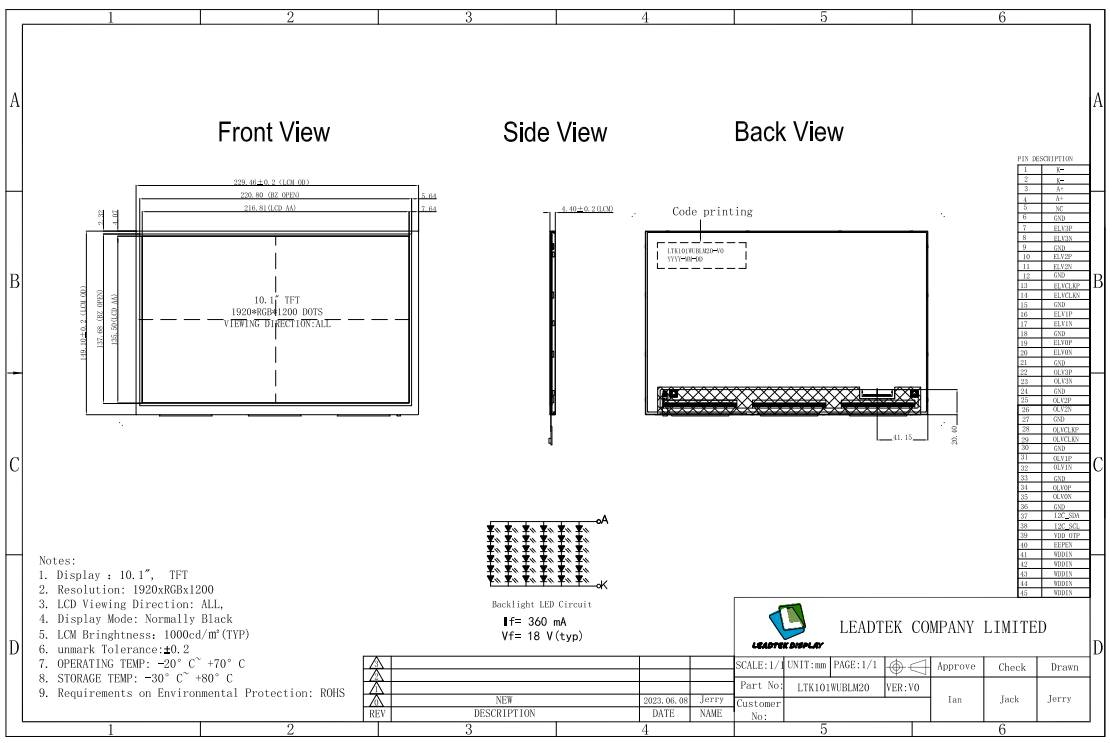

PRODUCT DRAWING
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
