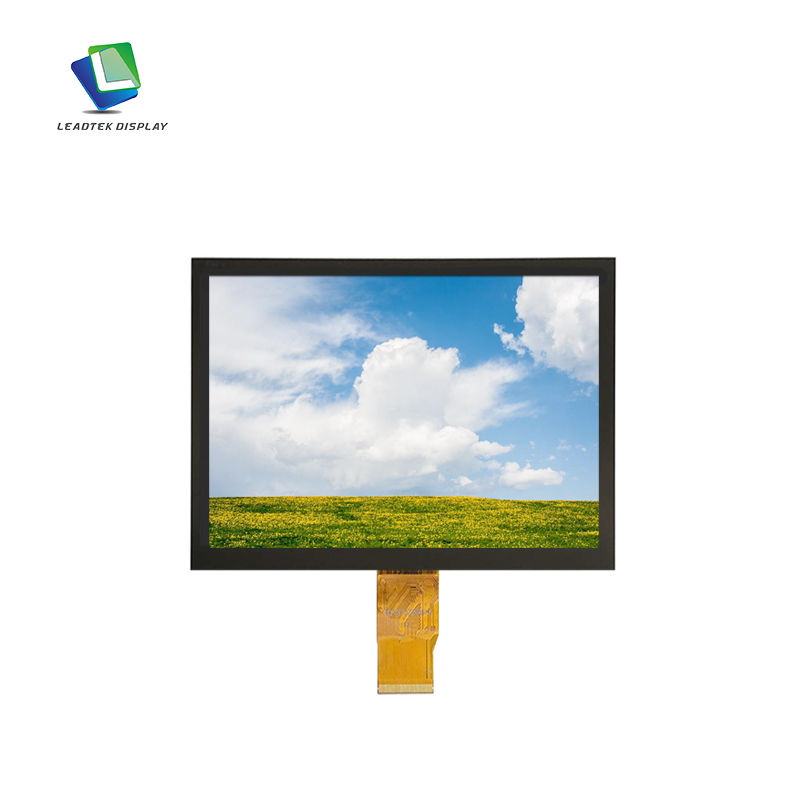

12.1 Inch 1024*768 Rugged Display -Shockproof and Waterproof in Industry
The 12.1-inch LTK121XGHCT15-V0 display features a 1024x768 IPS panel with 680 cd/m² brightness, delivering sharp and vibrant images. Its LVDS interface supports fast data transmission. The display is designed for harsh environments, operating from -30°C to +85°C and storing within the same temperature range, making it suitable for industrial applications. The CTP ensures responsive touch performance for demanding uses.
- Product Details
| Size (inch) | 12.1 |
| Part Number. | LTK121XGHCT15-V0 |
| Display Mode | IPS |
| Resolution | 1024*768 |
| Interface | LVDS |
| Luminance (cd/m²) | 680 |
| Active Area (mm) | 245.76*184.32 |
| Outline Dimension (mm) | 289.30*227.50*10.25 |
| Touch Screen | CTP |
|
CTP Type |
GG |
|
CTP Driver IC |
ILI2511 |
|
CTP Interface |
IIC+USB |
| Operating Temp | -30~+85℃ |
| Storage Temp | -30~+85℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
