12.1'' 1280*800 Resolution TFT LCD display Module with 600 nits

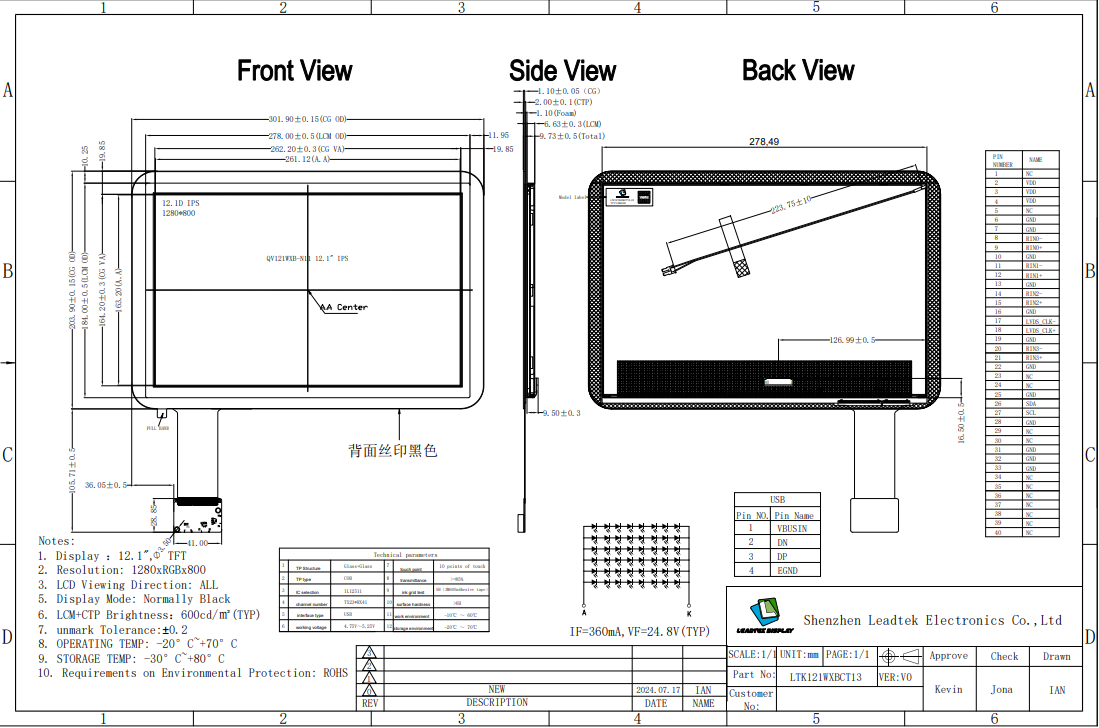

LTK121WXBCT13-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as the display device. This model consists of a TFT LCD panel and a drive circuit. This TFT LCD has an active display area of 12.1 inches measured diagonally with a resolution of (1280 horizontal x 800 vertical pixels). At the same time it has a high brightness of 600nits
- Product Details
|
Module Model |
LTK121WXBCT13-V0 |
|
Display Mode |
IPS |
|
Resolution |
1280*800 |
|
Active Area(mm) |
261.12*163.20 |
|
Outline Dimension(mm) |
301.90*203.90*9.73 |
| Interface | LVDS |
|
Module brightness |
600 |
| Touch screen |
CTP |
|
Operating temperature |
-20~+70℃ |
|
Storage temperature |
-30~+80℃ |
