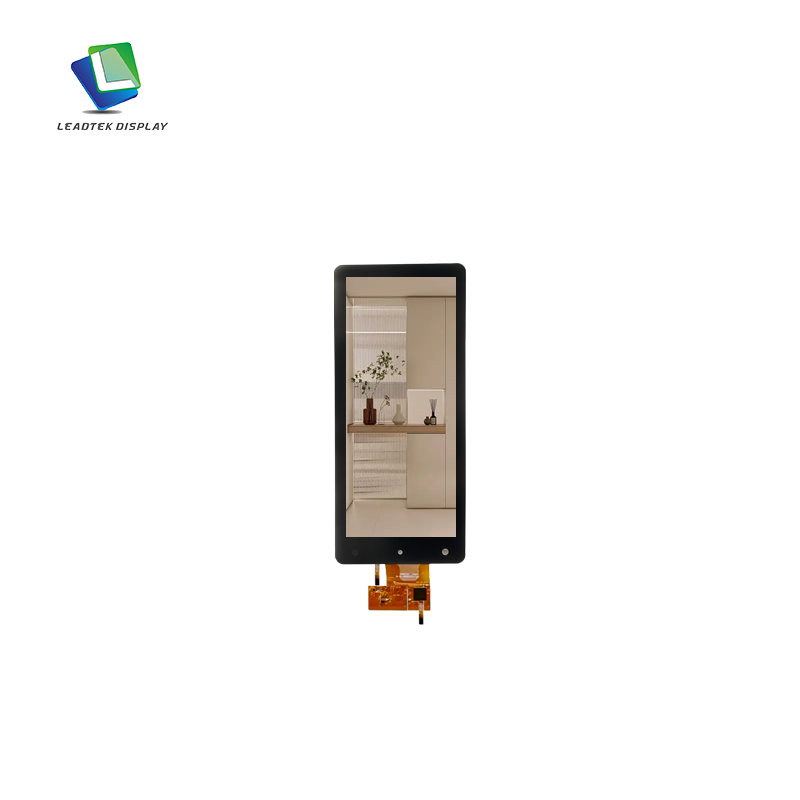

High-Resolution 12.3" IPS LCD Module for Smart Home
This 12.3" IPS LCD module, model LTK123FHHCT14-V0, features a high-resolution display of 720*1920 pixels and operates via MIPI interface with a luminance of 500.0 cd/m². It includes a capacitive touch panel (CTP) and is designed to function reliably in temperatures ranging from -20℃ to +70℃, with storage conditions from -30℃ to +80℃. Ideal for smart home applications, it offers clear, detailed visuals and robust performance in various environmental conditions.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 12.3 |
| Part Number. | LTK123FHHCT14-V0 |
| Display Mode | IPS |
| Resolution | 720*1920 |
| Interface | MIPI |
| Luminance (cd/m²) | 500 |
| Active Area (mm) | 109.51*292.03 |
| Outline Dimension (mm) | 146.00*335.50*9.15 |
| Touch Screen | CTP |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |

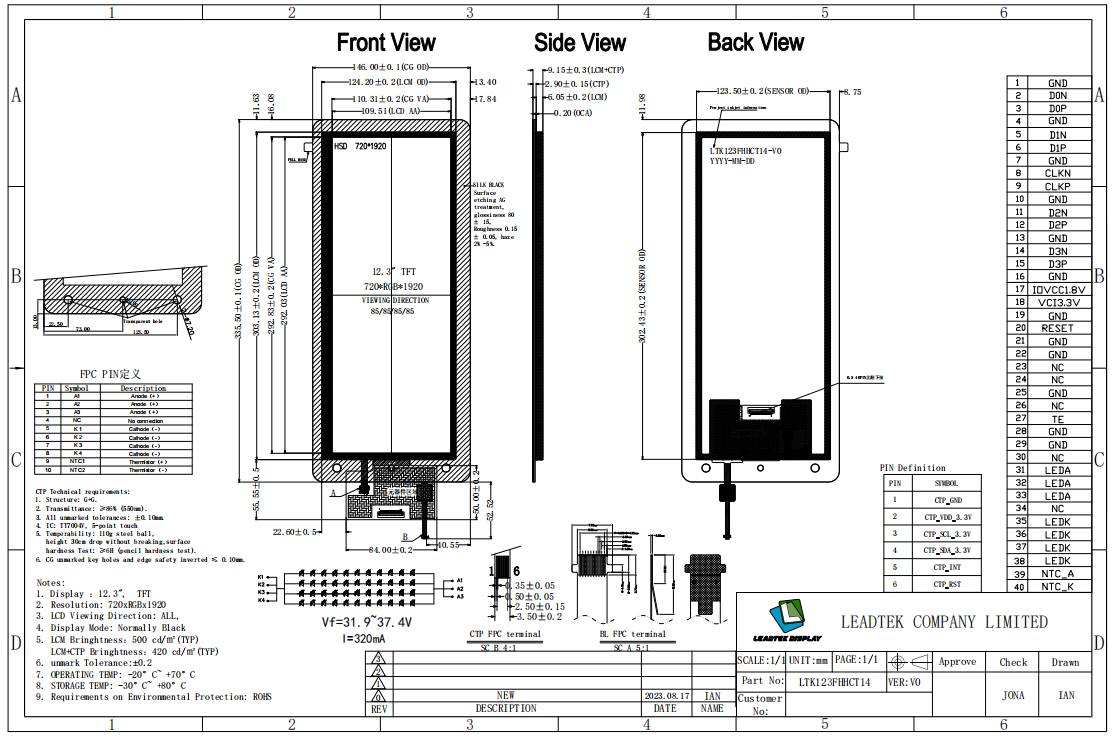

PRODUCT DRAWING
