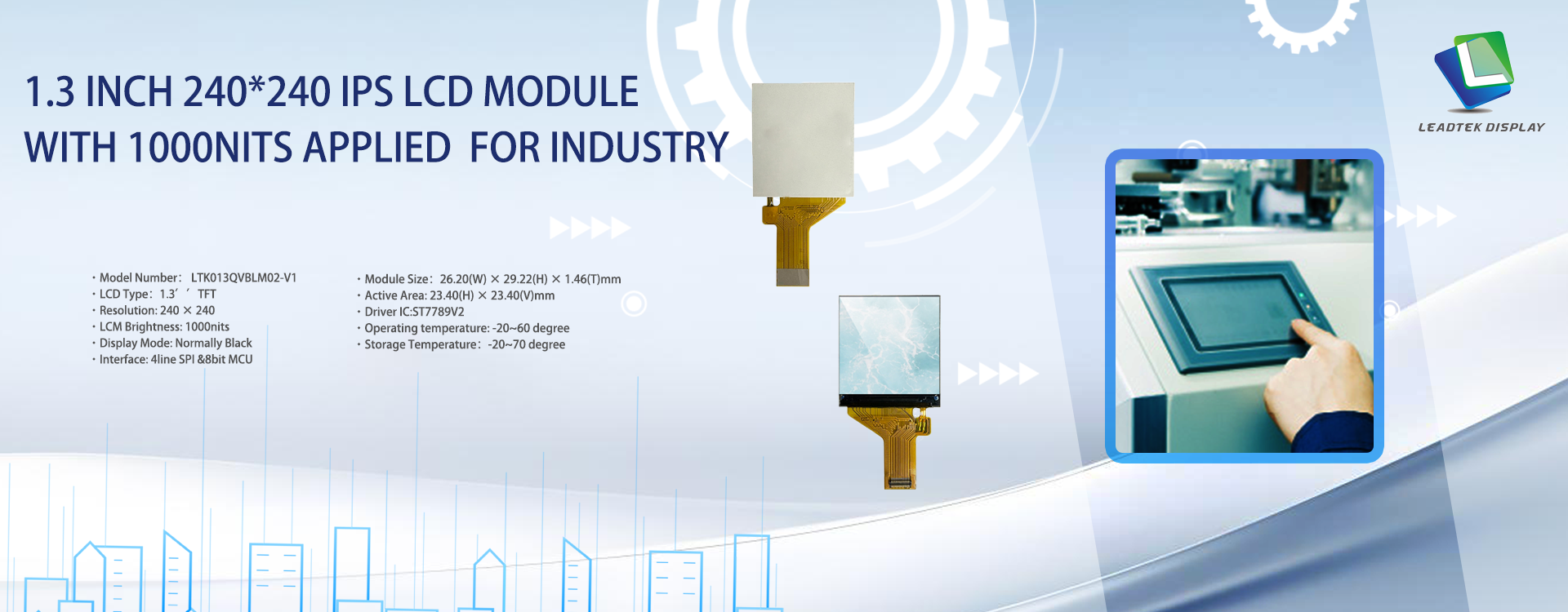

1.3 INCH 240*240 IPS LCD Module with 1000nits Applied for Industry

Welcome to LEADTEK DISPLAY

Introducing the LTK013QVBLM02-V1, a 1.3-inch TFT display designed for superior performance and clarity in compact devices. This display offers a 240 x 240 resolution and a normally black display mode, ensuring deep contrasts and vivid colors for a high-quality viewing experience.

With a module size of 26.20 x 29.22 x 1.46mm and an active area of 23.40 x 23.40mm, it’s perfectly suited for space-constrained applications. It features a brightness of 1000 nits, delivering excellent visibility even in bright outdoor conditions.

Equipped with a 4-line SPI and 8-bit MCU interface and powered by the ST7789V2 driver IC, this screen ensures fast and smooth performance. Built to withstand harsh environments, it operates in temperatures ranging from -20°C to 60°C and can be safely stored at -20°C to 70°C.

This display is ideal for use in smart industrial applications, offering the durability, clarity, and reliability needed in advanced industrial systems and environments. Whether you're designing wearable technology, industrial controls, or portable devices, the LTK013QVBLM02-V1 is your go-to display for top-tier performance.

Product Parameters：

Model Number：LTK013QVBLM02-V1
LCD Type：1.3’’TFT
Module Size：26.20(W) × 29.22(H) × 1.46(T)mm
Active Area: 23.40(H) × 23.40(V)mm
Resolution: 240 × 240
Display Mode: Normally Black
Interface: 4line SPI &8bit MCU
Driver IC:ST7789V2
LCM Brightness: 1000nits
Operating temperature: -20~60 degree
Storage Temperature：-20~70 degree

If you are interested in this model, please leave a message or contact us for more information.
