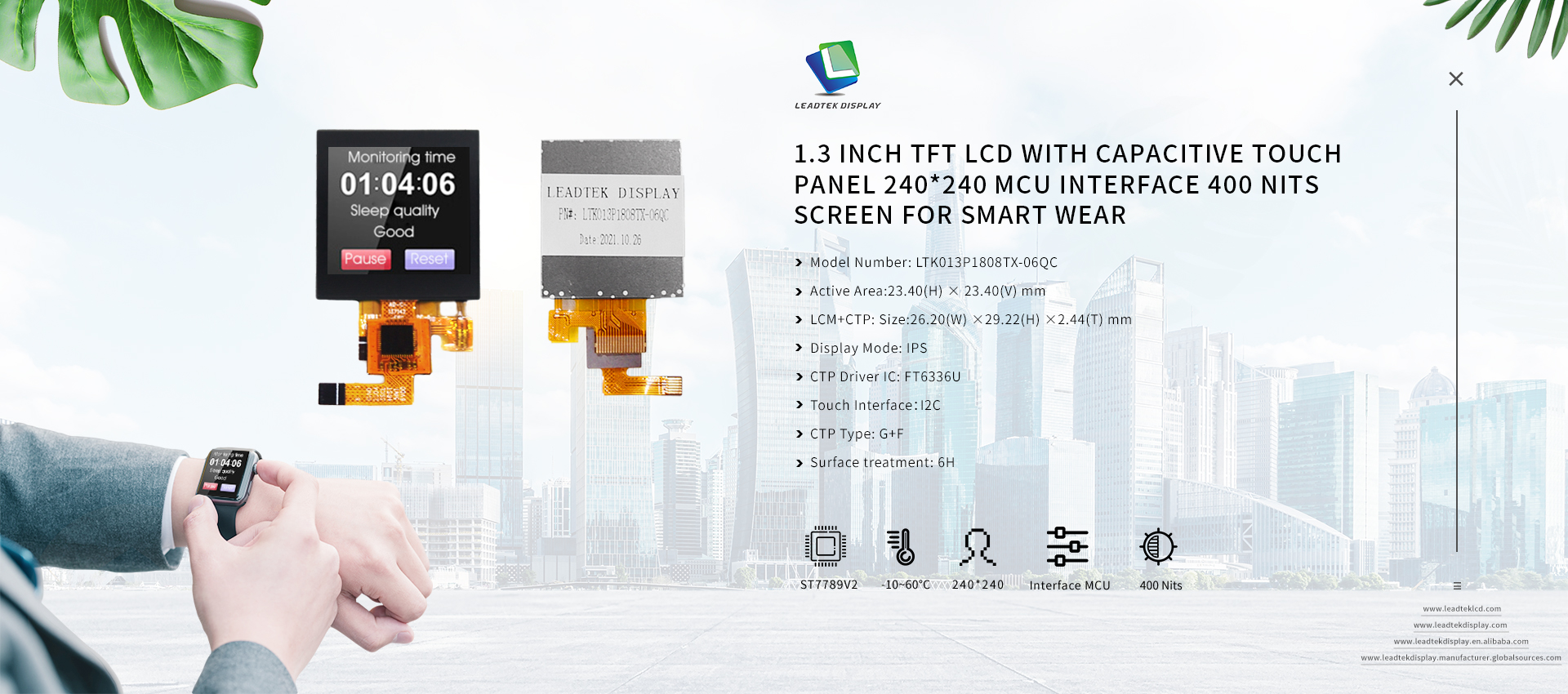

1.3 Inch Tft Lcd with Capacitive Touch Panel 240*240 MCU Interface 400 nits Screen for Smart Wear
- Model Number: LTK013P1808TX-06QC
- Active Area:23.40(H)×23.40(V) mm 可视区域
- LCM+CTP: Size:26.20(W)×29.22(H)×2.44(T) mm 外形尺寸
- Resolution:240*240 像素
- Display Mode: IPS 视角
- LCDInterface: MCU 屏接口
- Driver IC:ST7789V2 驱动IC
- Operating Temperature:-10~60 Degree 温度
- Brightness:400nits 亮度
- CTP Driver IC:FT6336U 触摸屏IC
- Touch Interface：I2C触摸接口
- CTP Type: G+F 触摸屏结构
- Surface treatment: 6H触摸屏厚度
