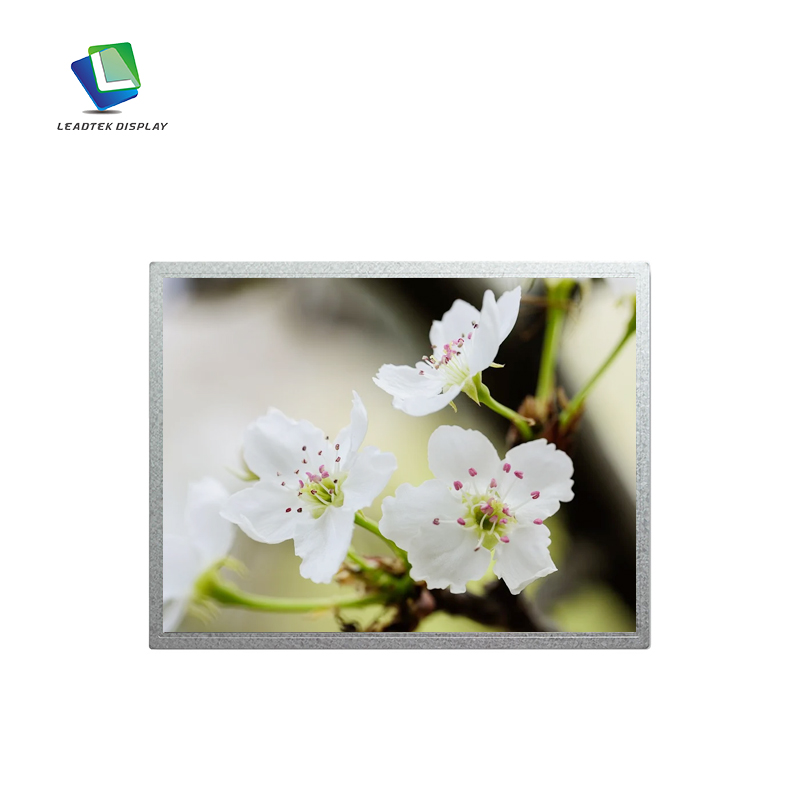

15" IPS LCD Module for High-Brightness Smart Industrial Applications
This LTK150FTFLM17-V0 IPS LCD module features a resolution of 1024768 pixels and operates via LVDS interface with a high brightness of 850 cd/m². The active area measures 304.13228.10 mm, and the overall dimensions are 326.50253.508.70 mm. Equipped with a capacitive touch panel (CTP), it functions reliably in temperatures ranging from -20℃ to +70℃, with storage conditions from -30℃ to +80℃. Designed for smart industrial applications, it ensures clear, high-quality visuals and robust performance in various industrial environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 15 |
| Part Number. | LTK150FTFLM17-V0 |
| Display Mode | IPS |
| Resolution | 1024*768 |
| Interface | LVDS |
| Luminance (cd/m²) | 850 |
| Active Area (mm) | 304.13*228.10 |
| Outline Dimension (mm) | 326.50*253.50*8.70 |
| Touch Screen | CTP |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |

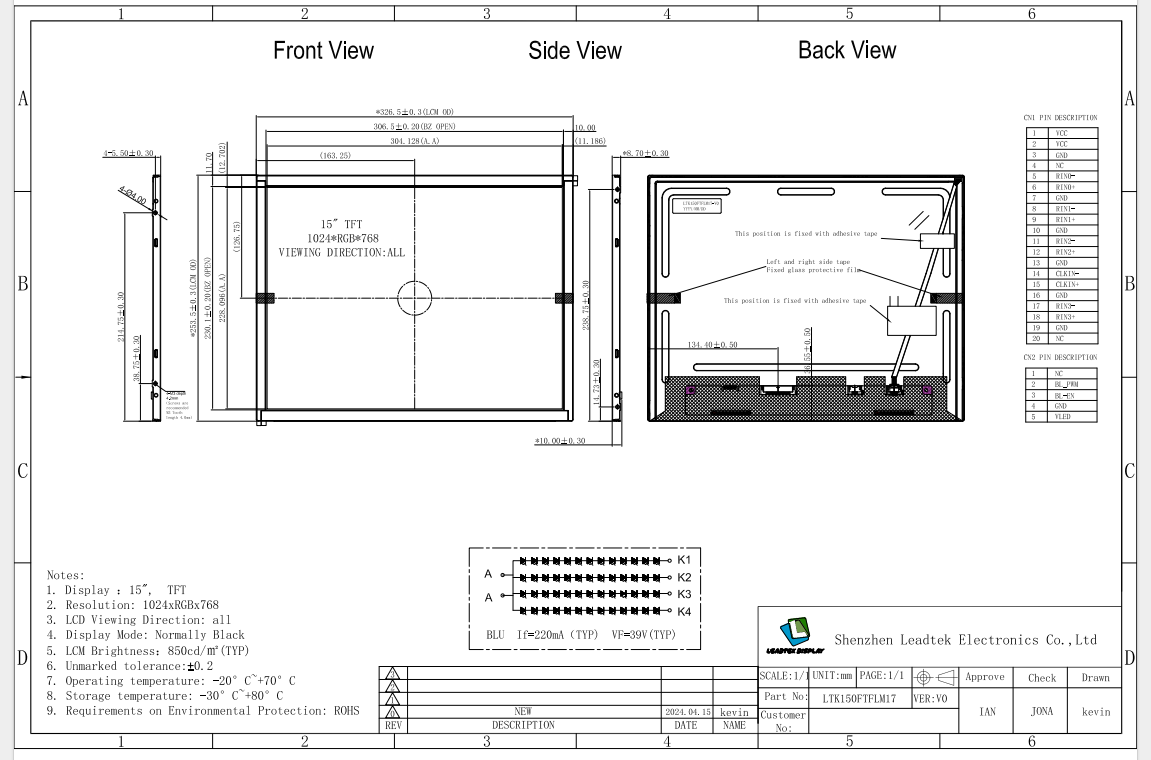

PRODUCT DRAWING
