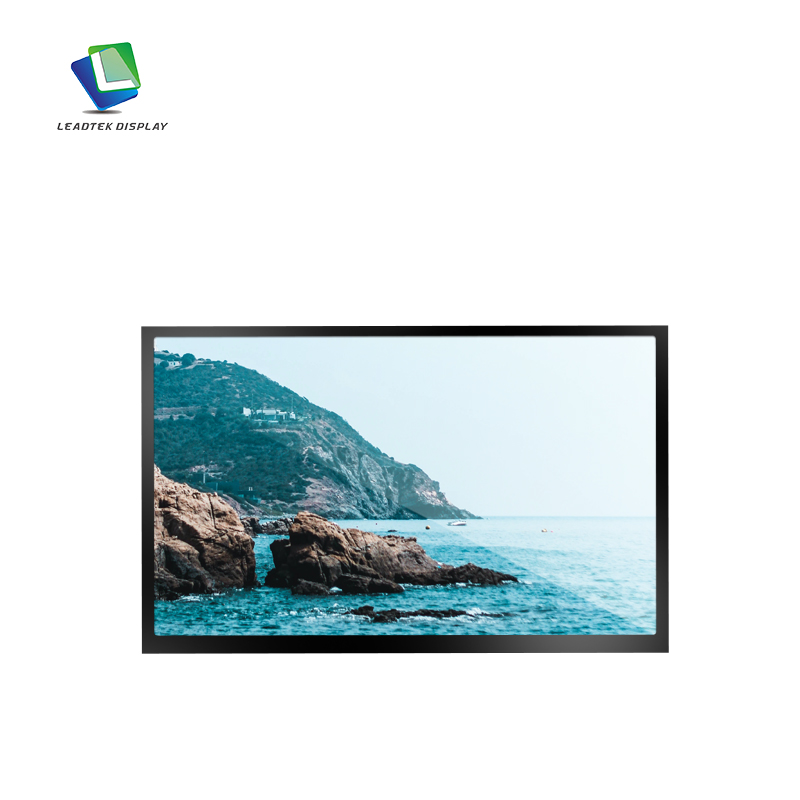

15.6 inch LCD panel 1920*1080 IPS lcd module 15.6 inch EDP interface TFT lcd display panel
LTK156FHBLM01-V0 display module is a color
active matrix TFT LCD, the resolution is 1920 by
1080P, it support 262, 144 Colors, a low reflection
and higher color type. LED Driver for back-light
driving is built in this model. input signals are
eDP1.2 interface compatible. suitable for
Notebook PC and industry. (E)
- Product Details
Specification of 15.6 inch LCD panel 1920*1080 IPS lcd module 15.6 inch EDP interface TFT lcd display panel
LTK PN#
LTK156FHBLM01-V0
Display type
15.6 inch TFT module
Display mode
IPS
Resolution
1920*1080
Luminance
250nits
Interface
EDP
Active Area
344.16*193.59 mm
Module outline dimension
350.66*205.25*3.0 mm
Operating temperature
0~50 degree
Storage temperature
-20~60 degree

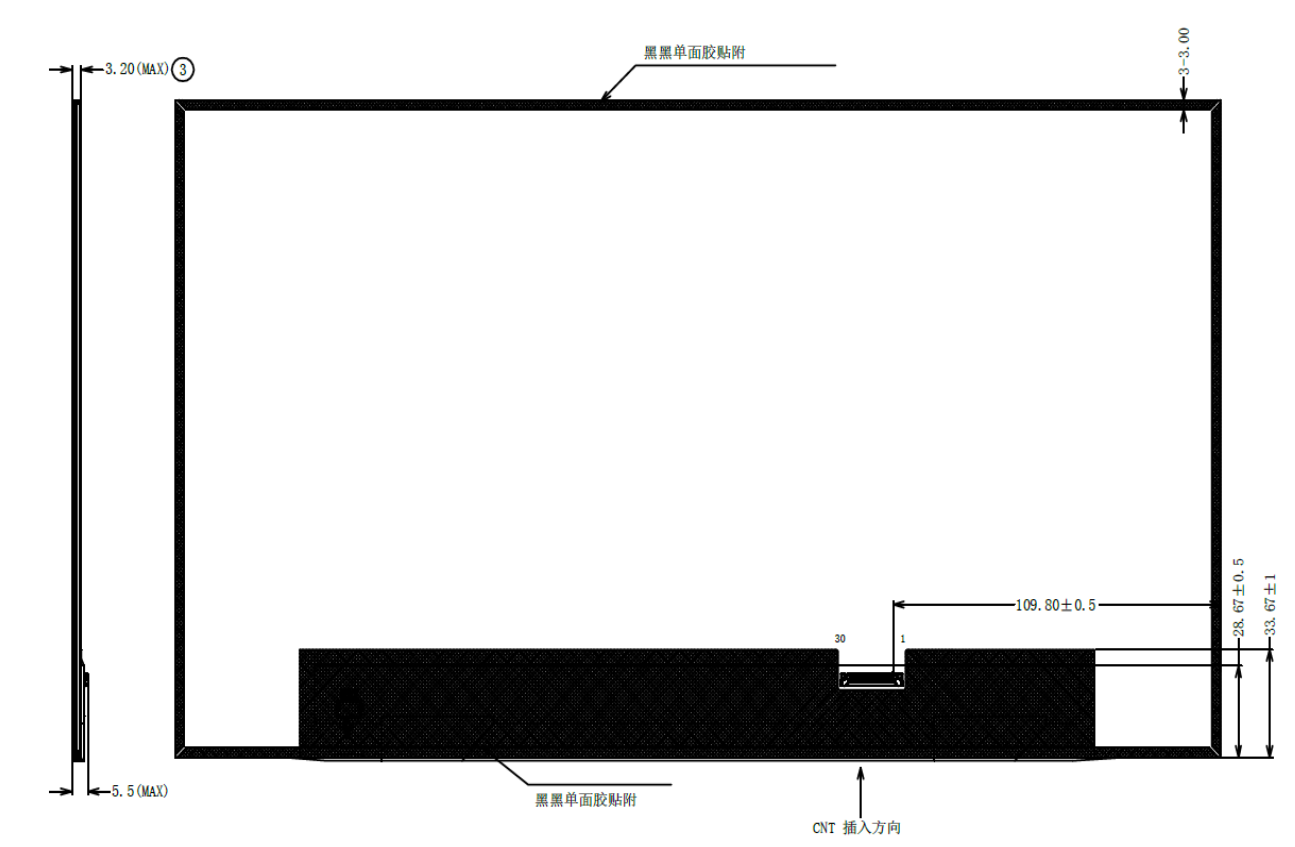

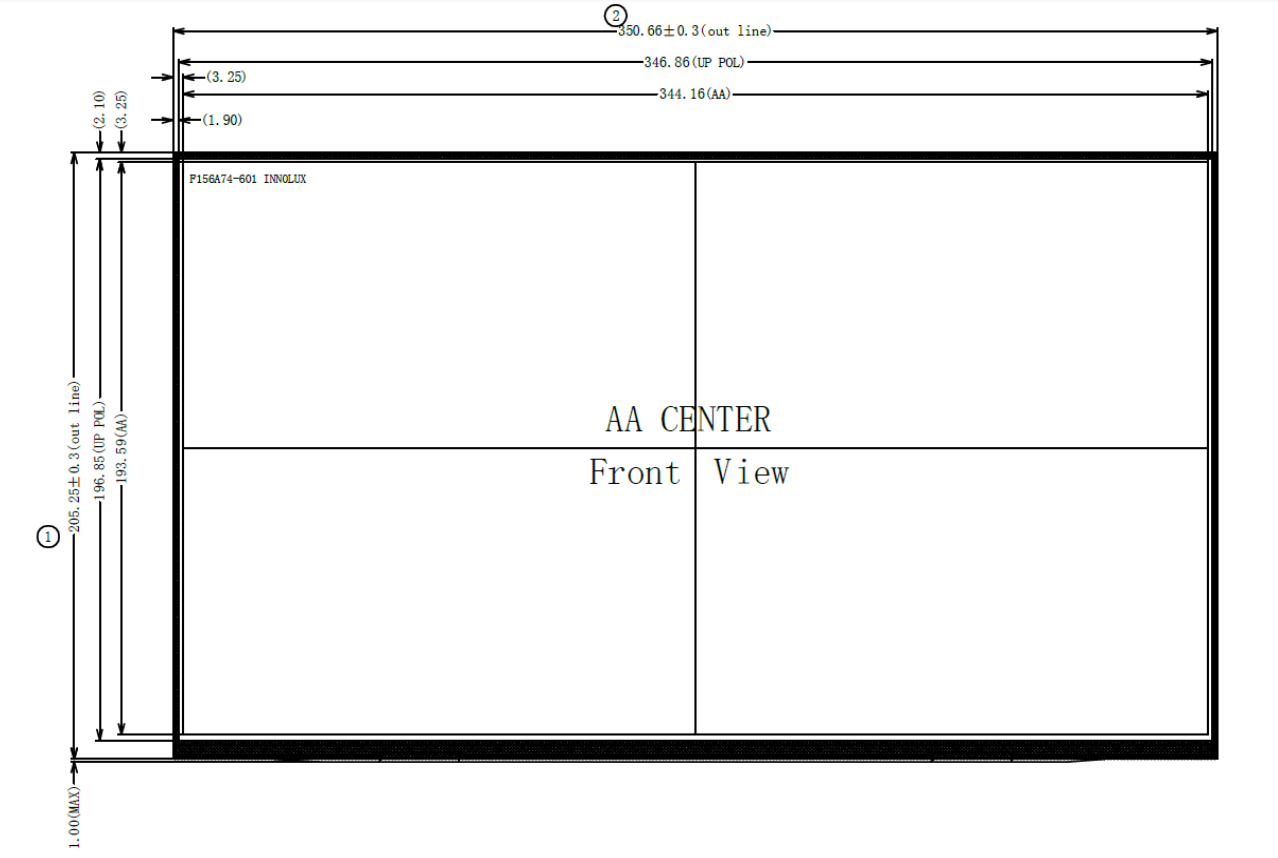

Drawing of 15.6 inch LCD panel 1920*1080 IPS lcd module 15.6 inch EDP interface TFT lcd display panel as below:
