15.6"" Transflective Display with EDP Interface for Industrial Applications

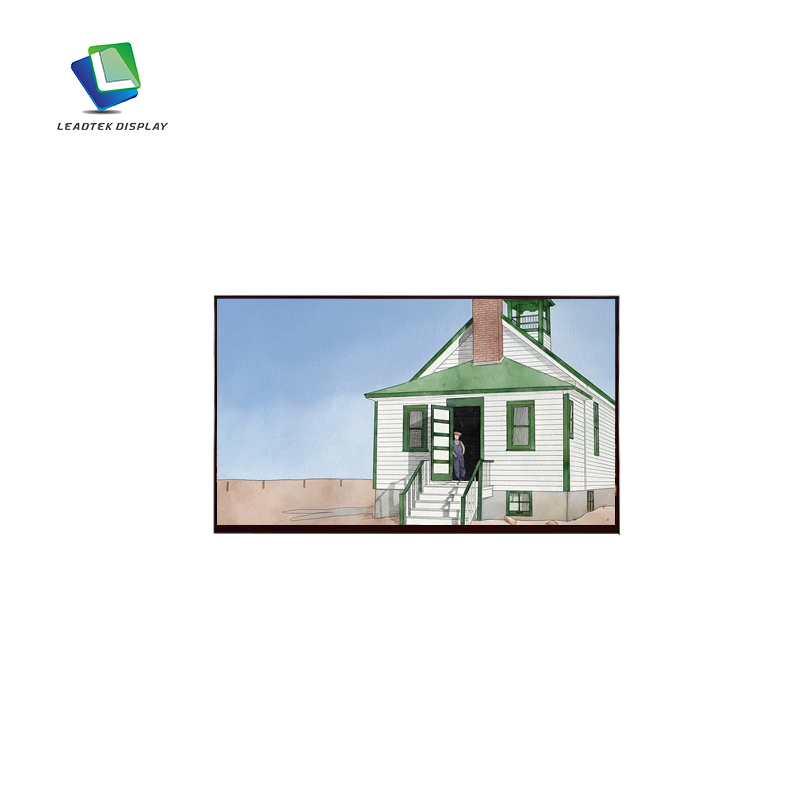

LTK156PDHCT24-V0 is a 15.6" transflective display ideal for industrial applications. It has a high resolution of 1920x1080 and an EDP interface, providing 16.7 million full-color display capabilities. The reflectivity is 13.98%, providing clear images. The display consumes 7800mW of power. The active area size is 344.16*193.59 mm. The display is equipped with a capacitive touch screen (CTP) and the touch screen interface is USB. It is designed for industrial use and can provide powerful and reliable performance under harsh conditions.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 15.6 |
| Part Number. | LTK156PDHCT24-V0 |
| Display Type | Transflective |
| Resolution | 1920*1080 |
| Viewing |
60/60/60/60 |
| Interface | EDP |
| Color | 16.7M, full color |
| Reflectivity |
13.98% |
| Power Consumption(mW) | 7800 |
|
Luminance (cd/m²) |
150 |
| Active Area (mm) | 344.16*193.59 |
| Outline Dimension (mm) | 386.80*236.07*12.5 |
| Touch Screen | CTP |
| TP Structure |
G+G |
|
TP IC Model |
ILITEK2511 |
| TP Interface |
USB |
|
Operating Temp |
-10~+50℃ |
|
Storage Temp |
-20~+60℃ |

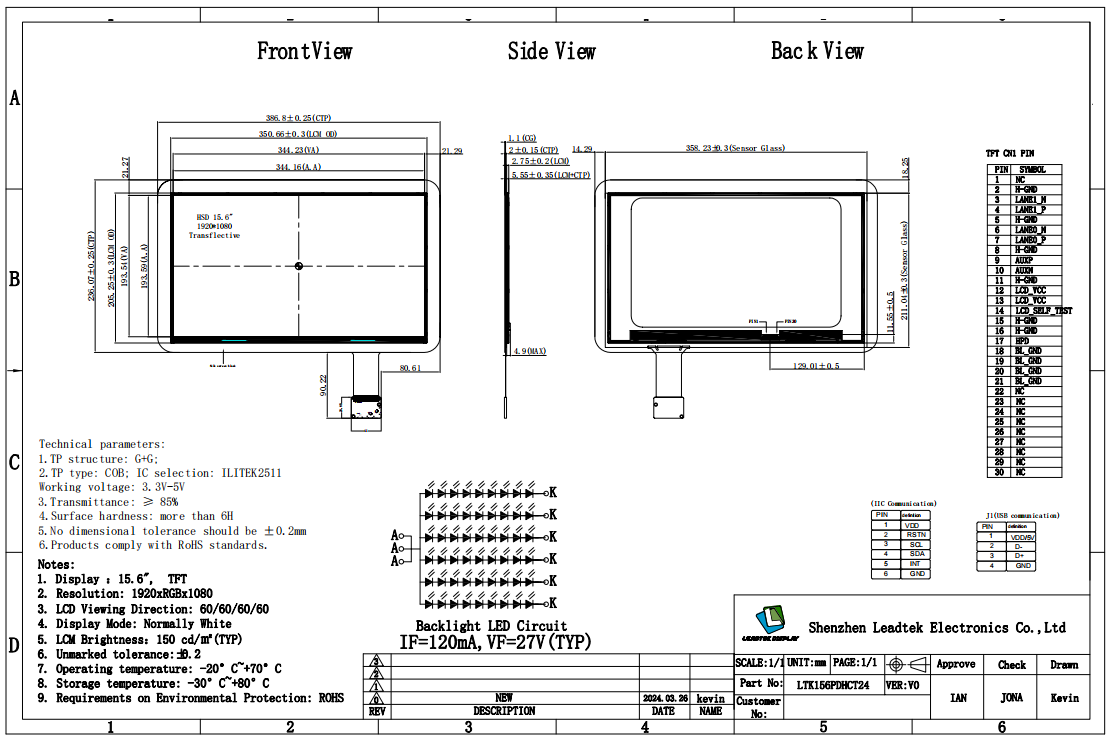

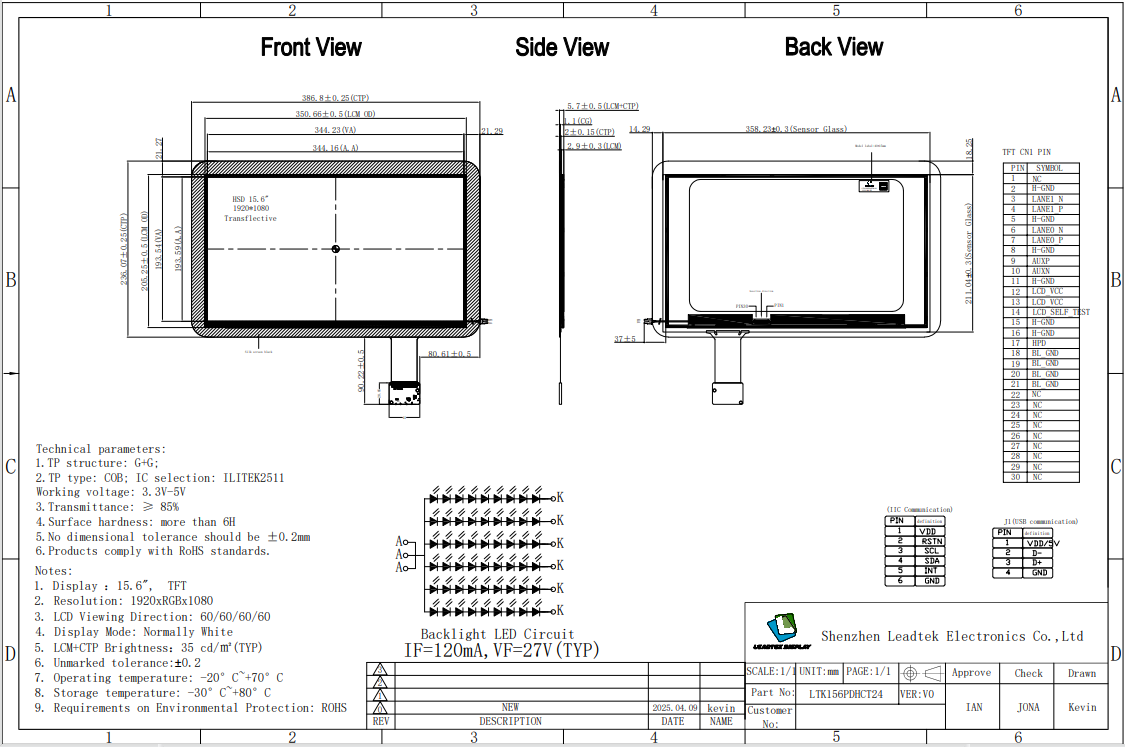

PRODUCT DRAWING
