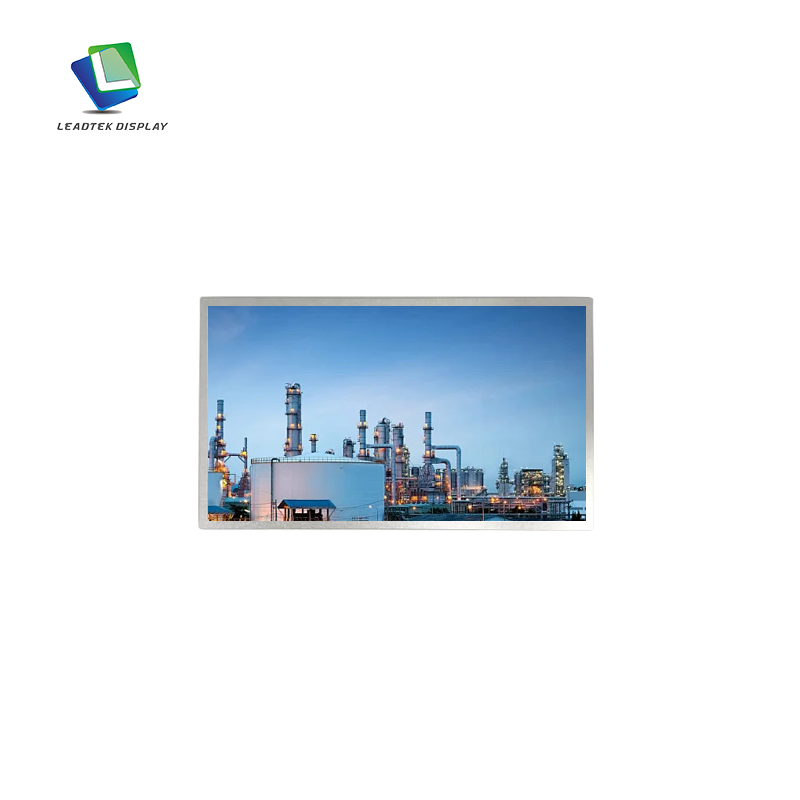

18.5 Inch 1920*1080 IPS LCD Module for Industrial Applications
This 18.5" IPS LCD module, model LTK185FHBLM12-V1, has a resolution of 1920*1080, operates via an LVDS interface, and has a brightness of 320.0 cd/m². It is equipped with CG technology and a CTP touch screen, and can operate reliably in a temperature range of -0℃ to +60℃, with storage conditions of -10℃ to +60℃. It is designed for smart industrial applications, providing clear, high-quality visuals and reliable performance in a variety of environmental conditions.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 18.5 |
| Part Number. | LTK185FHBLM12-V1 |
| Display Mode | IPS |
| Resolution | 1920*1080 |
| Interface | LVDS |
| Luminance (cd/m²) | 320 |
| Active Area (mm) |
408.96*230.04 |
| Outline Dimension (mm) |
430.37*254.60*9.30 |
| Touch Screen | CTP |
| Operating Temp | -0~+60℃ |
| Storage Temp | -10~+60℃ |

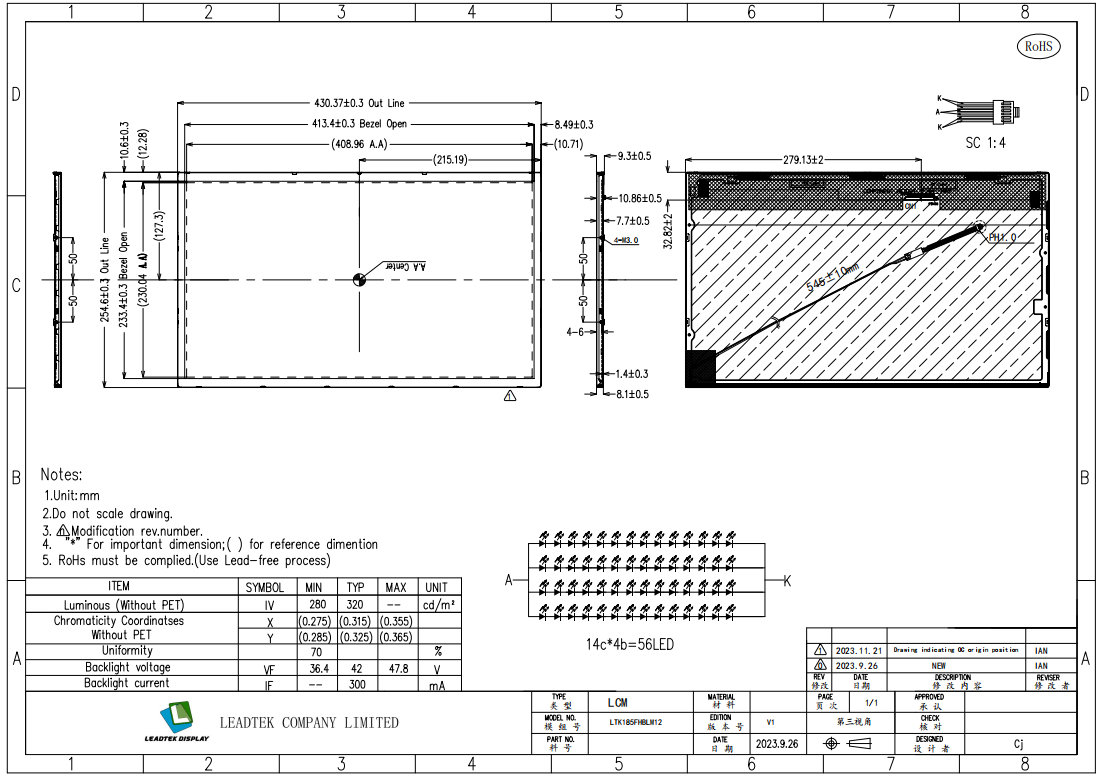

PRODUCT DRAWING
