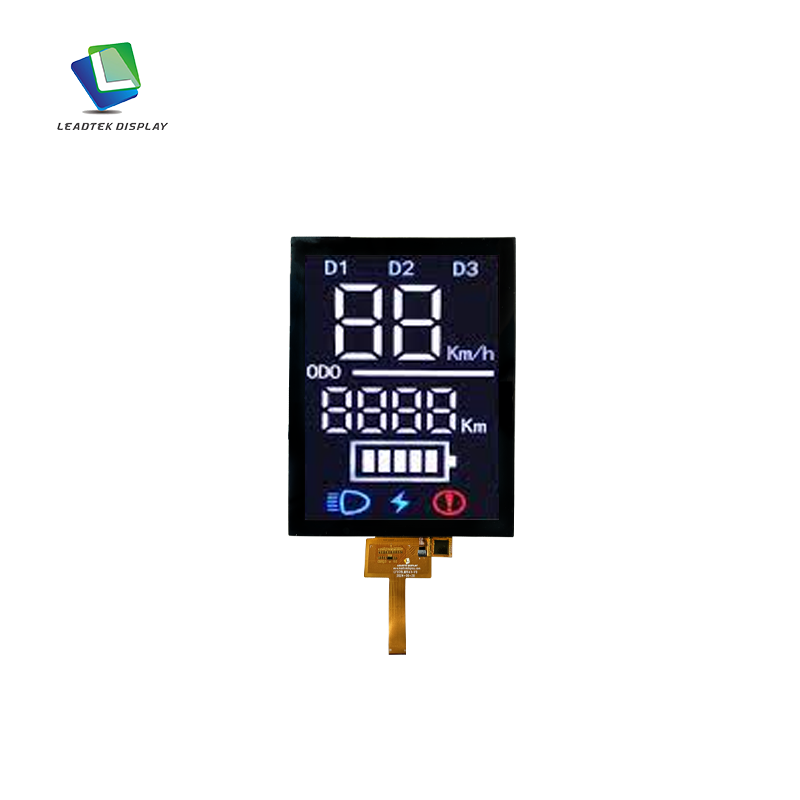

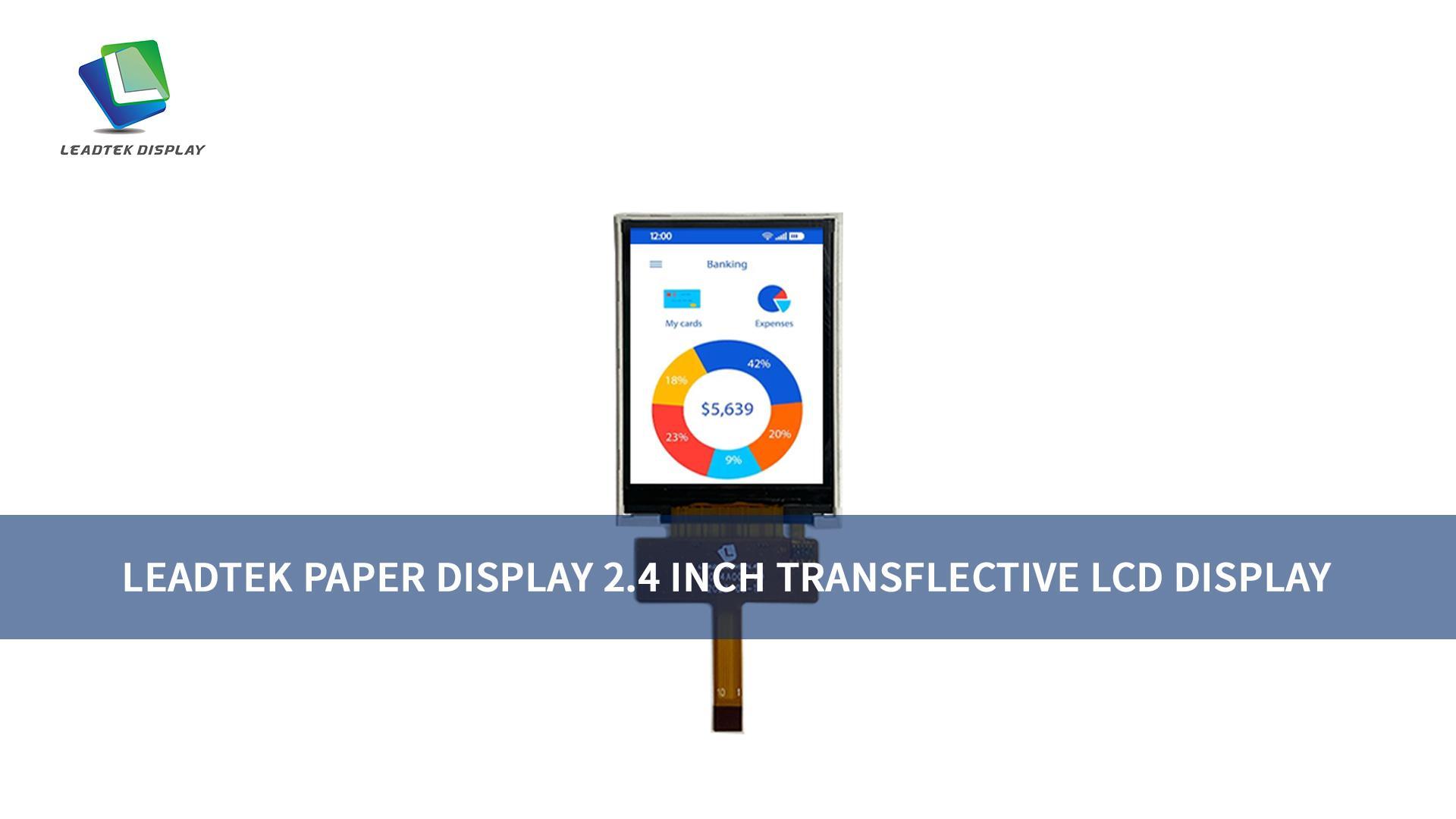

2.4 inch transflective lcd 240x320 sunlight readable tft Display
The LTK024QVHLM17-V2 is a 2.4-inch IPS transflective LCD with 240×320 resolution and 16.7M colors, ensuring clear visibility under sunlight. With 25% reflectivity, 15:1 reflection contrast, andlow power consumption (37.1mW), it is ideal for outdoor smart transportation systems.
Its wide 60° viewing angles,SPI interface, and compact design (42.72×60.26×2.20 mm)make it perfect for real-time navigation, public transport displays, and smart devices.
- Product Details
|
Part Number. |
LTK024QVHLM17-V2 |
|
Size (inch) |
2.4 |
|
Display Mode: |
IPS/Transflective |
|
Resolution |
240*320 |
|
Luminance (cd/m²) |
180 |
|
Color |
16.7M, full color |
| Reflection Contrast |
15:1 |
|
Reflectivity |
25% |
|
Power Consumption (mW) |
37.1 |
| Viewing |
60/60/60/60 |
|
Interface |
SPI |
|
Expandable Interface |
MCU |
|

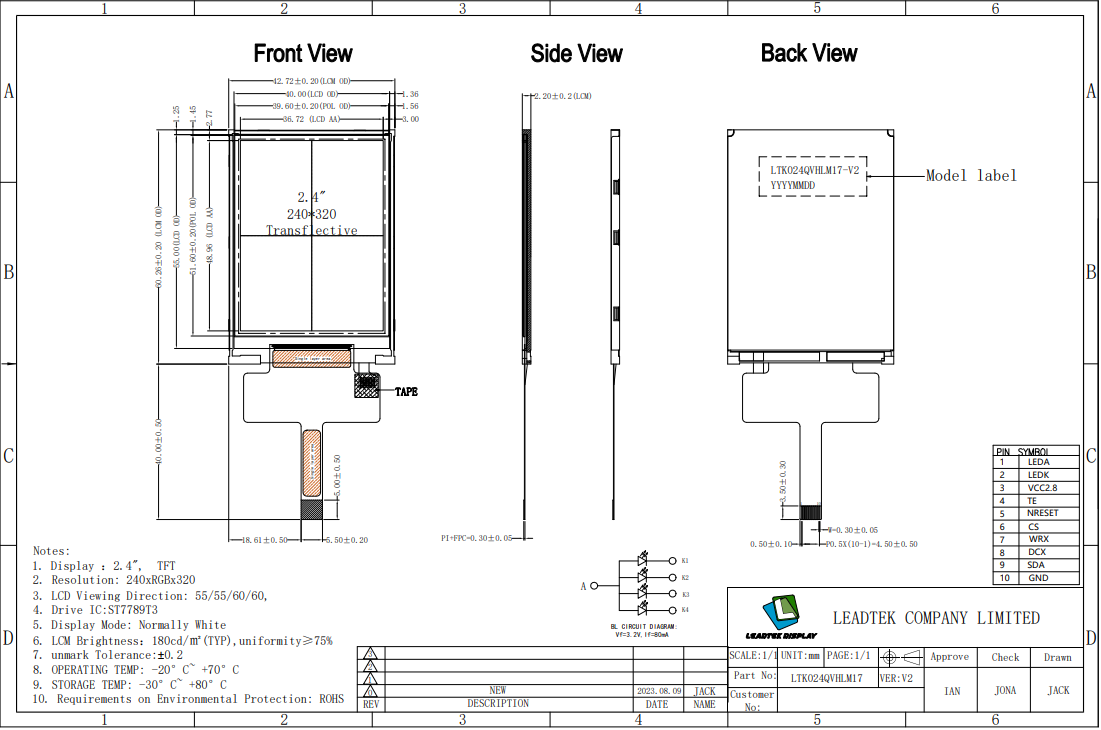

Active Area(mm) |
36.72*48.96 |
|
Outline Dimention(mm) |
42.72*60.26*2.20 |
