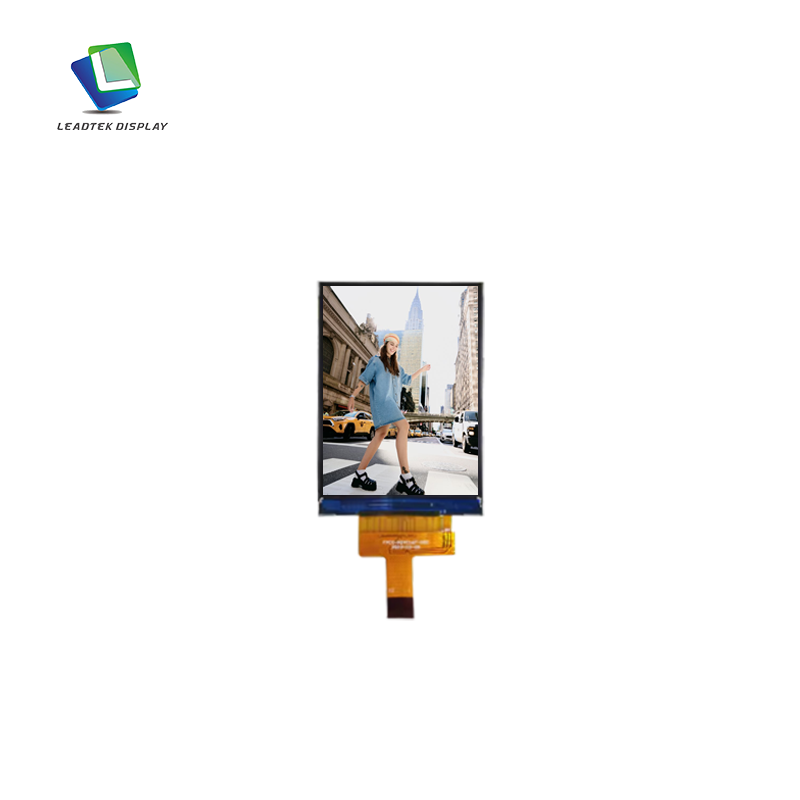

2.4" TFT Color Display with Touch Screen Panel
This 2.4" display boasts a resolution of 240 x 320, ideal for smart home applications. It features an SPI interface and 300 cd/m² brightness for clear and vivid visuals. The active area measures 36.72(H) x 48.96(V) mm, while the overall dimensions are 78.00(W) x 59.50(H) x 3.74(T) mm, ensuring a compact and durable design. With Cover Glass (CG) for added protection, it operates within a temperature range of -20°C to +70°C, making it reliable in various environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 2.4 |
| Part Number. | LTK024QVBGT20-V0 |
| Display Mode | IPS |
| Resolution | 240*320 |
| Interface | SPI |
| Luminance (cd/m²) | 300 |
| Active Area (mm) | 36.72*48.96 |
| Outline Dimension (mm) | 78.00*59.50*3.74 |
| Touch Screen | CG |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |

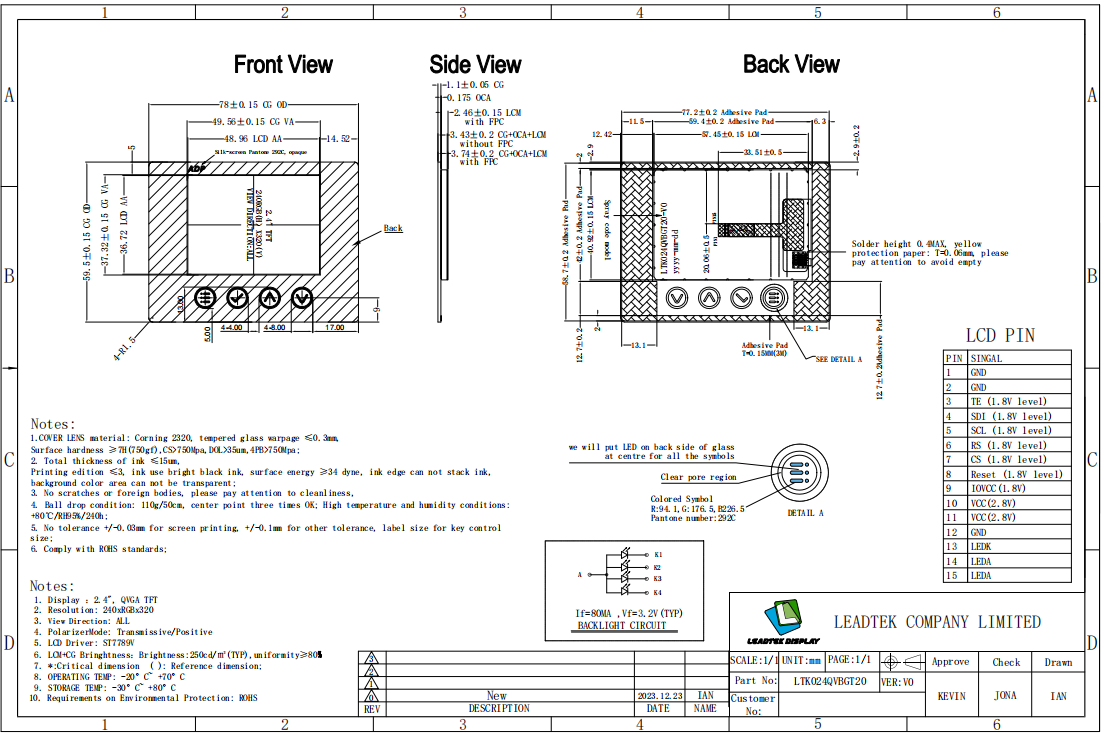

PRODUCT DRAWING
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
