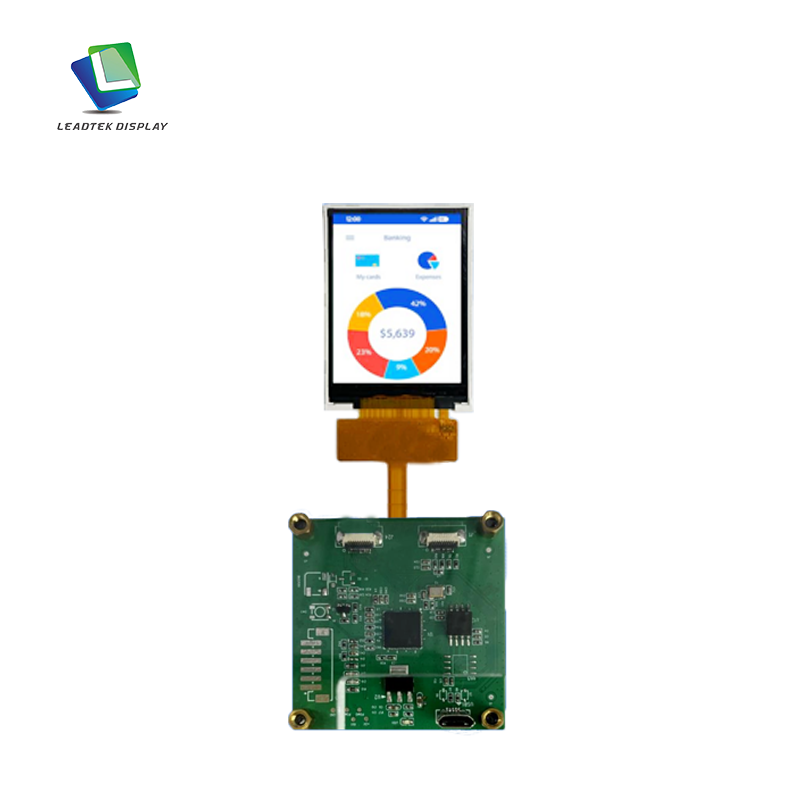

2.4" TN LCD Module UART Display for Smart Transportation
This LTK024QVHUM17-V2 TN LCD module features a resolution of 240*320 pixels and operates via TTL serial interface. Designed for smart transportation applications, it functions reliably in temperatures ranging from -20℃ to +70℃ and is powered by 5V/2A, making it suitable for various transportation environments.
- Product Details
PRODUCT PARAMETER
| Size (inch) | 2.4 |
| Part Number. | LTK024QVHUM17-V2 |
| Display Mode | TN |
| Resolution | 240*320 |
|
Signal Input |
SPI |
| Signal output | Serial Port-TTL |
| Luminance (cd/m²) | 180 |
| Active Area (mm) | 36.72*48.96 |
| Outline Dimension (mm) | 42.72*60.26*2.20 |
| Touch Screen | NA |
| Power Supply | 5V/2A |
|
Operating Temp |
-20~+70℃ |
|
Storage Temp |
-30~+80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
