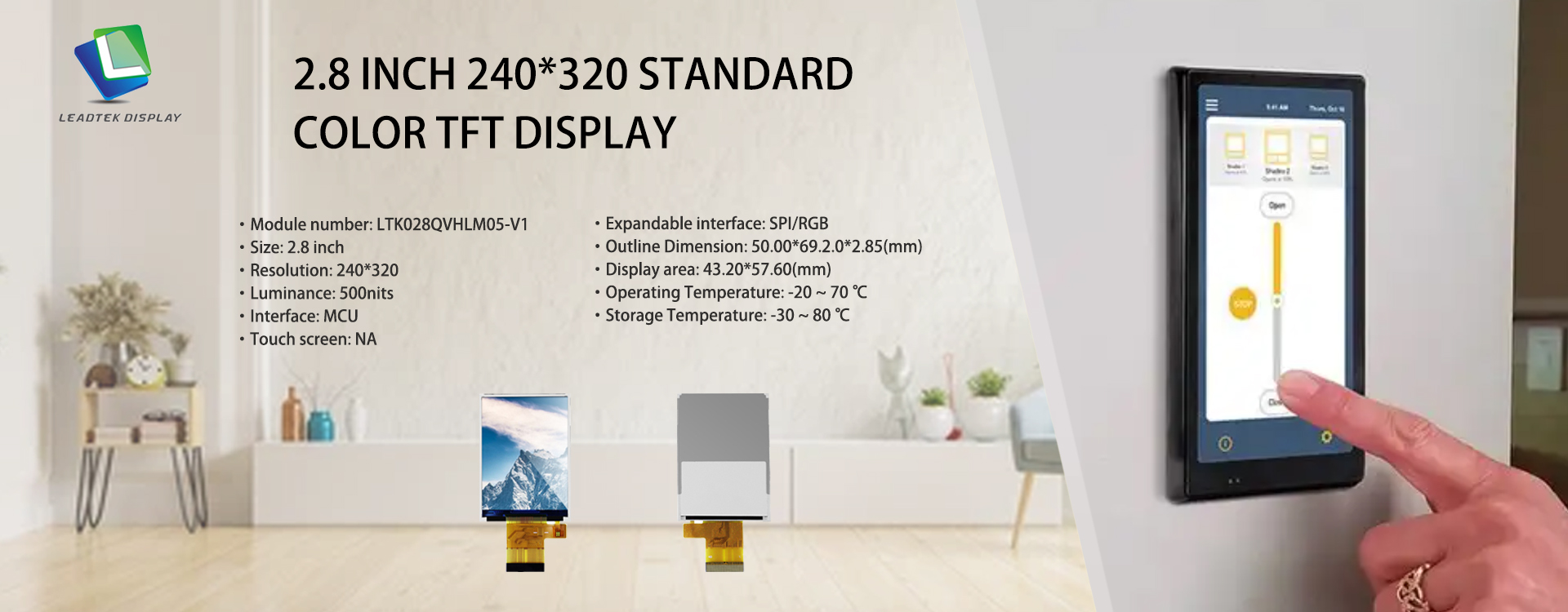

2.8 INCH 240*320 STANDARD COLOR TFT DISPLAY

Welcome to Leadtek Display, this 2.8" module has a resolution of 240 x 320 and features an IPS full viewing angle display, providing clear images from all angles. With a brightness of 500 nits, it provides excellent visibility even in bright conditions, making it perfect for smart home environments. The compact form factor measures 50.00 x 69.20 x 2.85 mm and an active display area of 43.20 x 57.60 mm, making it ideal for space-constrained designs.

Designed with versatility in mind, it supports MCU interfaces and can be expanded with SPI/RGB options for easy integration into your project. Designed to work in harsh conditions, the display can operate in temperatures ranging from -20°C to 70°C and can be safely stored at -30°C to 80°C. Whether you are developing industrial controls, handheld devices, home applications or consumer electronics, trust the LTK028QVHLM05-V1 display to provide the reliability and performance you need for your next project.

Module number:LTK028QVHLM05-V1

Size: 2.8 inch

Resolution:240*320

Luminance: 500nits

Interface:MCU

Touch screen: NA

Expandable interface: SPI/RGB

Outline Dimension:50.00*69.2.0*2.85(mm)

Display area:43.20*57.60(mm)

Operating Temperature: -20 ~70℃

Storage Temperature: -30 ~80℃

If you are interested in this model, please leave a message or contact us for more information, thank you!
