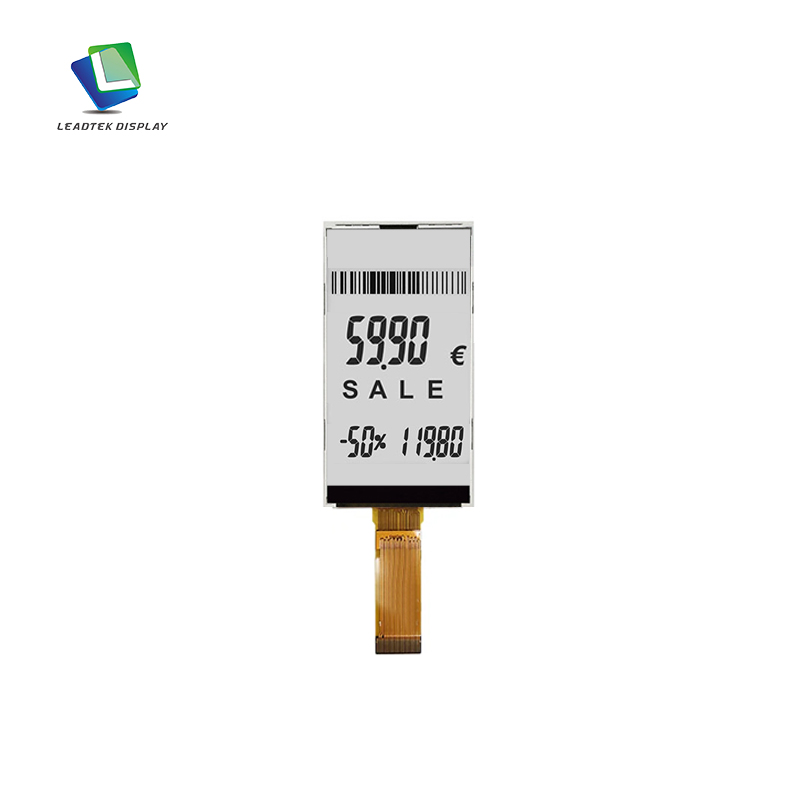

2.9 Inch LCD Screen TFT LCD Reflective Display 168*384 IPS Panel SPI Interface
Leadtek Display model LTK029MNHLM12-V0 is a BWR active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
It is a reflective type display operating in the total reflection. This TFT LCD has a 2.9 inch diagonally measured active display area with 168 horizontal by 384 vertical pixel resolution.(J)
It is a reflective type display operating in the total reflection. This TFT LCD has a 2.9 inch diagonally measured active display area with 168 horizontal by 384 vertical pixel resolution.(J)
- Product Details
Specification of 2.9 Inch LCD Screen TFT LCD Reflective Display 168*384 IPS Panel SPI Interface
Display Mode:
TN/Reflective
Resolution
168*384
Interface
SPI
Active Area
29.10*66.85mm
Outline Dimention
31.10*70.95*0.72mm

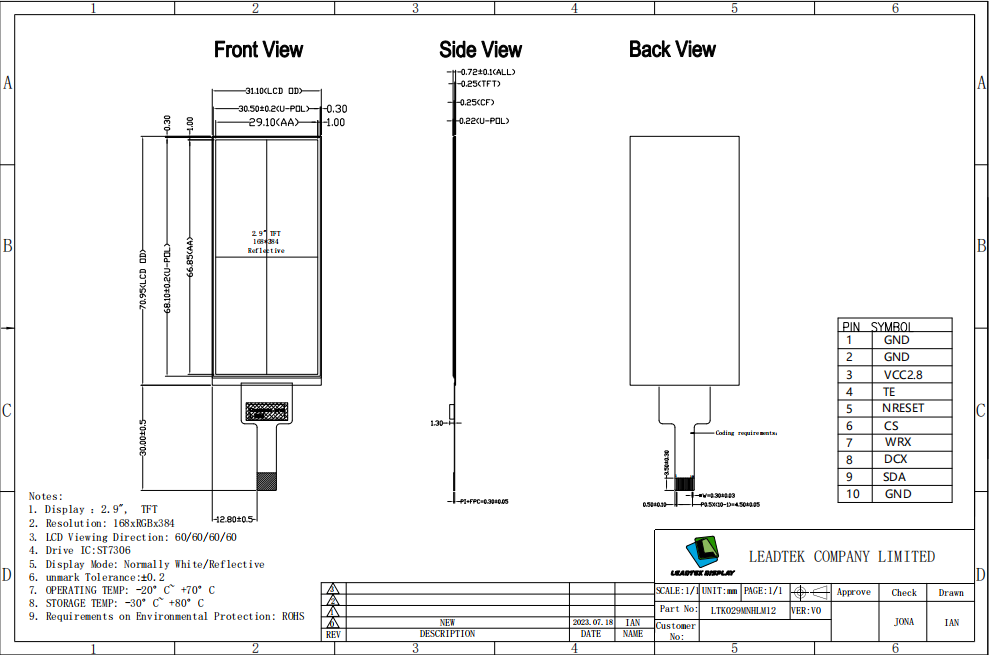

Dimension of 2.9 Inch LCD Screen TFT LCD Reflective Display 168*384 IPS Panel SPI Interface
