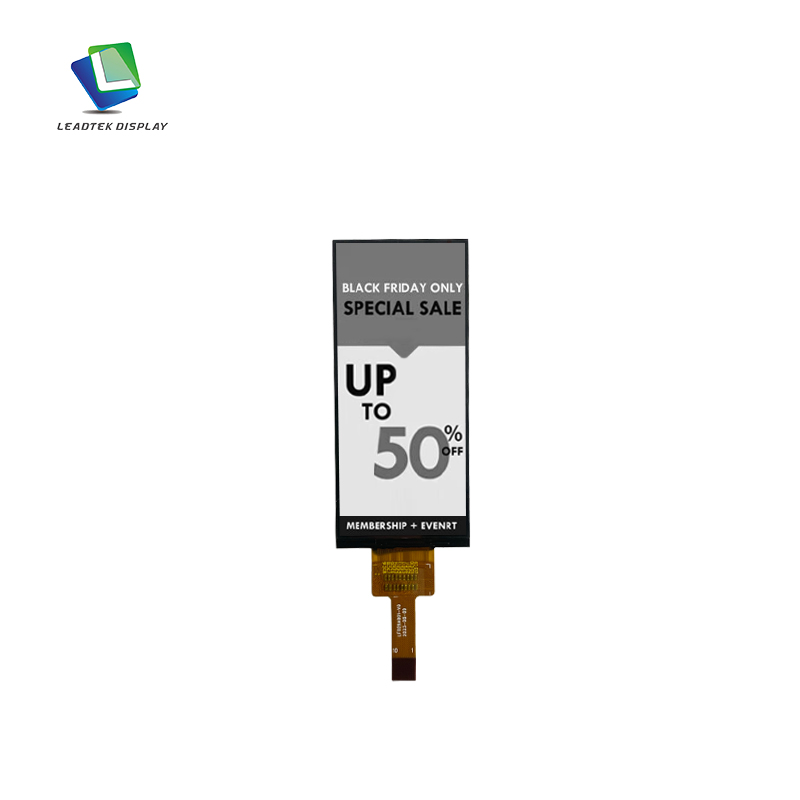

2.9 Inch Reflective LCD Display with 168*384 Resolution
The LTK029MNHLM11-V0 is a 2.9-inch reflective LCD with a 168×384 resolution and B/W two-color display, designed forsunlight readability. With 50% reflectivity, 15:1 contrast, andultra-low power consumption (0.06mW), it is perfect forenergy-efficient smart home applications.
Its wide 60° viewing angles,SPI interface, and compact design (36.60×70.95×1.50 mm)make it ideal forsmart home controllers, e-labels, and IoT devices.
- Product Details
| Part Number. | LTK029MNHLM11-V0 |
| Size (inch) | 2.9 |
| Resolution | 168*384 |
| Display Type | Reflective |
| View angle | TN |
|
Color |
B/W, 2 color |
|
Reflection Contrast |
15:1 |
|
Reflectivity |
50% |
|
Power Consumption (mW) |
0.06 |
| Viewing |
60/60/60/60 |
| Interface | SPI |
|
Expandable interface |
MCU |
| Driver IC | ST7306-G6 |

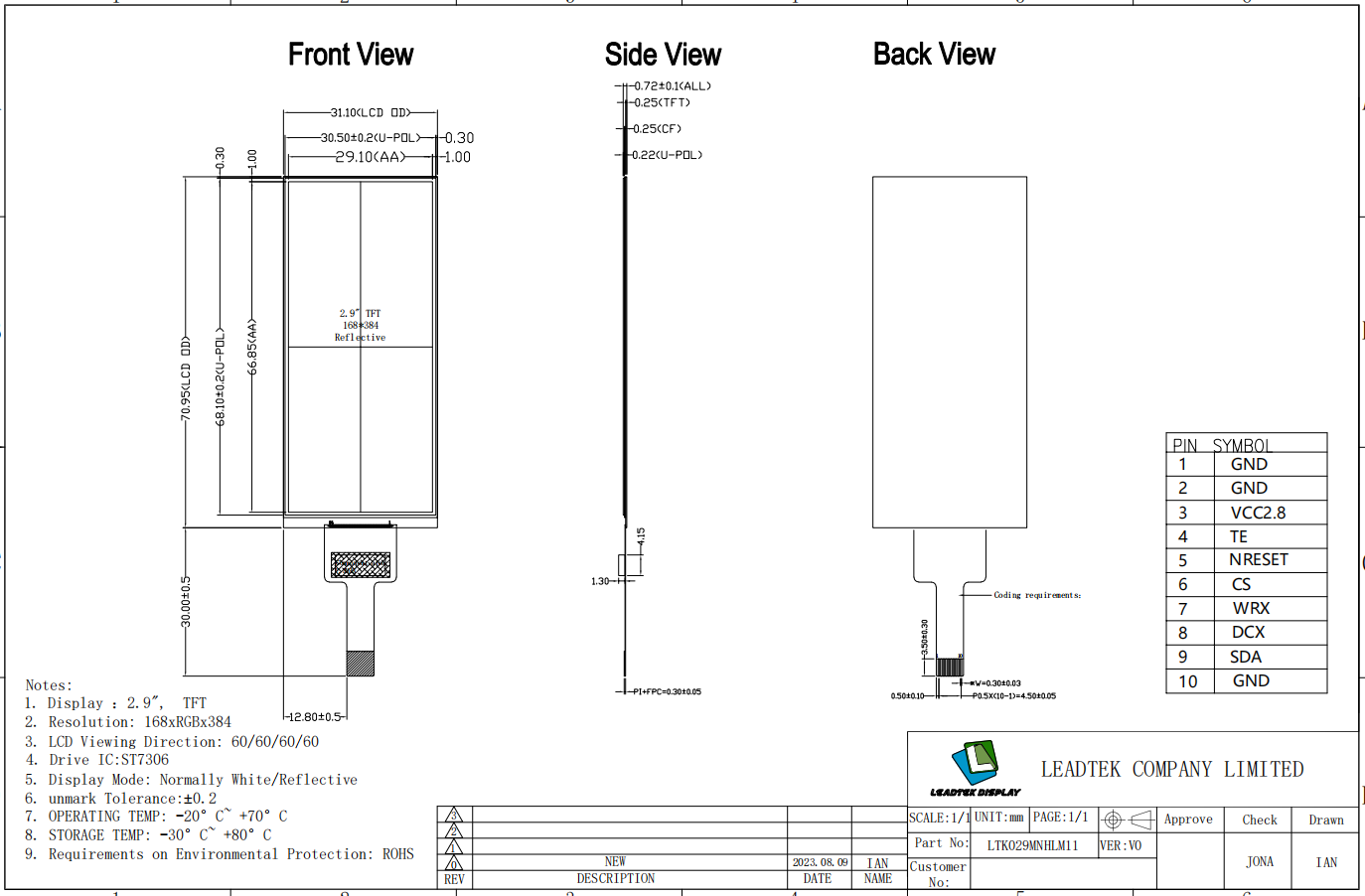

| LCM Dimension(mm) |
36.60*70.95*1.50 |
| Active Area(mm) | 29.10*66.85 |
| Touch Panel | NA |
| Operating Temperature | -20-+70℃ |
|
Storage Temperature |
-30-+80℃ |
