3.4INCH Leadtek smart display for home application
This LTK034MNBUT12-V0 IPS LCD module features a resolution of 800*800 and operates with a brightness of 300 cd/m². The active area measures 88.60*88.60 mm, and the overall dimensions are 109.20*113.47*3.77 mm. Equipped with a capacitive touch panel (CTP), it functions reliably in temperatures ranging from -20℃ to +70℃. Designed for smart home applications, it ensures clear, detailed visuals and stable performance in various home environments.
- Product Details
PRODUCT PARAMETER

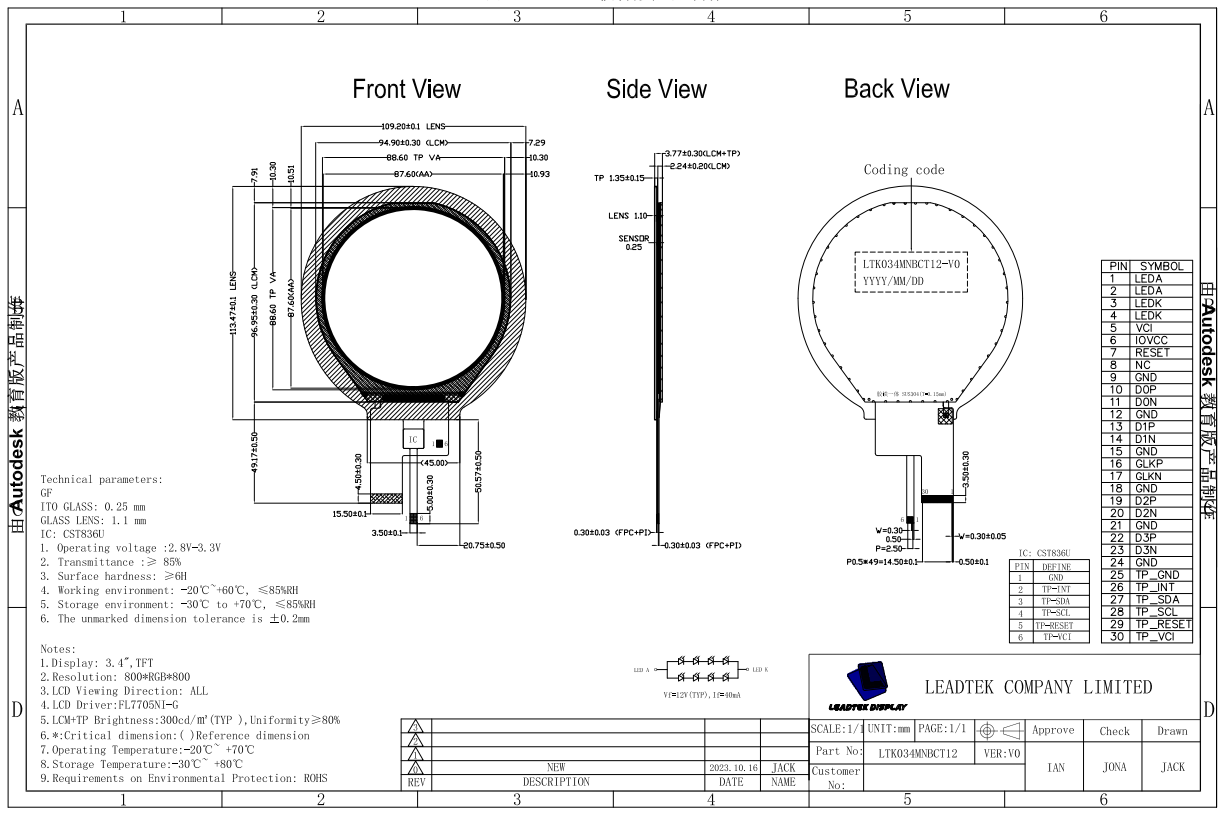

PRODUCT DRAWING
Size (inch) | 3.4 |
Part Number. | LTK034MNBUT12-V0 |
Display Mode | IPS |
Resolution | 800*800 |
Interface(System) | UART TTL&232&485 |
Power Supply | 5V/2A |
Operating Temp | -20~+70℃ |
Outline Dimension (mm) | 109.20*113.47*3.77 |
Touch Screen | CTP |
