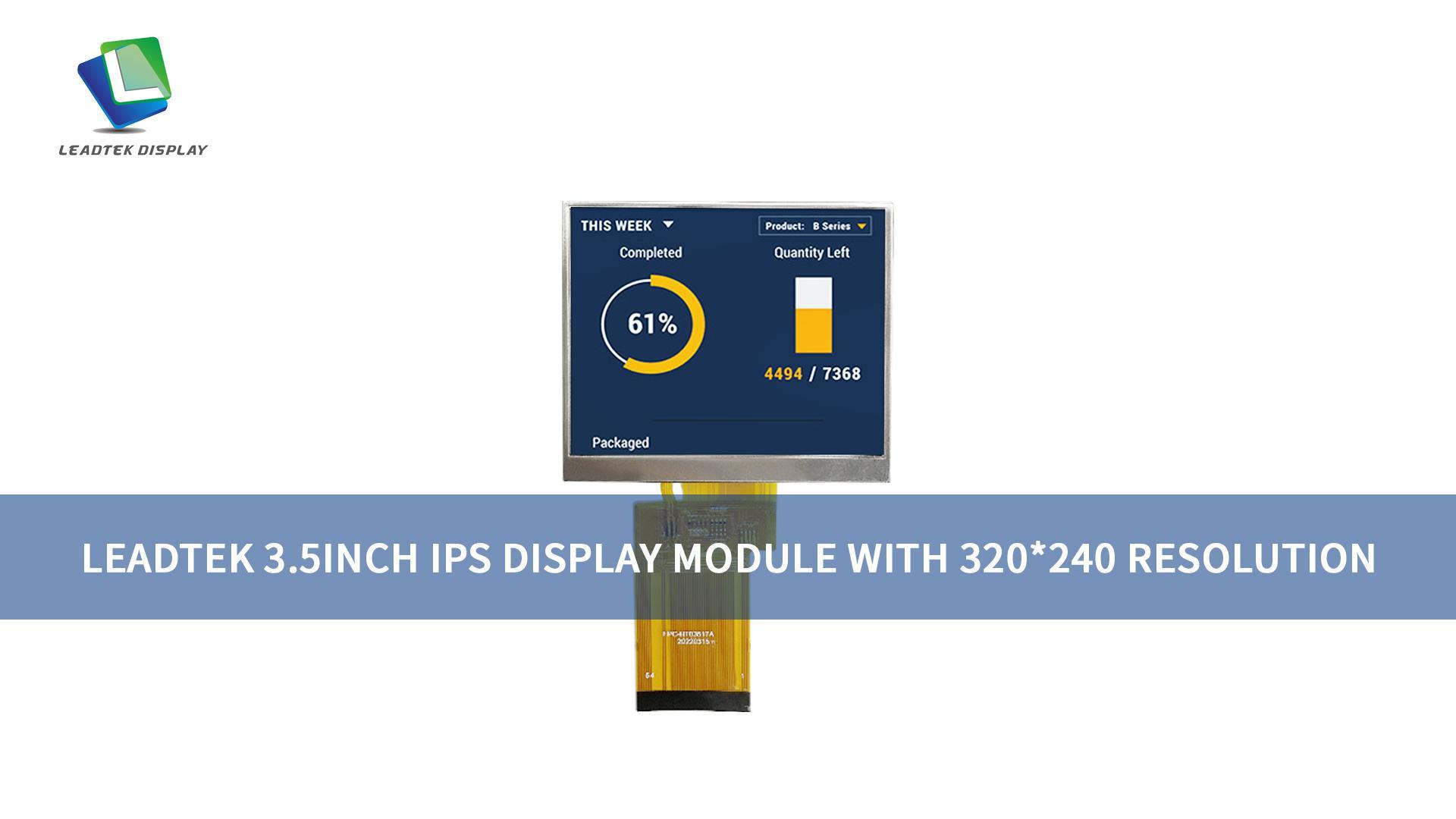

3.5 Inch 320*240 TFT LCD Modules with RGB Interface
LTK035QVBLM01-V2 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This panel module has an effective display area of 3.5 inches measured diagonally, a resolution of (320*240 square pixels), a brightness of 320nits, and an RGB interface. The Active Area is 70.08(W)×52.56(H)
- Product Details
PRODUCT PARAMETER
| Size (inch) | 3.5 |
| Part Number. | LTK035QVBLM01-V2 |
| Display Mode | IPS |
| Resolution | 320*240 |
| Interface | RGB |
| Luminance (cd/m²) | 320 |
| Active Area (mm) | 70.08*52.56 |
| Outline Dimension (mm) | 76.90*63.90*3.20 |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
