3.5 Inch 800*640 IPS UART Display Module for Smart Transportation

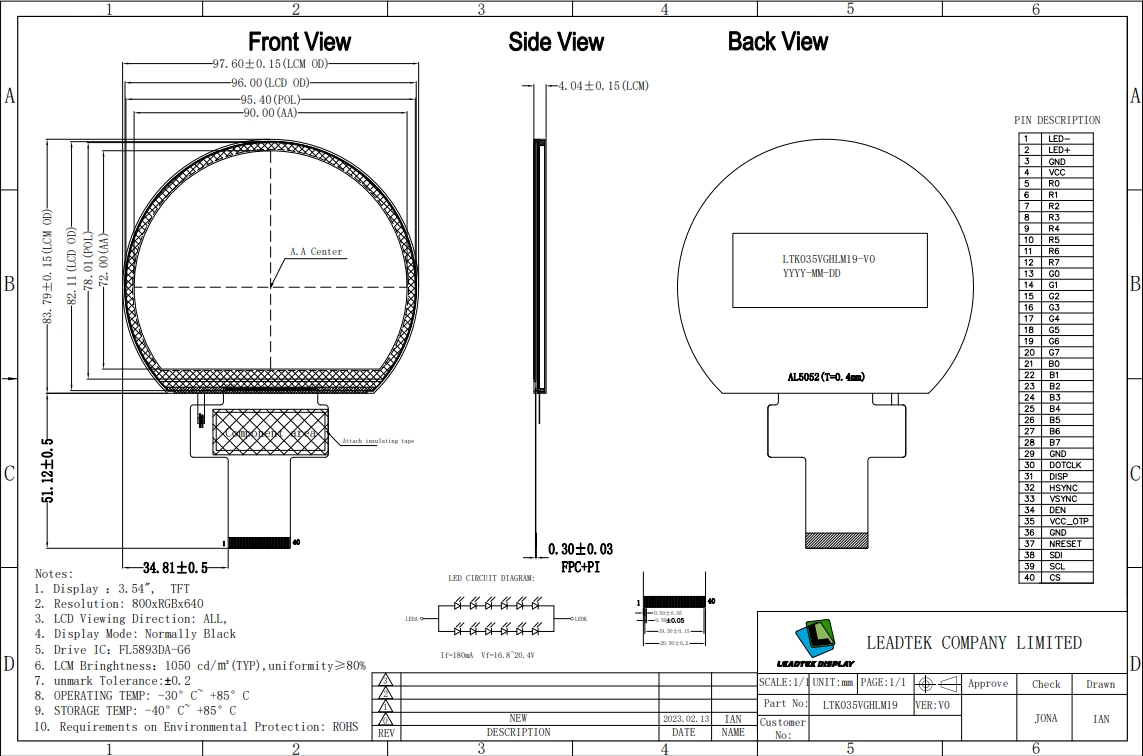

The LTK035VGHUM19-V0 model has an IPS viewing angle and a resolution of up to 800*640, which can provide clear viewing. The size is 97.60*83.79*4.04(mm, and the effective area is 90.00*72.00(mm), which has ample display space. It is connected via an RGB interface. The operating temperature range is -30~+85℃, and the storage temperature range is -40~+85℃, which is suitable for smart transportation applications.
- Product Details
|
Part Number |
LTK035VGHUM19-V0 |
|
Display Mode |
IPS |
|
Resolution |
800*640 |
|
LCM A.A (mm) |
90.00*72.00 |
|
LCM O.D (mm) |
97.60*83.79*4.04 |
|
LCM Luminance |
1050 |
|
Signal Input |
RGB |
|
Signal Output |
UART TTL&232&485 |
|
PCB Outline |
56.00*66.00 |
|
Operating Temp |
-30~+85℃ |
|
Storage Temp |
-40~+85℃ |
|
Power |
5V/2A |
|
Touch Screen |
/ |
|
TPM Luminance |
/ |
