TFT supplier LCD panel 3.5 inch resolution 320*480 High quality liquid crystal display
3.5-inch portrait IPS display, model LTK035P4046TX-V0. With a resolution of 320*480, it can present clear and vivid visual effects. The active area is 49.56*74.04 mm, and the overall size is 54.48*84.71*2.30 mm. Equipped with MCU/SPI interface and 400 cd/㎡ brightness, it can present bright and clear images. It is very suitable for smart home applications.
- Product Details

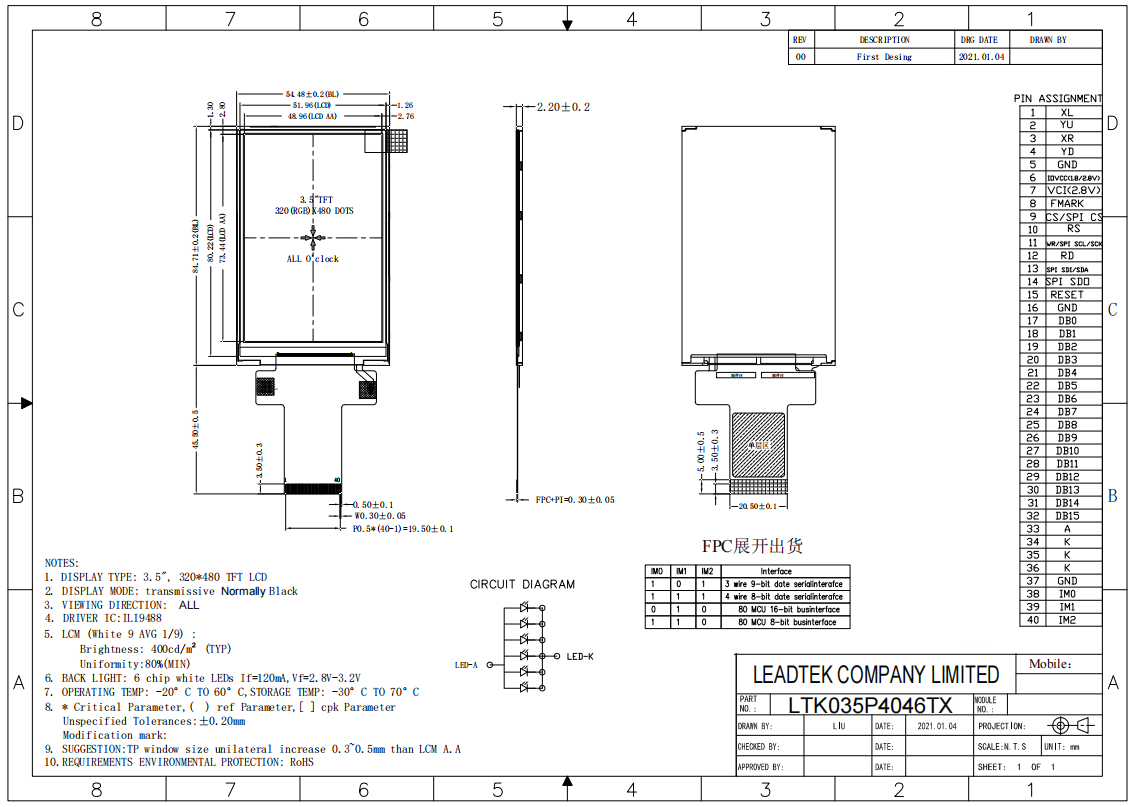

| Part Number. | LTK035P4046TX-V0 |
|
Size (inch) |
3.5‘’ |
| Resolution | 320*480 |
| Viewing Angle | IPS |
|
Interface |
MCU/SPI |
|
Expandable interface |
RGB |
|
Luminance (cd/m²) |
400 |
| Active Aera (mm) | 48.96*73.44 |
| Outline Dimension (mm) | 54.48*84.71*2.30 |
|
Driver IC |
ILI9488 |
| Operating Temp | -20~+60℃ |
| Storage Temp | -30~+70℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
