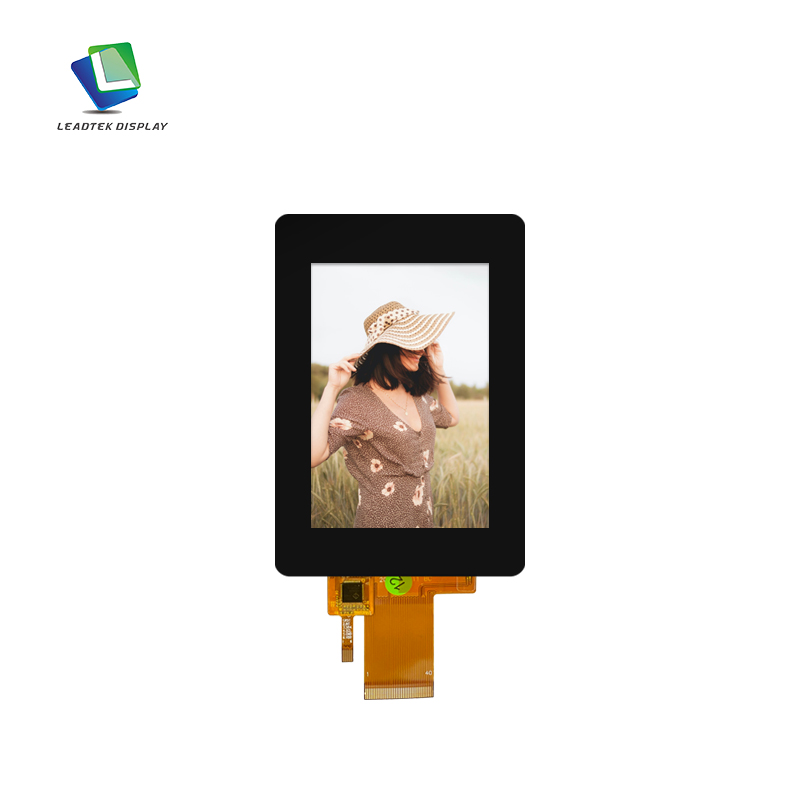

3.5 inch TFT LCD With 320*480 Resolution Display, SPI/MCU Interface

Part Number.	LTK035P4046TX-09QC-V1
Size (inch)	3.5''
Display Mode	IPS
Resolution	320*480
Interface	MCU/SPI
Expandable interface	RGB
Luminance (cd/m²)	340
Active Area (mm)	48.96*73.44
LCM Outline Dimension (mm)	54.48*84.71*2.30
LCM+CTP Outline Dimension (mm)	70.80*102.80*6.20
Touch Screen	CTP
CTP Type	GG
CTP Driver IC	HY4633-N048
CTP Interface	IIC
Operating Temp	-20~+60℃
Storage Temp	-30~+70℃

LTK035P4046TX-09QC-V1 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model consists of a TFT LCD and a drive circuit. This TFT LCD has an effective display area of 3.5 inches measured diagonally and a resolution of (320*480 vertical pixels). It has an MCU/SPI interface, the LCM+CTP display area is 70.80*102.80*6.20mm, and it has a CTP touch function that supports wet hand touch. Its operating temperature is -20~+60℃, which is very suitable for home applications.
