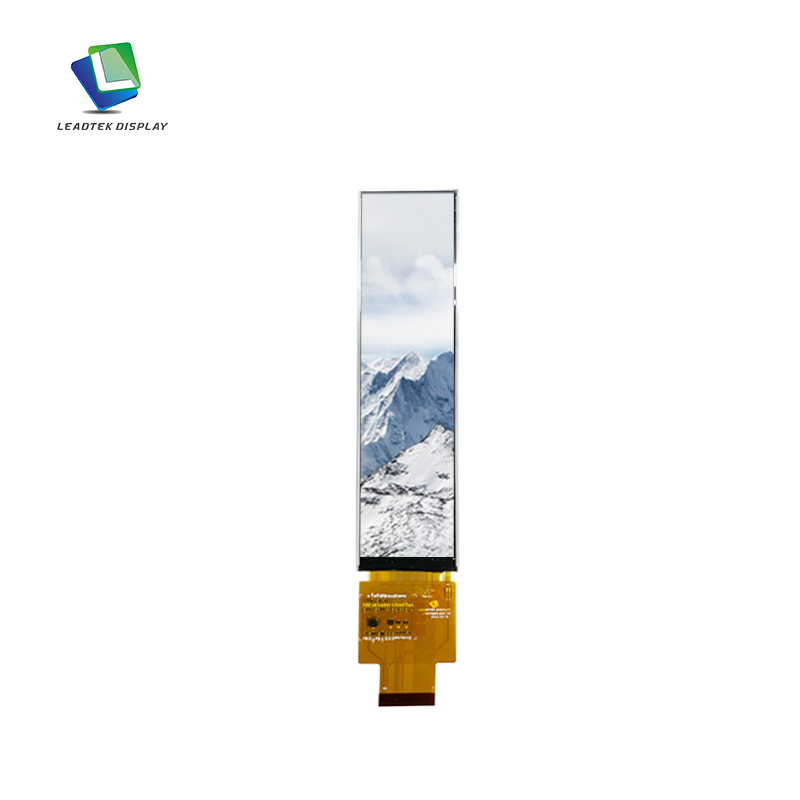

3.7 INCH 172*640 Compact IPS LCD Module for Smart Home Applications

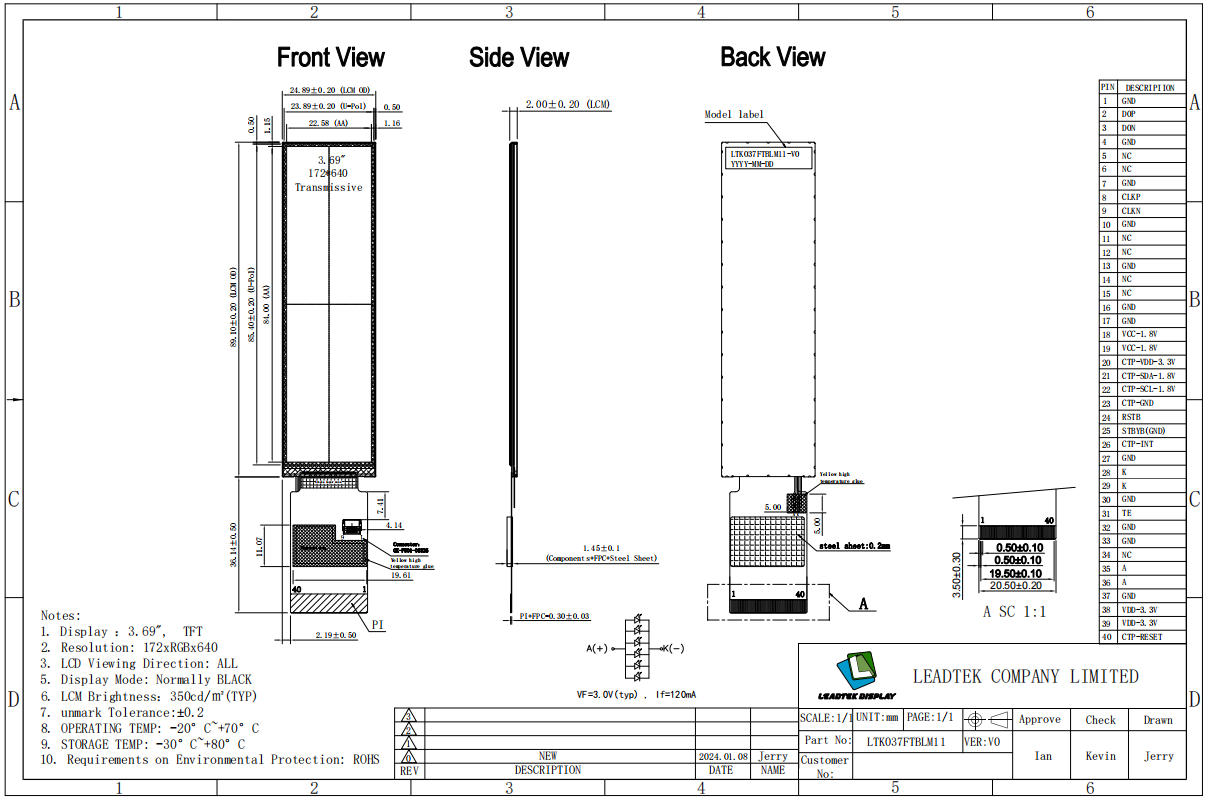

LTK037FTBLM11-V0 is a 3.7-inch IPS LCD display with a resolution of 172*640 pixels, supports MIPI interface, and a brightness of 350.0 cd/m². The screen size is 22.58*84.00 mm, and the overall size of the module is 24.89*89.10*2.00 mm. The module IC model is AXS15231B. The operating temperature range of this display is -20℃ to +70℃, and the storage temperature range is -30℃ to +80℃. The bar design is suitable for use in home smart control panels.
- Product Details
| Size (inch) | 3.7 |
| Part Number. | LTK037FTBLM11-V0 |
| Display Mode | IPS |
| Resolution | 172*640 |
| Interface | MIPI |
|
Expandable interface |
QSPI+RGB |
| Luminance (cd/m²) | 350 |
| Active Area (mm) | 22.58*84.00 |
| Outline Dimension (mm) | 24.89*89.10*2.00 |
| Module IC Model | AXS15231B |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
