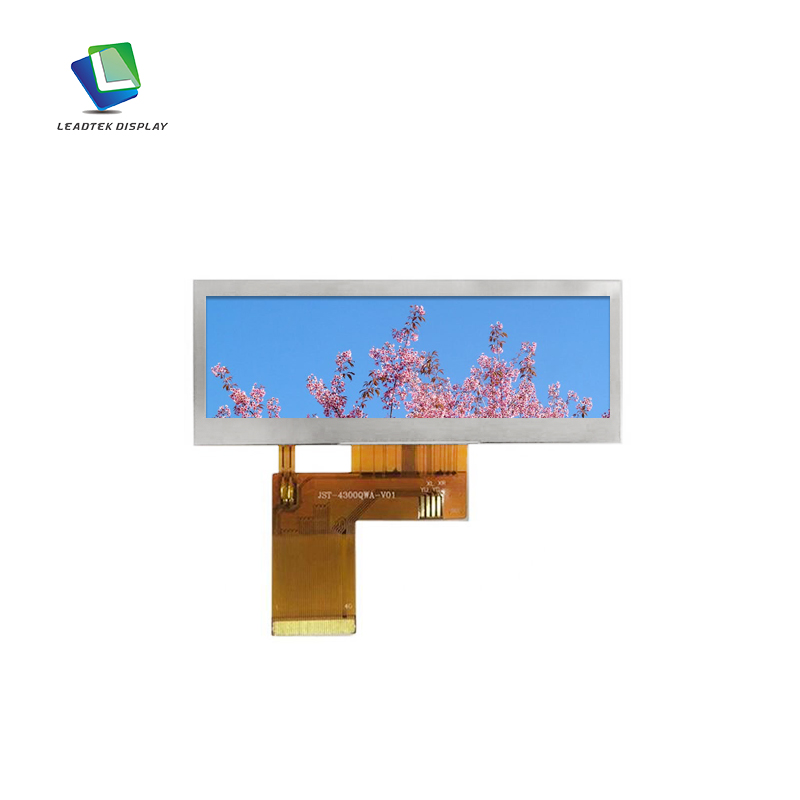

3.9" Normally Black TFT LCD, 480x128 Resolution, RGB Interface
The LTK039MNBLM11-V0 3.9-inch display features a resolution of 480x128 pixels with an RGB interface, offering sharp and vibrant visuals on a normally black background. The active area measures 95.04(H) x 25.34(V) mm, with overall dimensions of 103.20(W) x 34.85(L) x 2.50(H) mm. This display operates within a temperature range of -20℃ to +70℃, making it ideal for various applications, including consumer electronics and industrial controls, even in demanding environments.
- Product Details
| Size (inch) | 3.9 |
| Part Number. | LTK039MNBLM11-V0 |
| Display Mode | IPS |
| Resolution | 480*128 |
| Interface | RGB |
| Luminance (cd/m²) | 500 |
|
Module IC Model |
ST7282A |

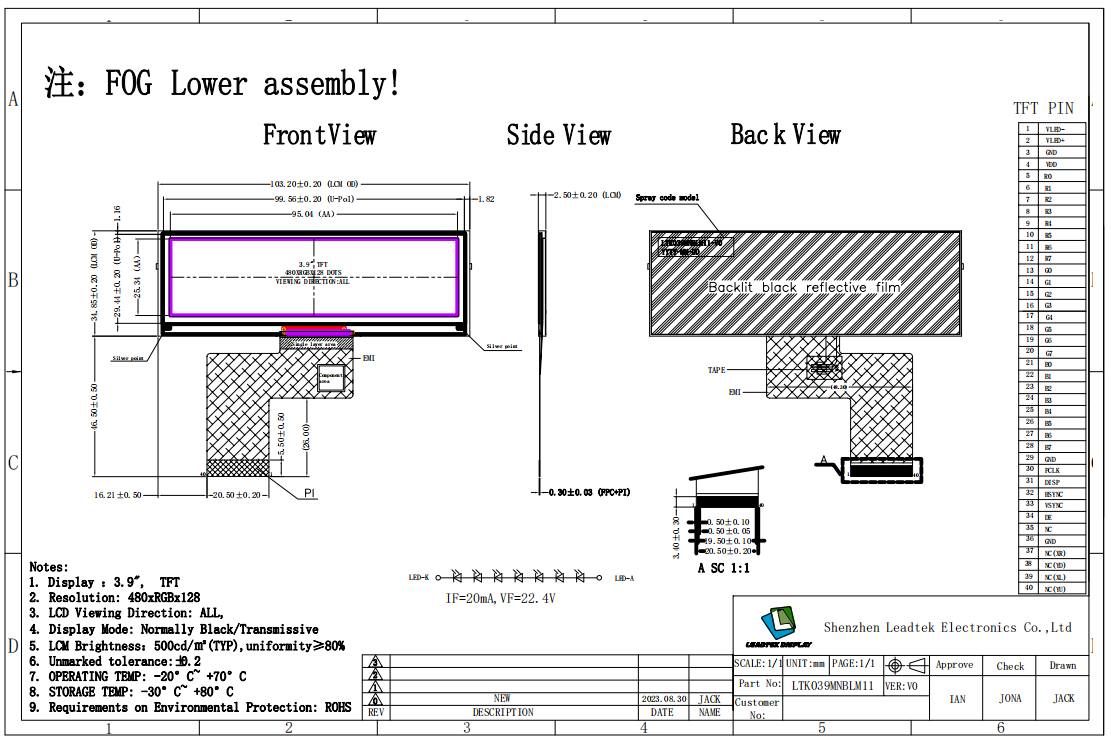

| Active Area (mm) | 95.04(H)x25.34V) |
| Outline Dimension (mm) | 103.20 (W) x34.85(L) x2.50(H) |
| Operating Temp | -20℃~ +70℃ |
| Storage Temp | -30℃~ +80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
