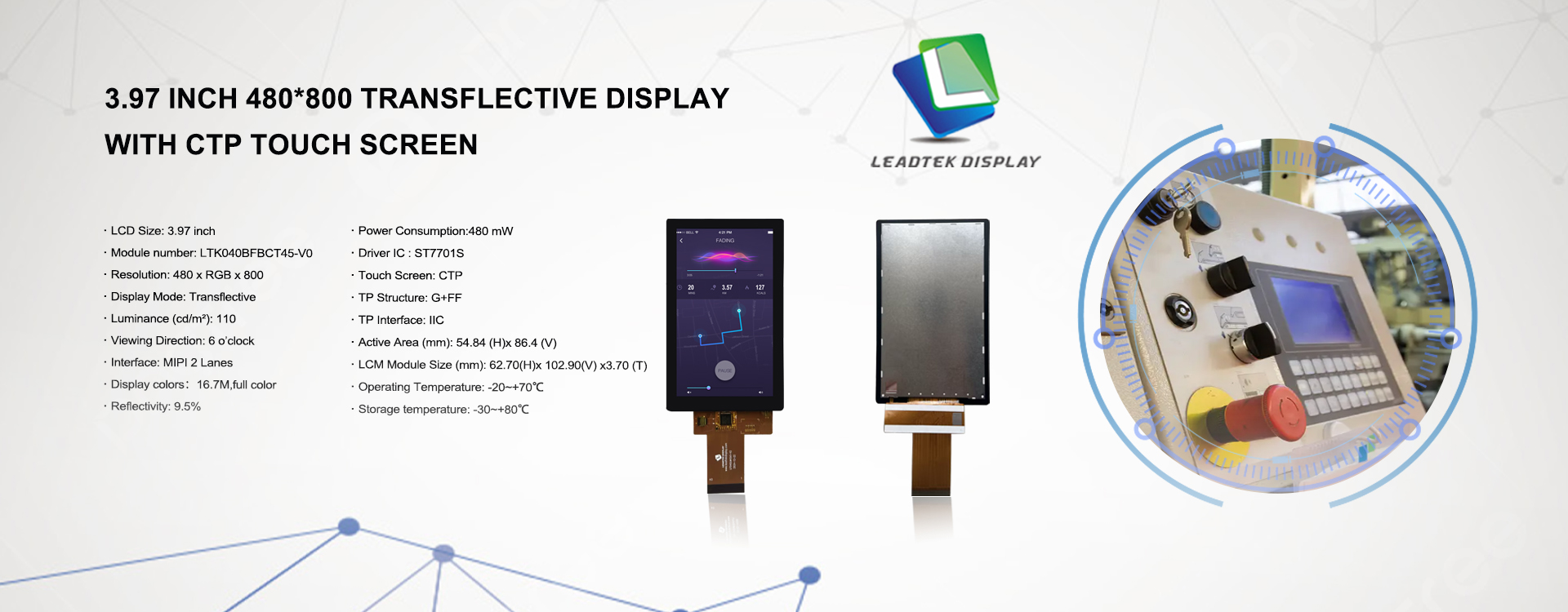

3.97 Inch 480*800 Transflective Display with CTP Touch Screen

Welcome to Leadtek! Today we are going to introduce a new product 3.97-inch LCD module. Featuring a Transflective display that combines transmissive and reflective technologies for optimal visibility in both bright sunlight and low-light conditions. With a resolution of 480 x RGB x 800, 16.7M colors, and delivers sharp, vibrant visuals.
The module operates in temperatures from -20°C to +70°C and supports a MIPI 2-lane interface for efficient data transmission. Its compact size (62.70*102.90*3.70 mm) and robust design make it ideal foroutdoor handheld devices, industrial controls, and vehicle displays, ensuring reliable performance in harsh environments.

key Features:

· Sunlight Readability

· High Resolution

· Wide Viewing Angle

· Low Power Consumption

Basic Parameters：
✅LCD Size:3.97 inch

✅Module number: LTK040BFBCT45-V0

✅Resolution:480 x RGB x 800
✅DisplayMode:Transflective

✅Luminance (cd/m²): 110
✅Viewing Direction: 6, o’clock

✅Interface: MIPI 2 Lanes

✅Display colors：16.7M,full color

✅Reflectivity: 9.5%

✅Power Consumption:480 mW

✅Driver IC : ST7701S

✅Touch Screen:CTP

✅TP Structure:G+FF

✅TP Interface:IIC

✅Active Area (mm): 54.84 (H)x 86.4 (V)
✅LCM Module Size (mm): 62.70(H)x 102.90(V) x3.70 (T)

✅Operating Temperature: -20~+70℃

✅Storage temperature: -30~+80℃

If you want to know more about this product, please leave a message or contact us.
