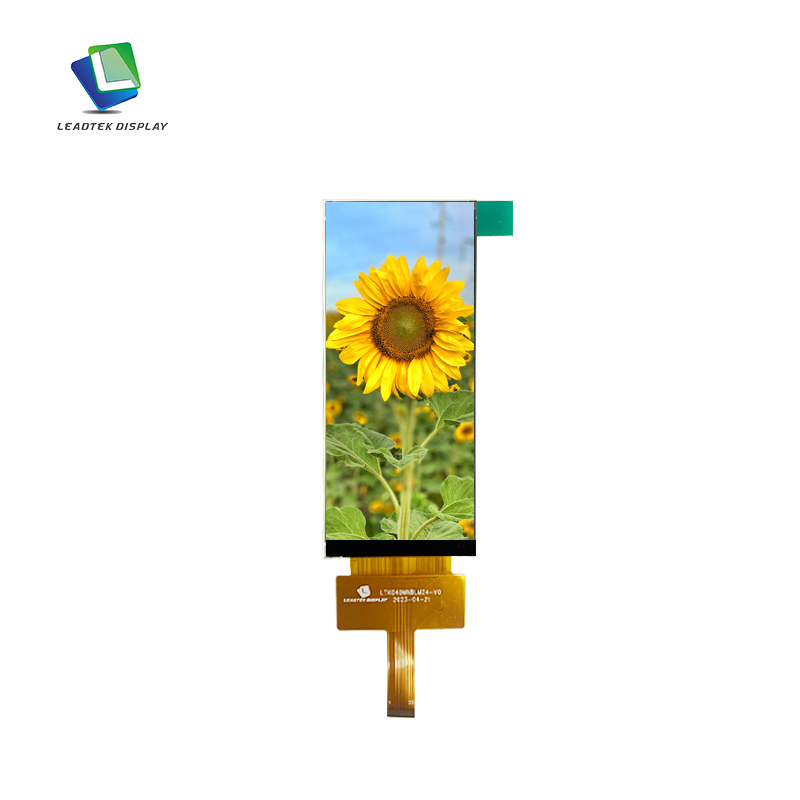

3.99 Inch 400*960 Bar Type TFT LCD Module with MIPI Interface
LTK040MNBLM24-V0is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT Bar Display and a driving circuit. It has a resolution of 400*960 and an Active Area of 39.18*94.03mm. The operating temperature is -20~+70℃ and the storage temperature is -30~+80℃.
This model is composed of a TFT Bar Display and a driving circuit. It has a resolution of 400*960 and an Active Area of 39.18*94.03mm. The operating temperature is -20~+70℃ and the storage temperature is -30~+80℃.
- Product Details
|
Part Number. |
LTK040MNBLM24-V0 |
| Size(inch) | 3.99 |
|
Display Mode |
IPS |
|
Resolution |
400*960 |
|
Interface |
MIPI |
|
Expandable interface |
SPI+RGB |
| Luminance (cd/m²) |
480 |
|
Active Area(mm) |
39.18*94.032mm |
|
Outline Dimention(mm) |
42.90*102.08*2.19mm |
|
Operating Temperature |
-20℃-70℃ |
|
Storage Temp |
-30℃-80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
