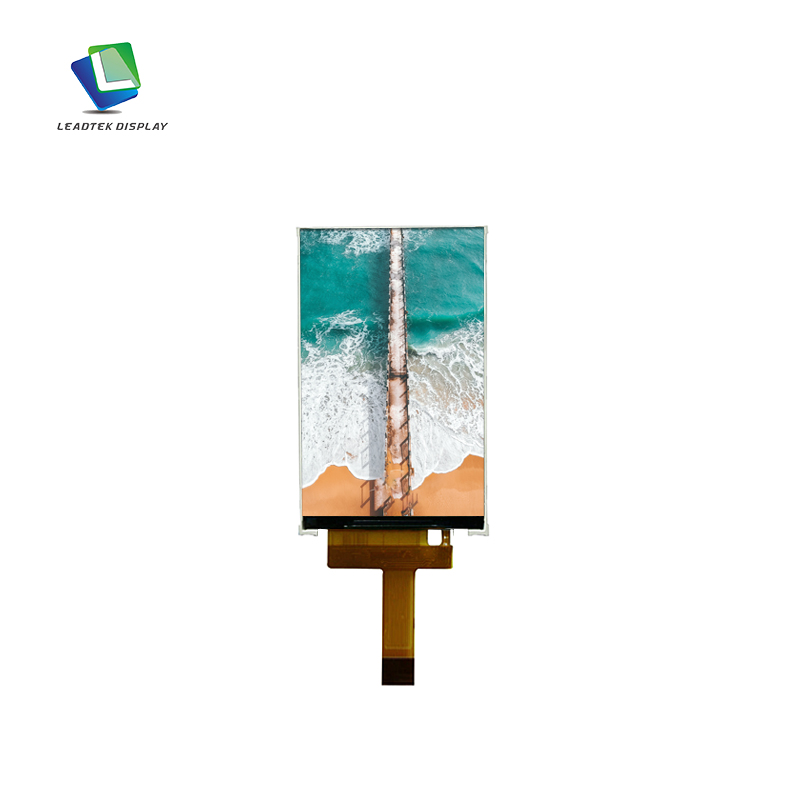

4 inch 480*800 tft lcd display used for pos machine
Leadtek Display model LTK040WVBLM13-V0 is a transmissve TFT LCD display.
This LCM has a 4 inch diagonally measured active display area with 480 horizontal by 800 vertical pixel resolution. The Active Area of this module is 51.84*86.40mm, and the Outline Dimension is 57.14*96.85*2.00mm.
This LCM has a 4 inch diagonally measured active display area with 480 horizontal by 800 vertical pixel resolution. The Active Area of this module is 51.84*86.40mm, and the Outline Dimension is 57.14*96.85*2.00mm.
- Product Details
|
Part Number |
LTK040WVBLM13-V0 |
| Size(inch) | 4.0 |
|
Display Mode: |
TN |
|
Resolution |
480*800 |
|
Luminance (cd/m²) |
350 |
|
Interface |
MIPI |
|
Expandable interface |
RGB/MCU |
| Active Area(mm) |
51.84*86.40 |
| Outline Dimention(mm) |
57.14*96.85*1.96 |
|
Operating Temp |
-10~+60℃ |
|
Storage Temp |
-20~+70℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
