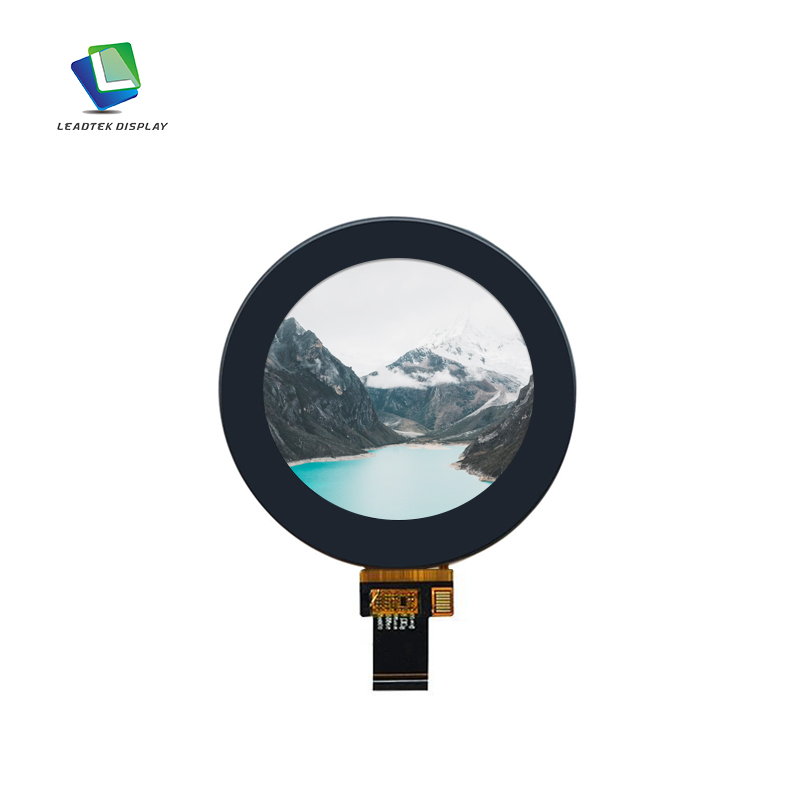

4.0" 720*720 Resolution circular lcd panel
The 4.0" round display uses an IPS LCD module with a resolution of 720*720 pixels, operates via a MIPI interface, and has a brightness of 400.0 cd/m². The effective display area spans 101.52*101.52 mm, and the overall dimensions are 109.21*113.47*3.73 mm. Equipped with capacitive touch screen (CTP) technology, it can operate reliably in a temperature range of -20℃ to +70℃ and can be stored at temperatures of -30℃ to +80℃. It is designed for smart home applications to ensure clear, high-quality visuals and stable operation in a variety of environmental conditions.
- Product Details
| Size (inch) | 4.0 |
| Part Number. | LTK040MNBCT18-V0 |
| Display Mode | IPS |
| Resolution | 720*720 |
| Interface | MIPI |
|
Expandable interface |
SPI+RGB |
| Luminance (cd/m²) | 400 |
|
Module IC Model |
NV3051F |
| Active Area (mm) | 101.52*101.52 |

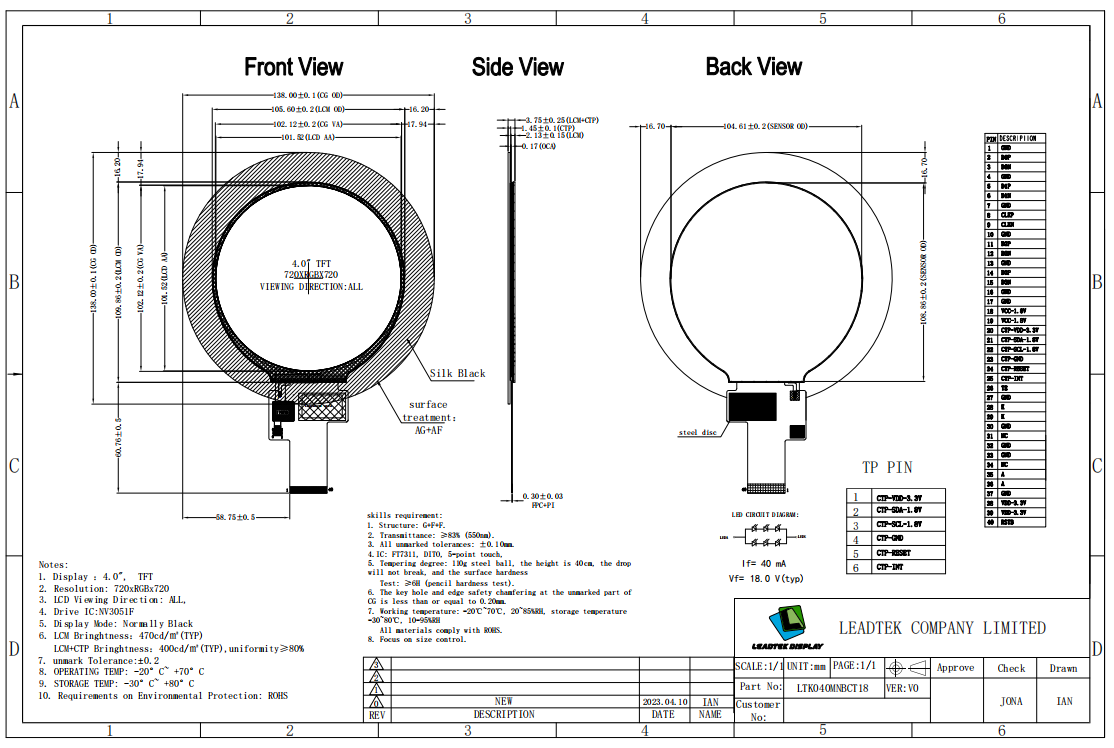

| Outline Dimension (mm) | 109.21*113.47*3.73 |
| Touch Screen | CTP |
| TP Structure |
GFF |
|
TP IC Model |
CST836U |
| TP Interface |
IIC |
| Operating Temp | -20~+70℃ |
| Storage Temp | -30~+80℃ |
