4.0 Inch 480*800 TFT LCD Display Customizable

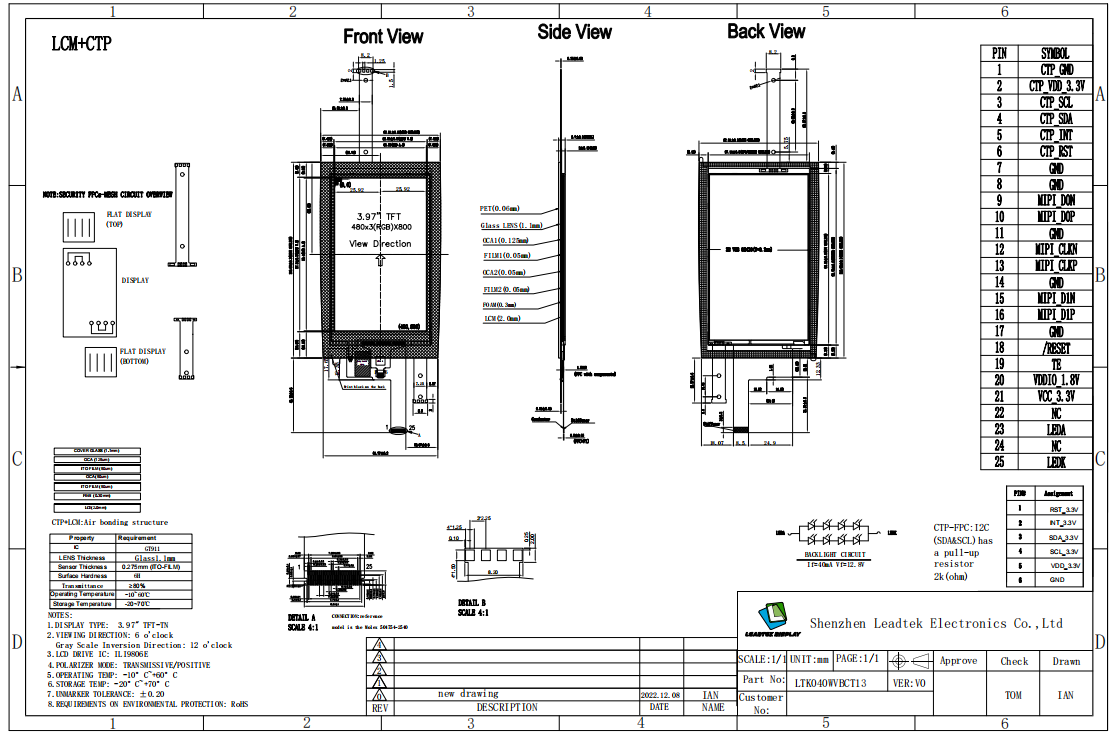

The LTK040WVBCT13-V0 3.97-inch display features a TN panel with a high resolution of 480x800 pixels and a MIPI interface, ensuring clear and detailed visuals. The active area measures 51.84(H) x 86.40(V) mm, with overall dimensions of 67.51(H) x 110.55(V) x 3.7(T) mm. This display comes with a capacitive touch panel (CTP) and operates within a temperature range of -10℃ to +60℃, suitable for various applications, from consumer electronics to industrial controls.
- Product Details
| Size (inch) | 3.97 |
| Part Number. | LTK040WVBCT13-V0 |
| Display Mode | TN |
| Resolution | 480*800 |
| Interface | MIPI |
|
Expandable interface |
RGB/MCU |
| Luminance (cd/m²) | 300 |
| Active Area (mm) | 51.84(H) x 86.40 (V) |
| Outline Dimension (mm) | 67.51(H) x 110.55(V) x3.7 (T) |
| Touch Screen | CTP |
|
TP Structure |
GFF |
|
TP Module IC Model |
GT911 |
| TP Interface |
IIC |
| Operating Temp | -10℃~ +60℃ |
| Storage Temp | -20℃~ +70℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
