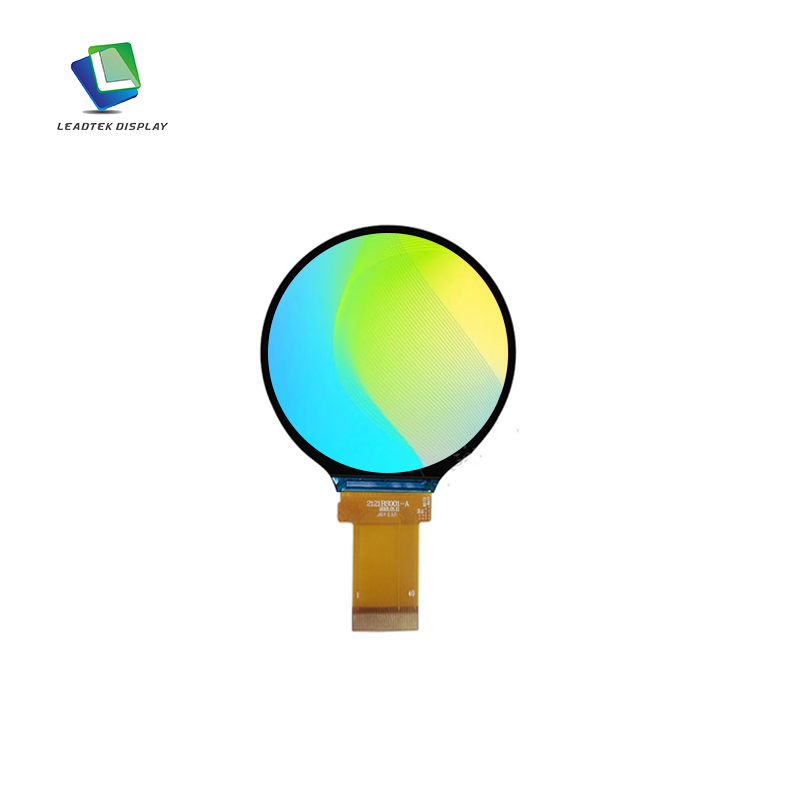

4.0 inch 720x720 Resolution circular tft display
The LTK040MNBLM18-V0 4.0-inch display features a high resolution of 720x720 pixels with IPS technology, offering vibrant and sharp visuals on a normally black background. The active area measures 101.52(W) x 101.52(H) mm, with overall dimensions of 105.60(W) x 109.87(H) x 2.13(T) mm. This display operates within a temperature range of -20℃ to +70℃, making it suitable for various applications, including consumer electronics and industrial controls, even in demanding environments.
- Product Details
| Size (inch) | 4.0 |
| Part Number. | LTK040MNBLM18-V0 |
| Display Mode | IPS |
| Resolution | 720*720 |
| Interface |
MIPI |
|
Expandable interface |
SPI+RGB |
| Luminance (cd/m²) | 470 |
|
Module IC Model |
NV3051F |

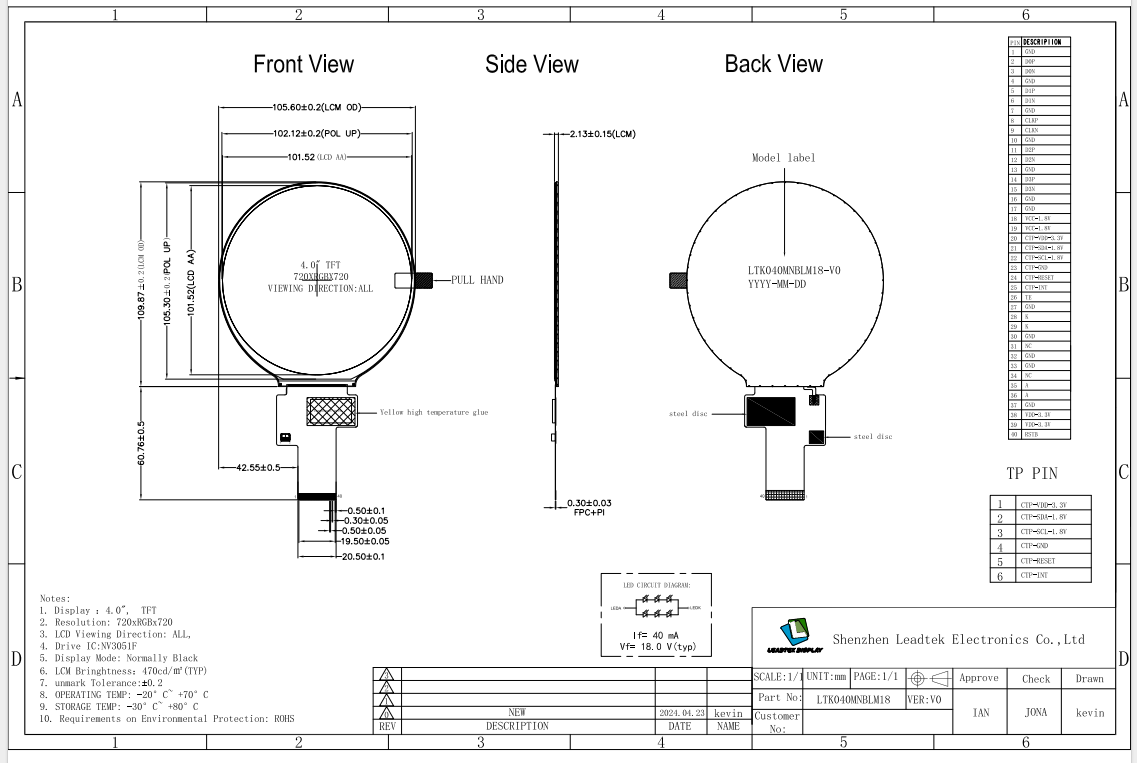

| Active Area (mm) | 101.52(W)×101.52(H) |
| Outline Dimension (mm) | 105.60(W)×109.87(H)×2.13(T) |
| Operating Temp | -20℃~ +70℃ |
| Storage Temp | -30℃~ +80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
