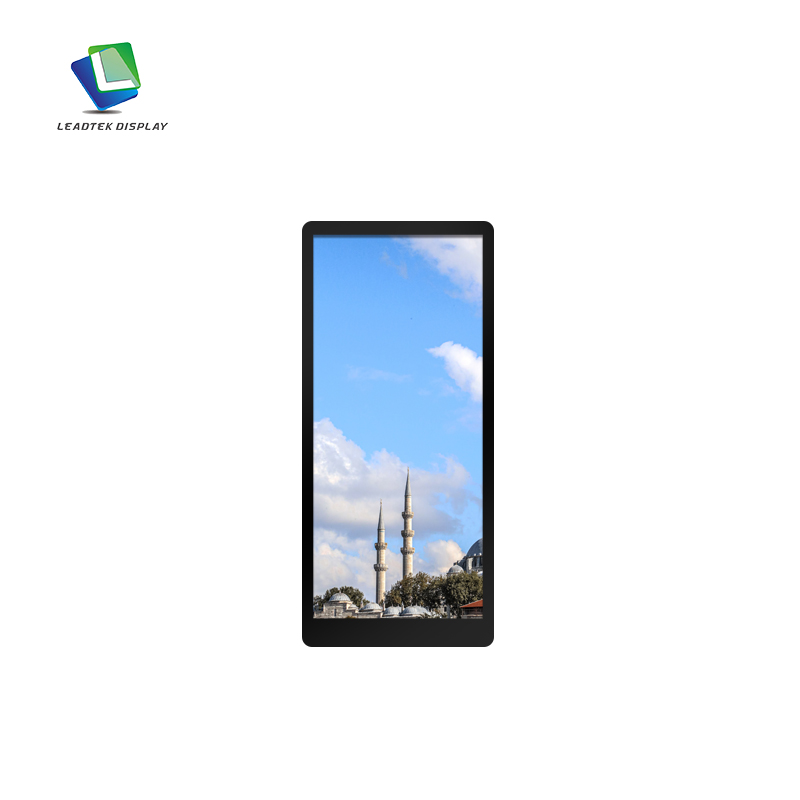

3.99 inch LCD Display with MIPI&2-lane Interface, 400*960 Resolution
The LTK040MNBCT24-V0 is a 3.99-inch stripe-shaped TFT display with Normally Black mode and 400xRGBx960 resolution. It features a MIPI 2-lane interface and offers a luminance of 480. The active area measures 39.18(H)x94.03(V) mm, and the outline dimensions are 45.90(H)x105.08(V)x4.20(T) mm. It's designed for Smart Transportation applications.
- Product Details
| Model number |
LTK040MNBCT24-V0 |
|
Size (inch) |
3.99 |
|
Display Mode |
IPS |
|
Resolution |
400*960 |
| Outline dimension(mm) |
45.90(H)x105.08(V)x4.20(T)
|
| LCD AA(mm) |
39.18(H)x94.03(V)
|
| Interface |
MIPI 2-lane
|
|
Expandable interface |
SPI+RGB |
| Brightness |
410
|
| Touch screen | CTP |
|
Touch screen structure |
GG |
|
Touch screen IC model |
GT911 |
|
Touch screen interface |
IIC |
|
Operating Temperature |
-20~+70℃ |
| Storage Temperature | -30~+80℃ |
