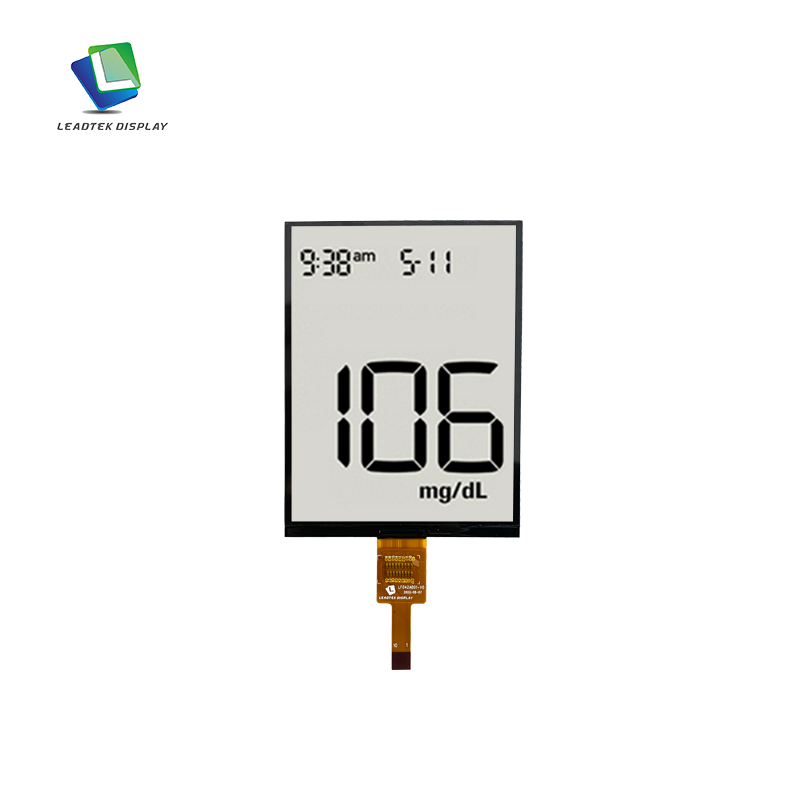

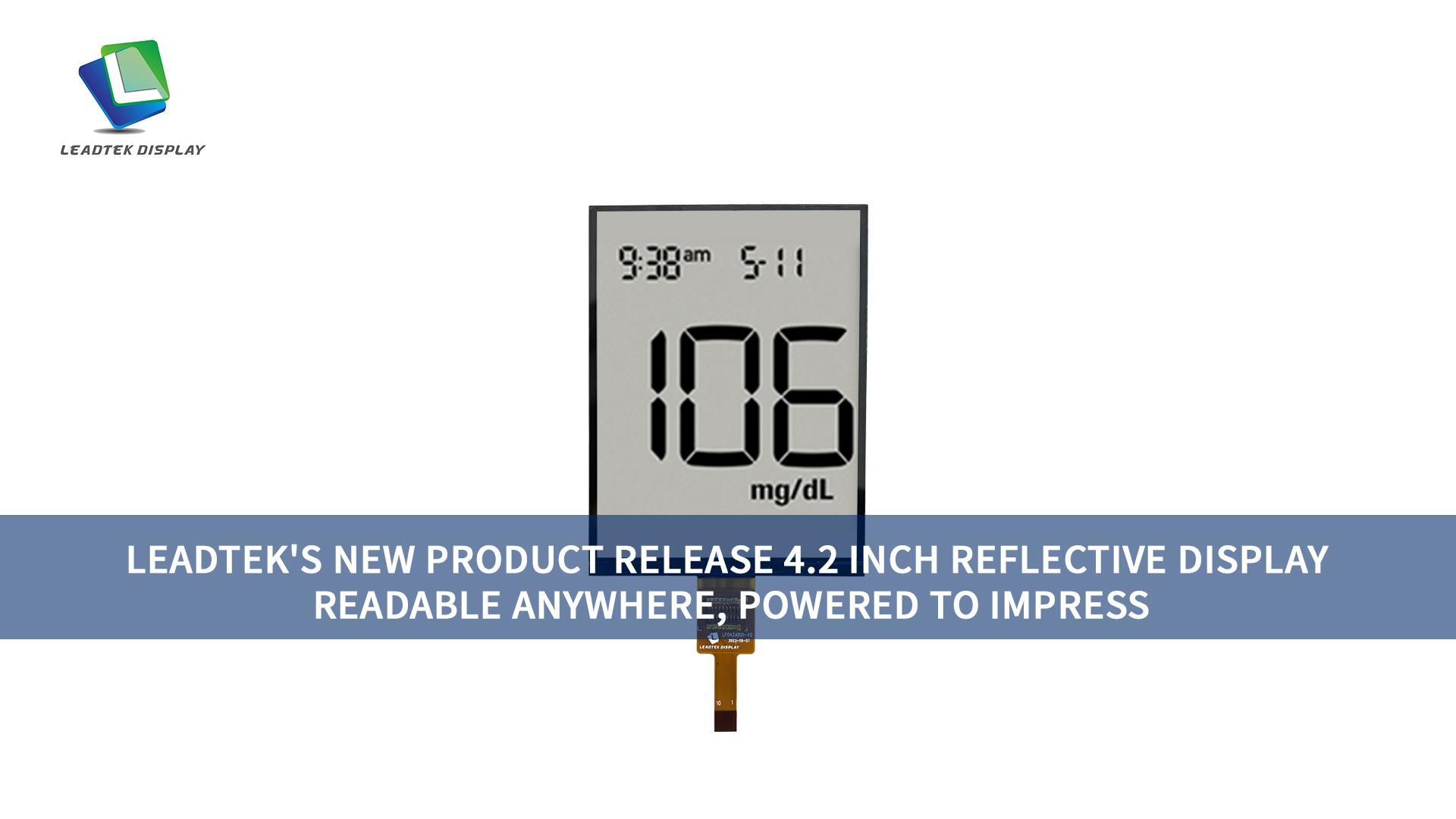

4.2 inch 300*400 SPI Reflective Sun Readable Display Module
The LTK042MNHLM14-V0 is a 4.2-inch reflective display designed for smart home applications, featuring 300x400 resolution,high contrast (15:1), and50% reflectivity for excellent readability without a backlight. Withultra-low power consumption (0.10mW) and awide operating temperature range (-20°C to +70°C), it is ideal for battery-powered devices like smart labels, thermostats, and control panels. Its SPI and MCU interface sensure easy integration, while thethin design (67.60mm × 91.00mm × 1.50mm)makes it perfect for compact smart home solutions.
- Product Details
|
Size(inch) |
4.2" |
|
P/N |
LTK042MNHLM14-V0 |
|
Resolution |
300*400 |
|
Display Type |
Reflective |
| Viewing Angle | 60/60/60/60 |
|
Interface |
SPI |
|
Expandable interface |
MCU |
| Color | B/W, 2 color |
|
Reflection Contrast |
15:1 |
|
Reflectivity |
50% |
|
Power Consumption (mW) |
0.10 |
|
Active Area (mm) |
63.60*84.80 |
|
Outline Dimension (mm) |
67.60*91.00*1.50 |
|
Touch Screen |
NA |
|
Operating Temp |
-20~+70℃ |
|
Storage Temp |
-30~+80℃ |
