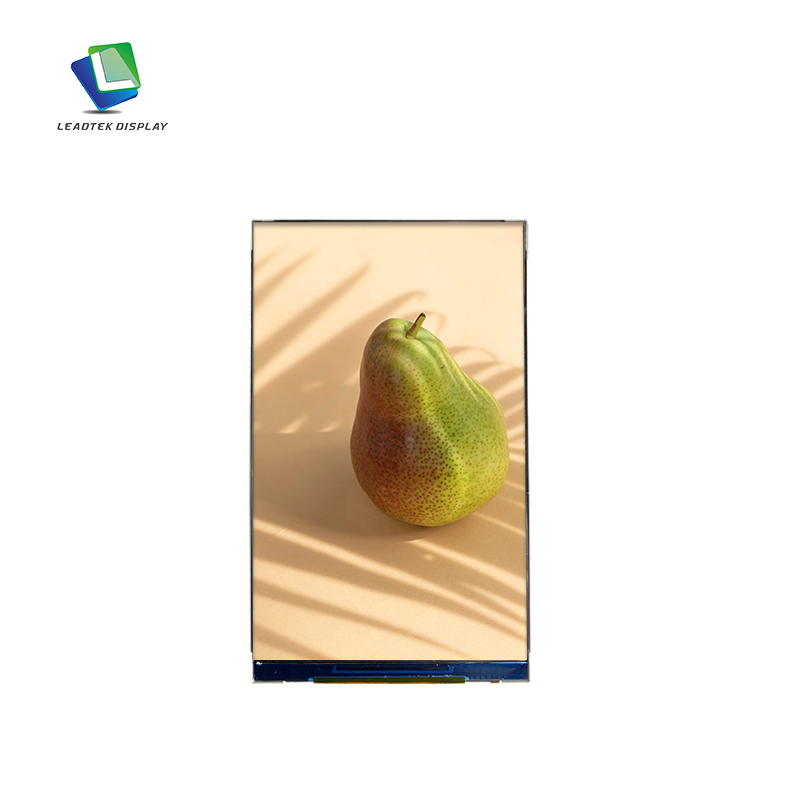

TFT LCM 4.3inch with 480*800 Resolution IPS lcd Display Panel
The LTK043WVBLM11-V0 is a 4.3-inch IPS display designed for smart home applications. It offers clear and vibrant visuals with a resolution of 480x800 and a brightness of 450 cd/m², ensuring excellent performance in various lighting conditions. The display features a slim and compact design, making it easy to integrate into space-saving smart home devices. It operates reliably in a wide temperature range, ensuring stable performance in diverse environments. This display is an ideal solution for enhancing the user experience in modern smart home systems.
- Product Details
|
Part Number. |
LTK043WVBLM11-V0 |
| Size（inch） | 4.3 |
|
Display Mode |
IPS |
|
Resolution |
480*800 |
|
Interface |
RGB |
|
Expandable interface |
MIPI |
|
Luminance (cd/m²) |
450 |
|
Active Area(mm) |
51.16 * 93.65 |
| Outline Dimension(mm) | 60.00 *101.80 *1.7 |
|
Operating Temp |
-20~+70℃ |
|
Storage Temp |
-30~+80℃ |
