4.3" IPS Display, 800x480, TTL Interface, High Brightness

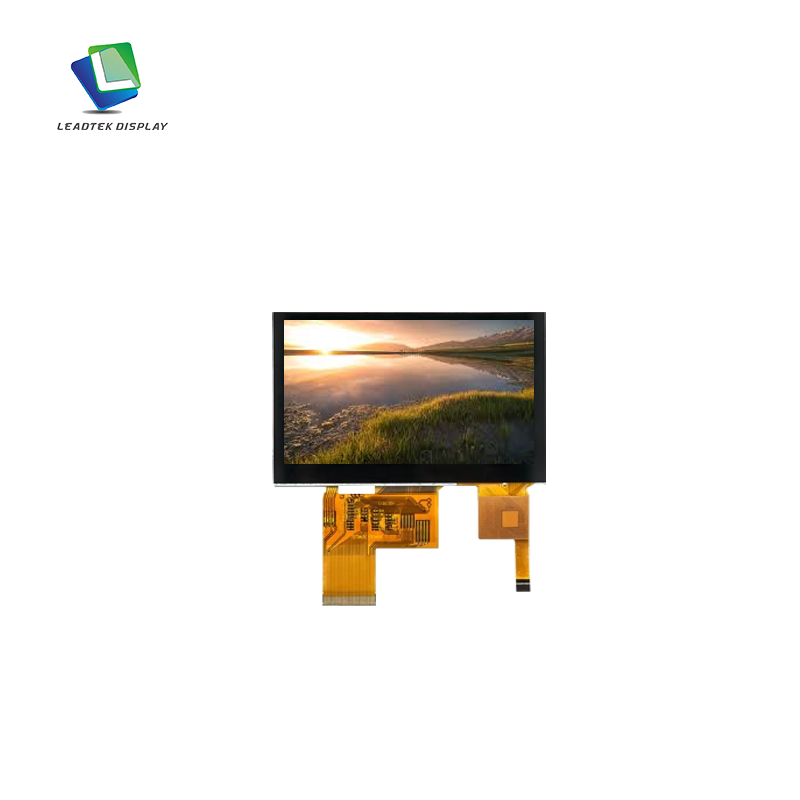

The 4.3-inch LTK043WVHUT31-V0 display delivers clear visuals with its 800x480 resolution and 650 cd/m² brightness, ideal for smart home applications. Featuring an IPS panel and TTL interface, this display ensures vibrant colors and reliable performance. It operates within a temperature range of -10°C to +60°C and has dimensions of 105.14*65.80*4.05 mm. Equipped with a capacitive touch panel and powered by a 5V/2A power supply, this display enhances user experience with responsive touch functionality.
- Product Details
PRODUCT PARAMETER

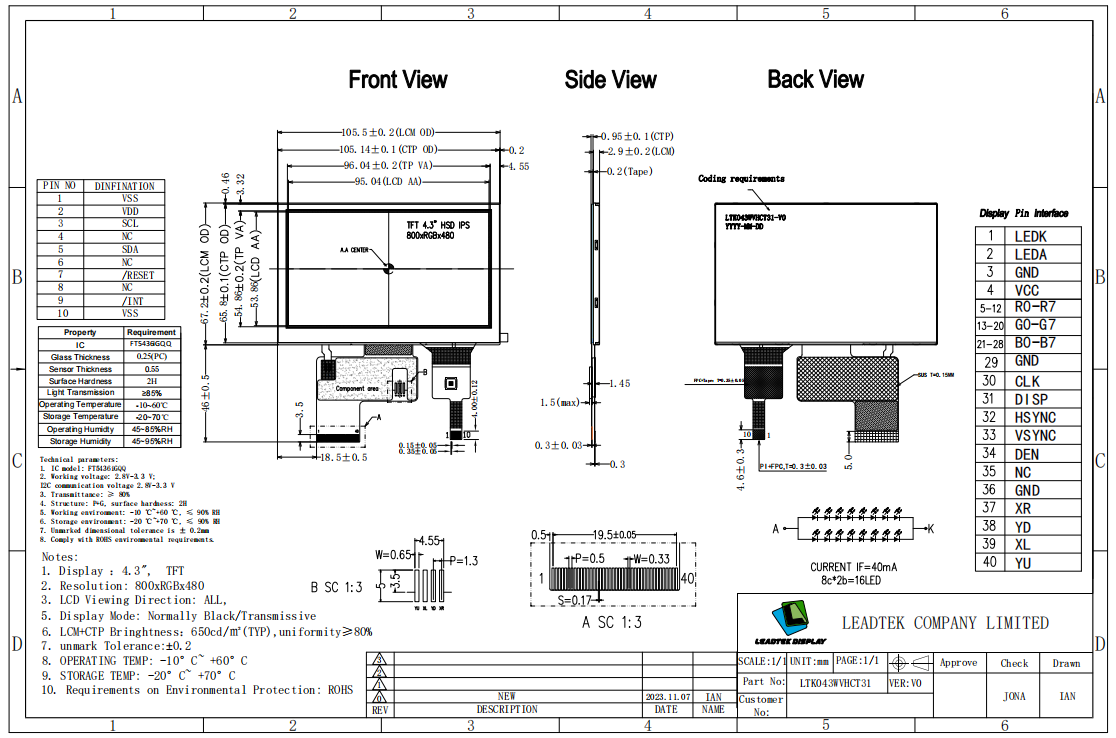

PRODUCT DRAWING
| Size (inch) | 4.3 |
| Part Number. | LTK043WVHUT31-V0 |
| Display Mode | IPS |
| Resolution | 800*480 |
| Interface(System) | UART-TTL |
| Luminance (cd/m²) | 650 |
| Active Area (mm) | 96.04*54.86 |
| Outline Dimension (mm) | 105.14*65.80*4.05mm |
| Touch Screen | CTP |
| Power Supply | 5V/2A |
| Operating Temp | -10~+60℃ |
