480*800 Resolution 4.3 Inch Wide Temperature Highbrightness TFT LCD display
LTK043WVBCT28-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a home control system device. Designed to deliver crisp and vibrant visuals, it features an IPS wide viewing angle and an impressivehighbrightness of770 cd/m².The module is supplied with 3-wire RGB interface for seamless integration and with touch CTP.Operating Temperature: -20~+70℃, Storage temperature: -30~+80℃
- Product Details
| Mode |
LTK043WVBCT28-V0 |
| Size(inch) | 4.3 |
|
Display Mode |
IPS |
|
Resolution |
480*800 |
|
Interface |
RGB |
|
Expandable Interface |
MIPI |
|
Luminance (cd/m²) |
770 |
|
Active Area(mm) |
56.16*93.60 |
|

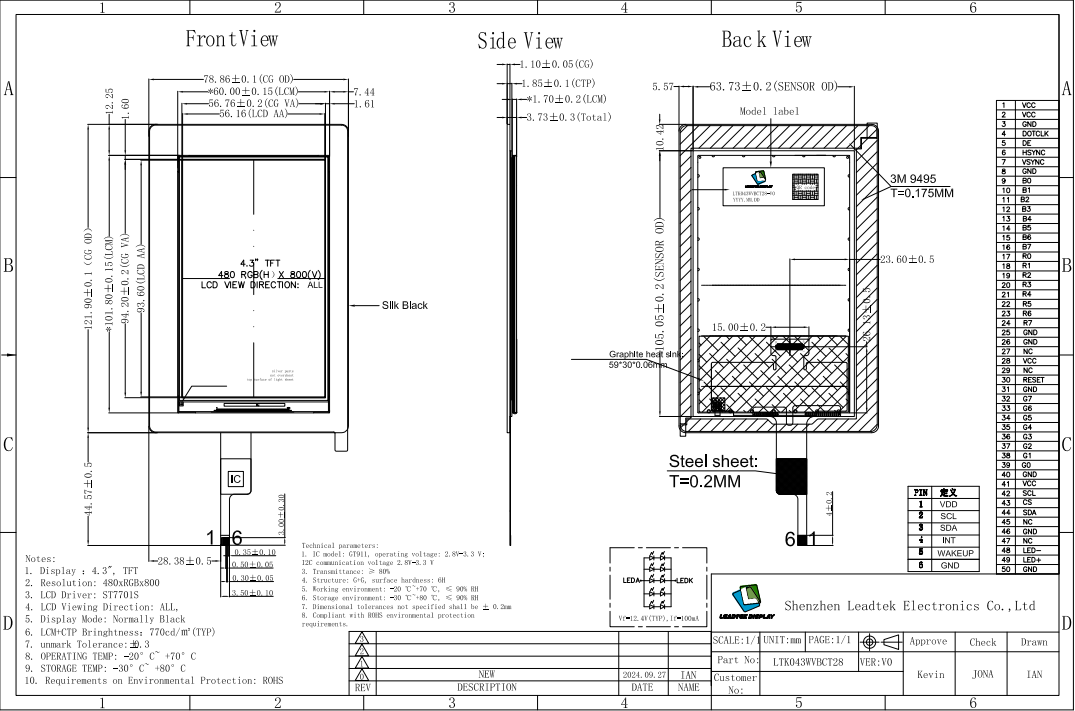

LCM+CTP Outline Dimension(mm) |
78.86*121.90*3.73 |
|
Touch Screen |
CTP |
|
TP structure |
CG |
| TP Interface |
IIC |
|
Operating Temp |
-20~+70℃ |
|
Storage Temp |
-30~+80℃ |
