4.3" TFT LCD Display, 480x800 Resolution with high brightness 900 nits

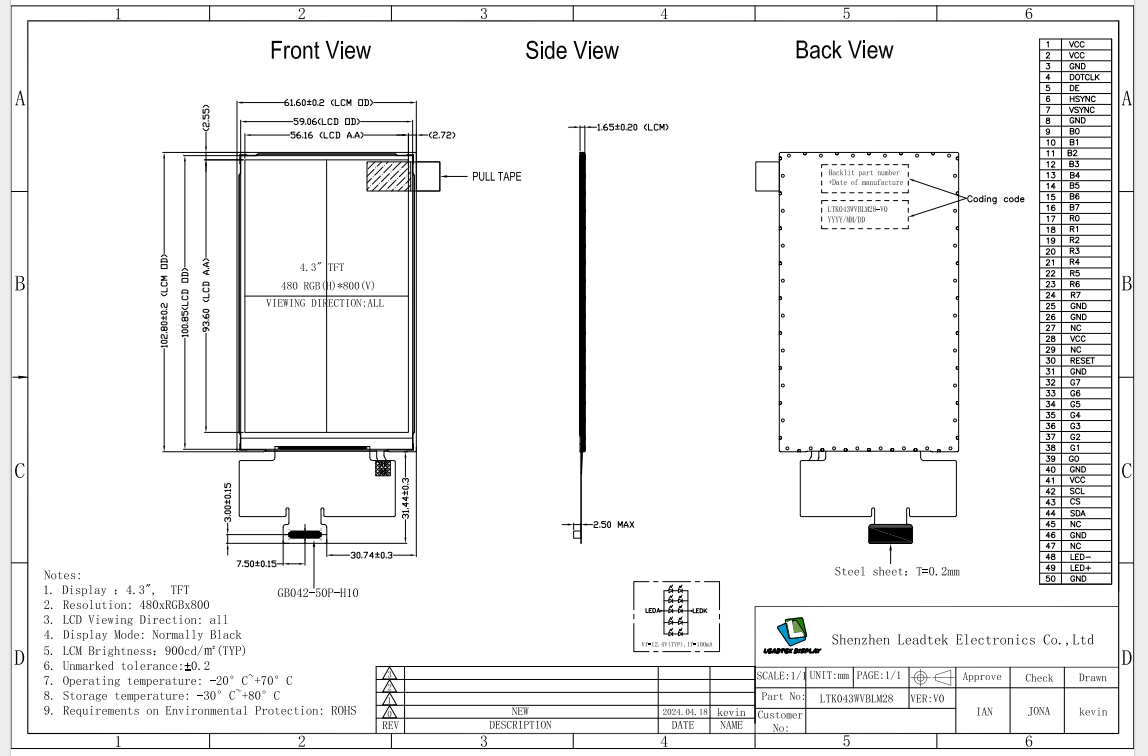

The LTK043WVBLM28-V0 is a 4.3-inch display featuring a resolution of 480x800 pixels with an RGB interface, providing clear and detailed visuals on a normally black background. The active area measures 56.16(W) x 93.60(H) mm, with overall dimensions of 60.00(W) x 101.80(H) x 1.7(T) mm. This display utilizes a CG (Chip on Glass) construction and operates within a temperature range of -20℃ to +70℃, ensuring reliable performance in various applications, including consumer electronics and industrial controls, even in demanding environments.
- Product Details
| Size (inch) | 4.3 |
| Part Number. | LTK043WVBLM28-V0 |
| Display Mode | Normally Black |
| Resolution | 480*800 |
| Interface | RGB |
|
Expandable interface |
MIPI |
| Luminance (cd/m²) | 900 |
| Active Area (mm) | 56.16*93.60 |
| Outline Dimension (mm) | 60.00*101.80*1.7 |
| Operating Temp | -20℃~ +70℃ |
| Storage Temp | -30℃~ +80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
