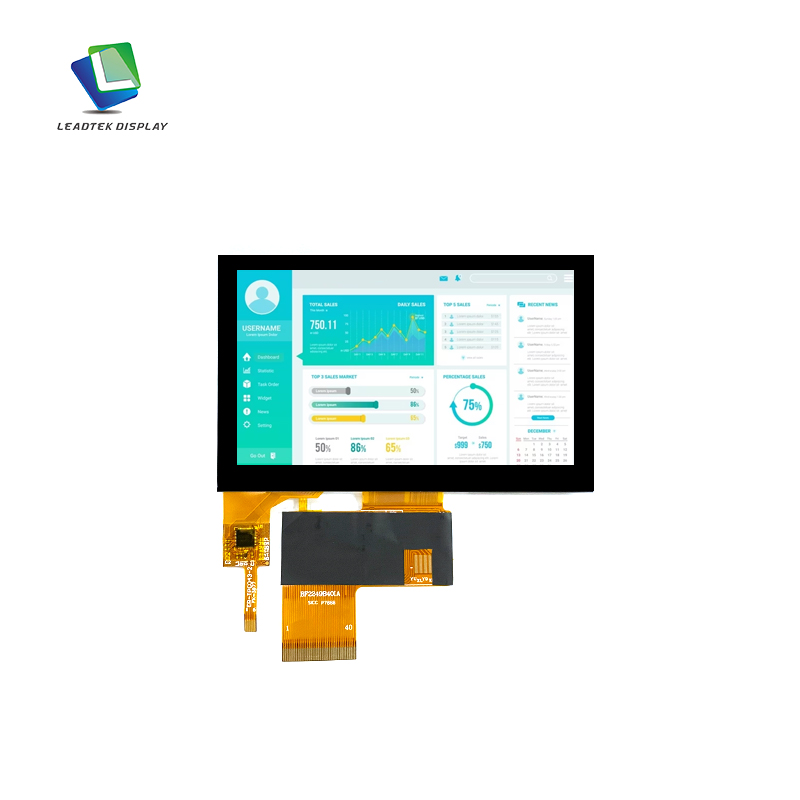

4.3 inch 800*480 Resolution high brightness TFT LCD Touch Display Screen use for outdoor equipment
LTK043WVHCT26-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a outdoor device. This model is composed of a TFT LCD panel and a Touch Panel.This TFT LCD has a 4.3 inch diagonally measured active display area with ( 800*480 pixel) resolution. It has a high brightness of 1000nits and comes with a touch screen CTP.
- Product Details
| Model number | LTK043WVHCT26-V0 |
| Size(inch) | 4.3 |
| Resolution | 800*480 |
| Viewing Direction | IPS |
| LActive Area (mm) |
95.04*53.86 |
|
Outline dimension(mm) |
105.1*66.98*4.5 |
|
Brightness |
1000 nits |
|
Driver IC |
ST2765 |
| Interface | RGB |
| Touch screen | CTP |
| Touch IC | FT5206 |
| Touch Structure | P+G |
|
Operating Temperature |
-20~+70℃ |
| Storage Temperature | -30~+80℃ |
