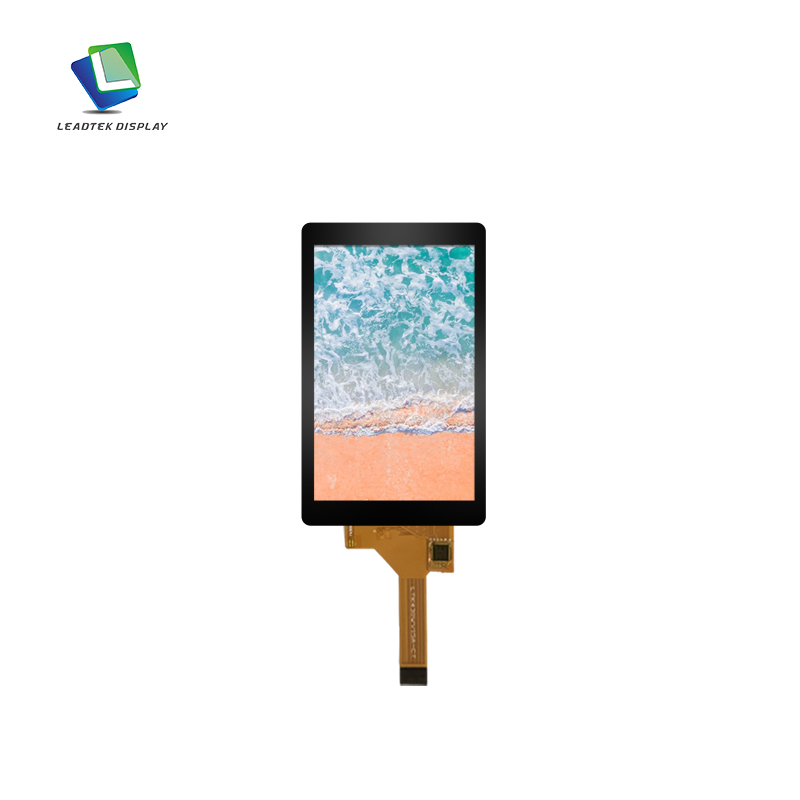

Normally Black 5 inch 720*1280 Resolution Display with RGB Interface
LTK050HDHCT13-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD and a driving circuit.This TFT LCD has a 5 inch diagonally measured active display area with (720*1280 vertical pixel) resolution.
This model is composed of a TFT LCD and a driving circuit.This TFT LCD has a 5 inch diagonally measured active display area with (720*1280 vertical pixel) resolution.
- Product Details
|
Module No. |
LTK050HDHCT13-V0 |
| Size(inch) | 5.0 |
|
Resolution |
720*1280 |
| Active Area(mm) |
62.10*110.40 |
|
Outline Dimension(mm) |
76.00*141.20*3.35 |
| luminance (cd/m²) | 260 |
|
interface |
RGB |
|
Expandable interface |
MIPI |
| Touch Screen | CTP |
|
Touch screen structure |
GG |
|
Touch screen IC model |
GT911 |
|
Touch screen interface |
IIC |
|
Operating Temp |
-10~+60℃ |
|
Storage Temp |
-20~+70℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
