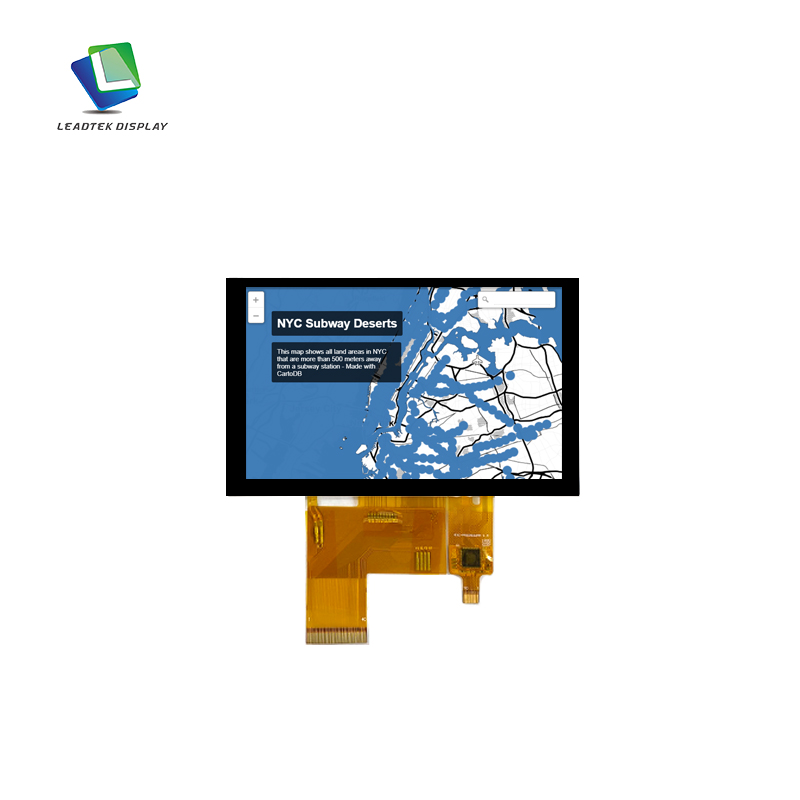

5 Inch 800*480 IPS TFT LCD Panel with Touch
LTK500WV03B-CTA-V2 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD panel and a Touch Panel.This TFT LCD has a 5 inch diagonally measured active display area with (800*480 Portrait pixel) resolution.(J)
This model is composed of a TFT LCD panel and a Touch Panel.This TFT LCD has a 5 inch diagonally measured active display area with (800*480 Portrait pixel) resolution.(J)
- Product Details
|
Module No |
LLTK500WV03B-CTA-V2 |
|
Resolution |
800*480 |
|
Display mode |
IPS |
|

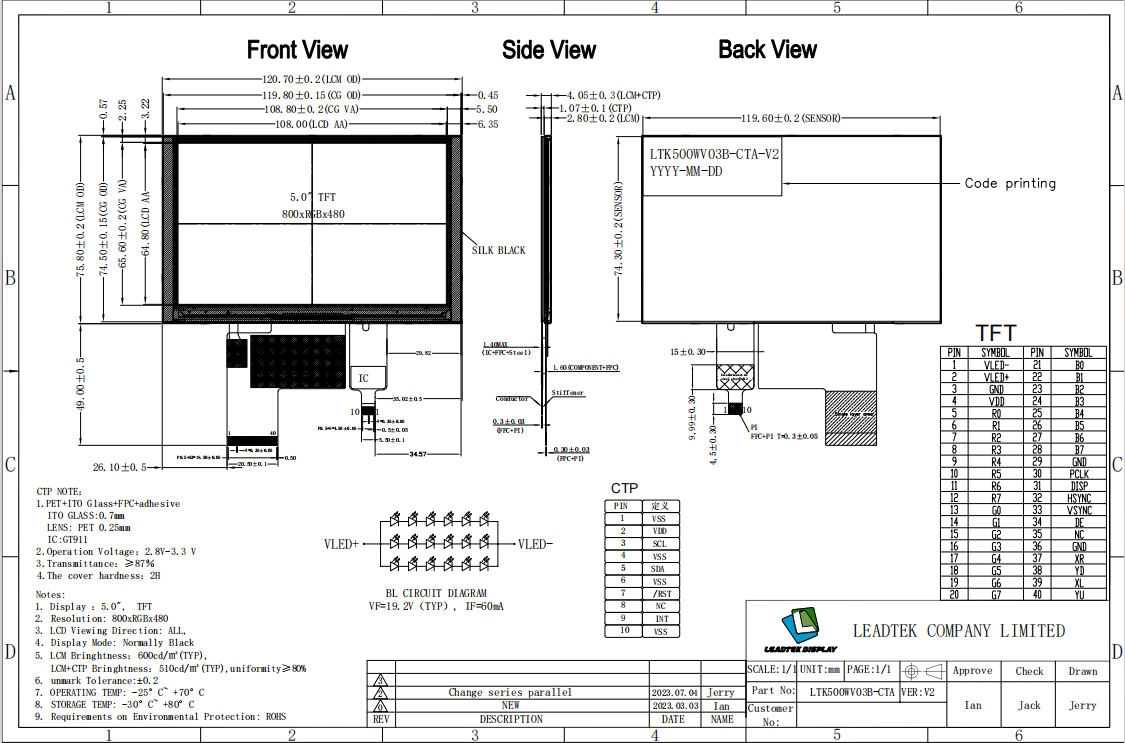

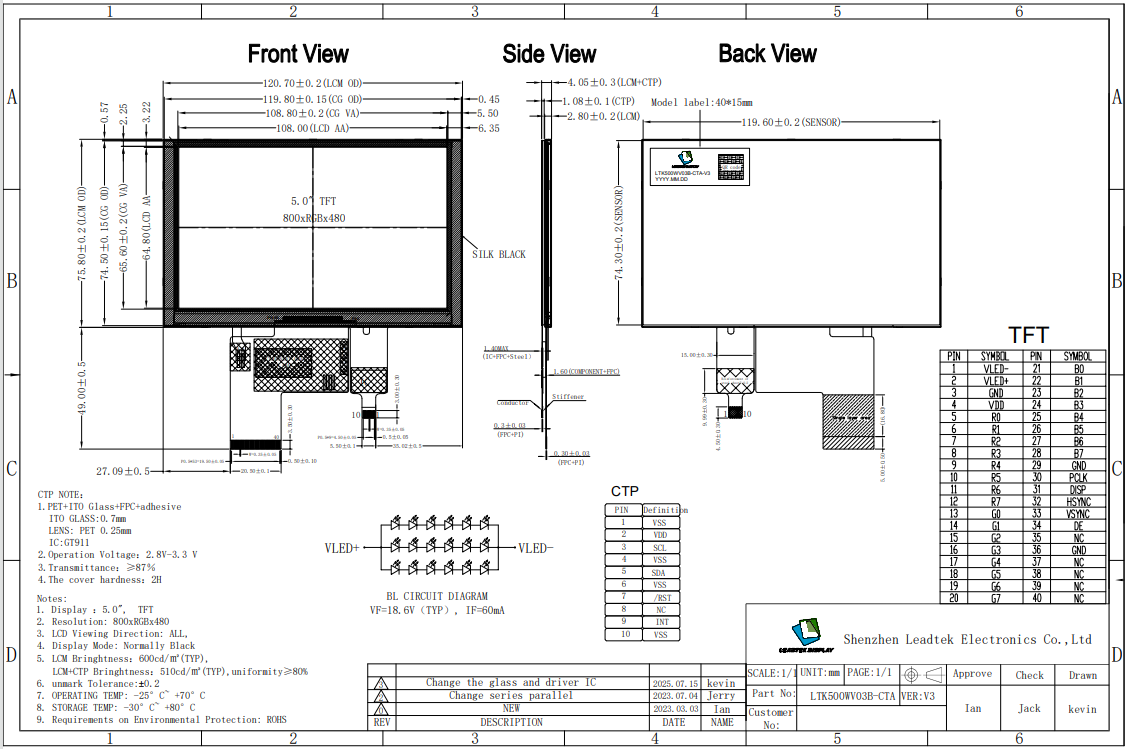

Outline Dimension(LCM+CTP)mm |
120.7*75.80*4.05 |
|
Active Area(mm) |
108.0*64.8 |
|
luminance |
510 |
|
interface |
RGB |
|
Expandable interface |
LVDS |
| Touch Screen | CTP |
|
Touch screen structure |
CG |
|
Touch screen IC model |
GT911 |
|
Touch screen interface |
IIC |
|
Operating Temp |
-25~+70℃ |
|
Storage Temp |
-30~+80℃ |
