RGB Interface 800*480 Resolution 5 Inch Wide Temperature tft lcd display for Smart Home

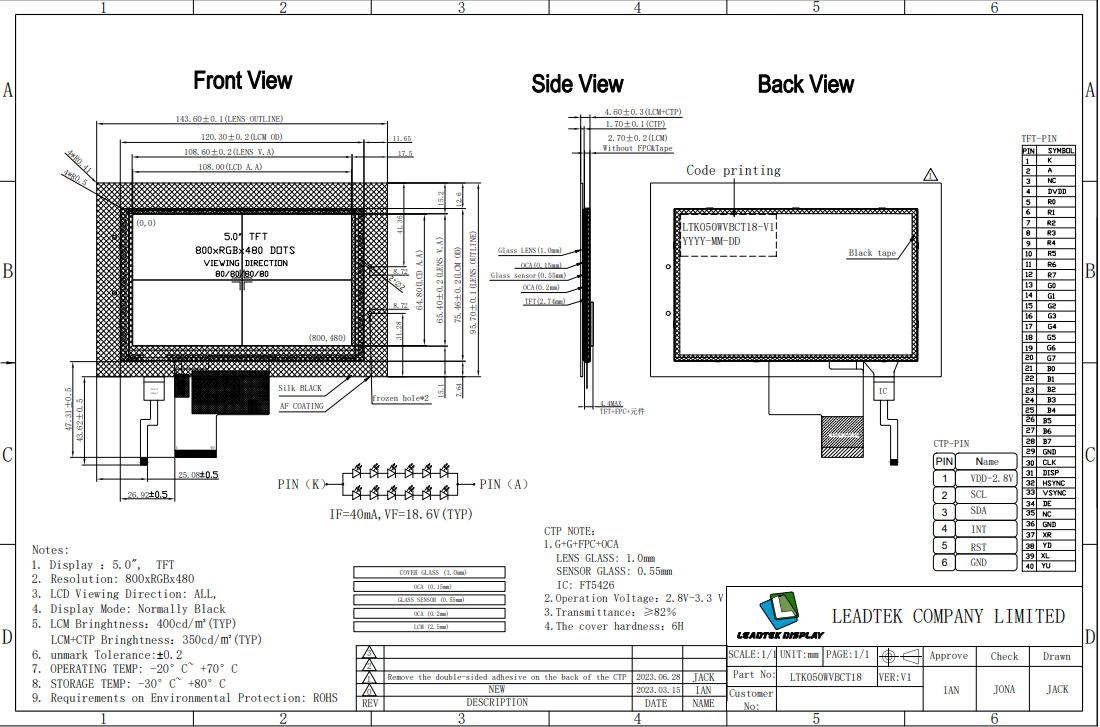

LTK050WVBCT18-V1 5.0-inch display features an IPS panel with a high resolution of 800*480 pixels and an RGB interface, delivering vibrant and sharp visuals. The active area measures 108.00(W)×64.80(H) mm, with overall dimensions of 143.60(W)×95.70(H)×4.60(T) mm. This display includes a capacitive touch panel (CTP) and operates within a temperature range of -20℃ to +70℃.
- Product Details
| Size(inch) | 5.0 |
| Mode |
LTK050WVBCT18-V1 |
|
Display Mode |
IPS |
|
Resolution |
800*480 |
|
Interface |
24bit RGB |
|
Expandable interface |
LVDS |
|
Brightness |
350 cd/㎡ |
|
Active Area(mm) |
108.00×64.80 |
|
Outline Dimension(mm) |
143.60×95.70×4.60 |
|
Touch Screen |
CTP |
|
Touch screen structure |
G+G |
|
Touch screen IC model |
FT5426 |
|
Touch screen interface |
IIC |
|
Operating Temp |
-20~+70℃ |
|
Storage Temp |
-30~+80℃ |
