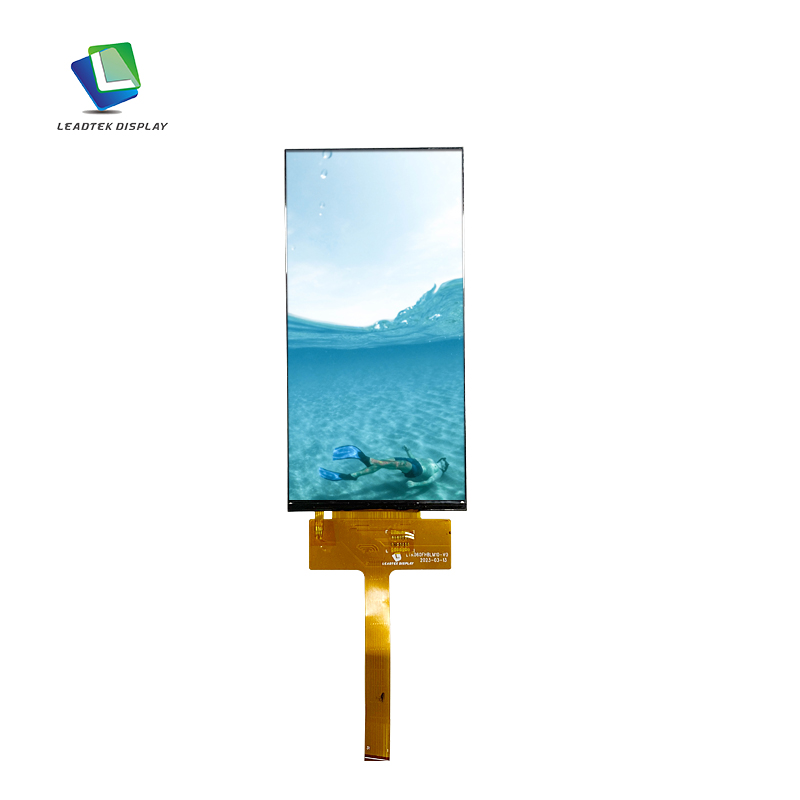

6.0 inch 1080×2160 Standard Color TFT LCD Display Module
LTK060FHBLM10-V0 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD and a driving circuit.This TFT LCD has a 6 inch diagonally measured active display area with (1080*2160 vertical pixel) resolution.(J)
This model is composed of a TFT LCD and a driving circuit.This TFT LCD has a 6 inch diagonally measured active display area with (1080*2160 vertical pixel) resolution.(J)
- Product Details
|
Part Number. |
LTK060FHBLM10-V0 |
|
Size(inch) |
5.99 |
|
Display Mode |
IPS |
|
Resolution |
1080*2160 |
|
Interface |
MIPI |
|
Luminance(cd/m²) |
650 |
|
Active Area(mm) |
68.04*136.08 |
|
Outline Dimention(mm) |
70.24*142.28*1.6 |
|
Module IC Model |
XM91080G-CINC |
|
Operating Temp |
-20℃-70℃ |
|
Storage Temp |
-30~+80℃ |
Get A Quote
If you are interested in our products and want to know more details. please leave a message here. we will reply you as soon as we can.
